10
Product specifications subject to change without notice. Please check vibia.com for updated information.
Circus is defined by its minimalist structure and signature
conductive bar, delicately balanced by opposing elements to
create a festival of light. A creative toolkit full of possibilities to
explore and enjoy that offers total freedom of composition, multiple
components and a myriad of diffuse and accented lighting effects.
Design by Antoni Arola

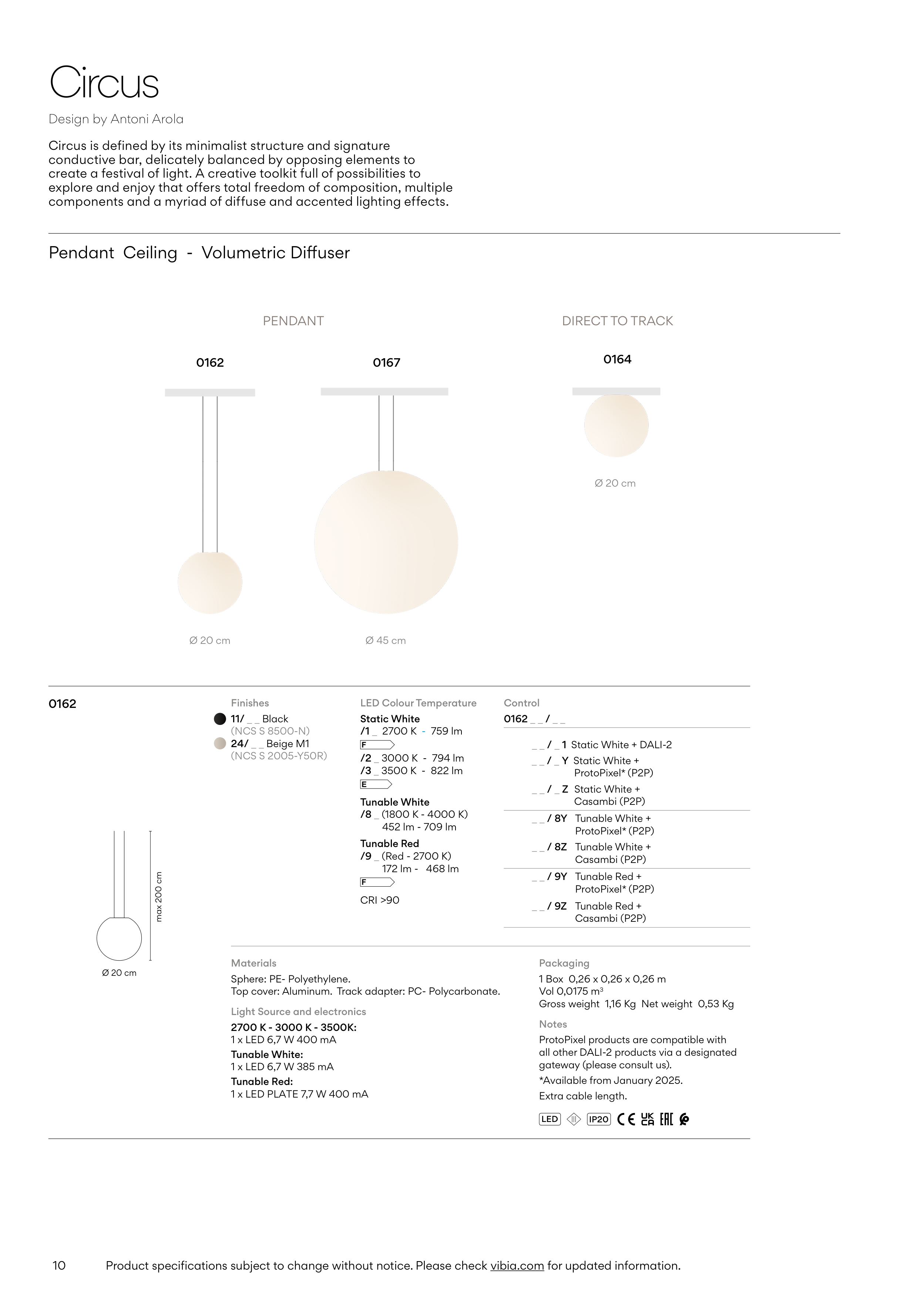

Circus
Pendant Ceiling - Volumetric Diffuser
DIRECT TO TRACK
0164
Ø 20 cm
0167
0162
Ø 20 cm
Ø 45 cm
PENDANT
0162 _ _ / _ _
_ _ / _ 1 Static White + DALI-2
_ _ / _ Y Static White +
ProtoPixel* (P2P)
_ _ / _ Z Static White +
Casambi (P2P)
_ _ / 8Y Tunable White +
ProtoPixel* (P2P)
_ _ / 8Z Tunable White +
Casambi (P2P)
_ _ / 9Y Tunable Red +
ProtoPixel* (P2P)
_ _ / 9Z Tunable Red +
Casambi (P2P)
0162
LED Colour Temperature
Static White
/1 _ 2700 K - 759 lm
F
/2 _ 3000 K - 794 lm
/3 _ 3500 K - 822 lm
E
Tunable White
/8 _ (1800 K - 4000 K)
452 lm - 709 lm
Tunable Red
/9 _ (Red - 2700 K)
172 lm - 468 lm
F
CRI >90
Finishes
11/ _ _ Black
(NCS S 8500-N)
24/ _ _ Beige M1
(NCS S 2005-Y50R)
Control
Packaging
1 Box 0,26 x 0,26 x 0,26 m
Vol 0,0175 m3
Gross weight 1,16 Kg Net weight 0,53 Kg
Materials
Sphere: PE- Polyethylene.
Top cover: Aluminum. Track adapter: PC- Polycarbonate.
Light Source and electronics
2700 K - 3000 K - 3500K:
1 x LED 6,7 W 400 mA
Tunable White:
1 x LED 6,7 W 385 mA
Tunable Red:
1 x LED PLATE 7,7 W 400 mA
Ø 20 cm
max 200 cm
IP20
LED
Notes
ProtoPixel products are compatible with
all other DALI-2 products via a designated
gateway (please consult us).
*Available from January 2025.
Extra cable length.
