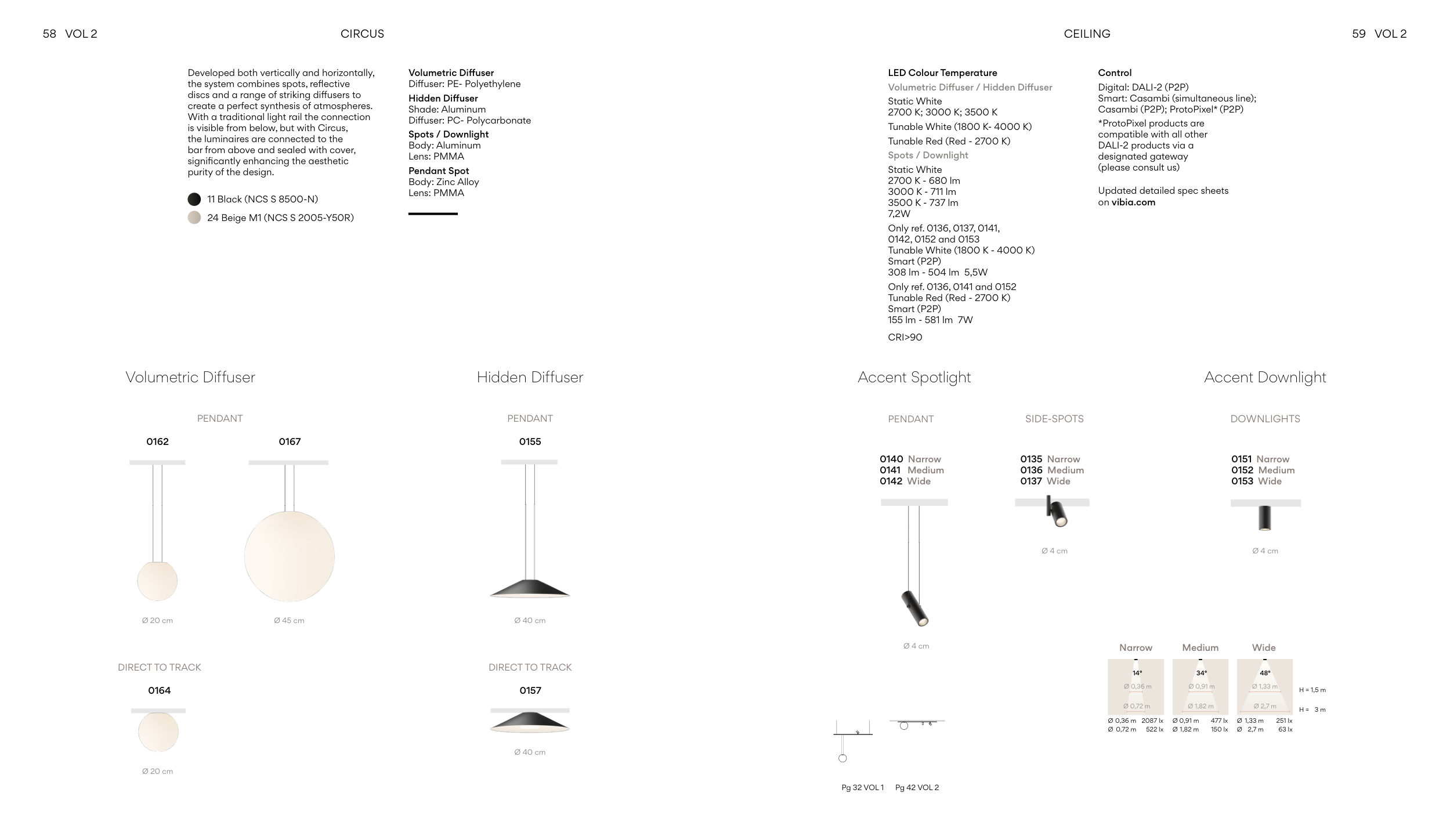

58 VOL 2
59 VOL 2
CIRCUS
CEILING
Volumetric Diffuser
Diffuser: PE- Polyethylene
Hidden Diffuser
Shade: Aluminum
Diffuser: PC- Polycarbonate
Spots / Downlight
Body: Aluminum
Lens: PMMA
Pendant Spot
Body: Zinc Alloy
Lens: PMMA
Developed both vertically and horizontally,
the system combines spots, reflective
discs and a range of striking diffusers to
create a perfect synthesis of atmospheres.
With a traditional light rail the connection
is visible from below, but with Circus,
the luminaires are connected to the
bar from above and sealed with cover,
significantly enhancing the aesthetic
purity of the design.
11 Black (NCS S 8500-N)
24 Beige M1 (NCS S 2005-Y50R)
LED Colour Temperature
Volumetric Diffuser / Hidden Diffuser
Static White
2700 K; 3000 K; 3500 K
Tunable White (1800 K- 4000 K)
Tunable Red (Red - 2700 K)
Spots / Downlight
Static White
2700 K - 680 lm
3000 K - 711 lm
3500 K - 737 lm
7,2W
Only ref. 0136, 0137, 0141,
0142, 0152 and 0153
Tunable White (1800 K - 4000 K)
Smart (P2P)
308 lm - 504 lm 5,5W
Only ref. 0136, 0141 and 0152
Tunable Red (Red - 2700 K)
Smart (P2P)
155 lm - 581 lm 7W
CRI>90
Control
Digital: DALI-2 (P2P)
Smart: Casambi (simultaneous line);
Casambi (P2P); ProtoPixel* (P2P)
*ProtoPixel products are
compatible with all other
DALI-2 products via a
designated gateway
(please consult us)
Pg 32 VOL 1
Pg 42 VOL 2
Updated detailed spec sheets
on vibia.com
Volumetric Diffuser
0167
DIRECT TO TRACK
0162
Ø 20 cm
Ø 45 cm
0164
Ø 20 cm
PENDANT
0155
DIRECT TO TRACK
0157
Ø 40 cm
PENDANT
Hidden Diffuser
Ø 40 cm
Ø 0,36 m 2087 lx
Ø 0,72 m
522 lx
14°
Ø 0,36 m
Ø 0,72 m
Ø 0,91 m
477 lx
Ø 1,82 m
150 lx
34°
Ø 0,91 m
Ø 1,82 m
Ø 1,33 m
251 lx
Ø 2,7 m
63 lx
48°
Ø 1,33 m
Ø 2,7 m
H = 1,5 m
H = 3 m
Medium
Narrow
Wide
Accent Downlight
Accent Spotlight
SIDE-SPOTS
PENDANT
Ø 4 cm
0140 Narrow
0141 Medium
0142 Wide
0135 Narrow
0136 Medium
0137 Wide
DOWNLIGHTS
Ø 4 cm
0151 Narrow
0152 Medium
0153 Wide
Ø 4 cm
