84 VOL 2
85 VOL 2

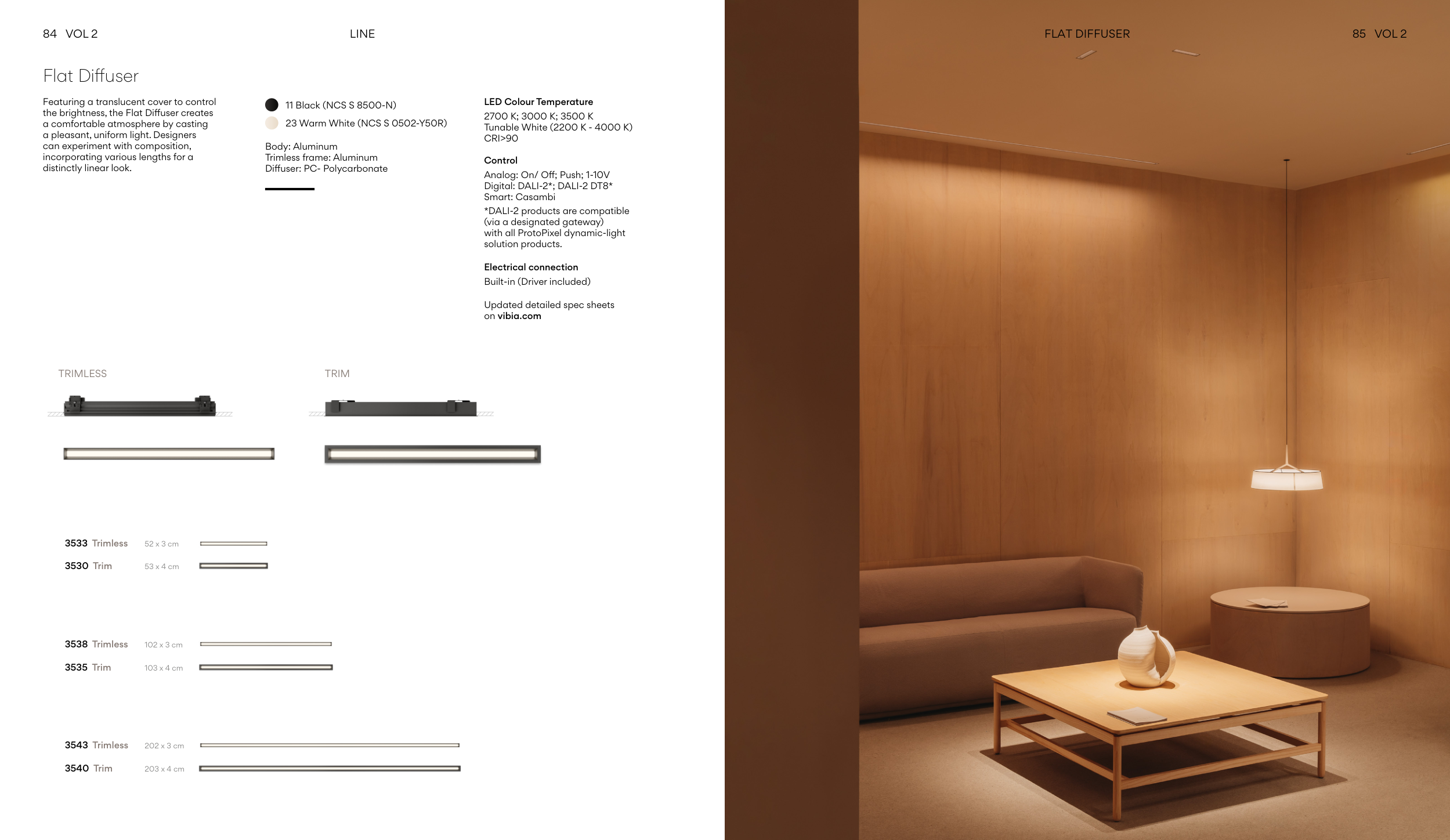

Flat Diffuser
Featuring a translucent cover to control
the brightness, the Flat Diffuser creates
a comfortable atmosphere by casting
a pleasant, uniform light. Designers
can experiment with composition,
incorporating various lengths for a
distinctly linear look.
Body: Aluminum
Trimless frame: Aluminum
Diffuser: PC- Polycarbonate
LED Colour Temperature
2700 K; 3000 K; 3500 K
Tunable White (2200 K - 4000 K)
CRI>90
Control
Analog: On/ Off; Push; 1-10V
Digital: DALI-2*; DALI-2 DT8*
Smart: Casambi
*DALI-2 products are compatible
(via a designated gateway)
with all ProtoPixel dynamic-light
solution products.
11 Black (NCS S 8500-N)
23 Warm White (NCS S 0502-Y50R)
LINE
FLAT DIFFUSER
3538 Trimless
3543 Trimless
3535 Trim
3540 Trim
3530 Trim
53 x 4 cm
103 x 4 cm
203 x 4 cm
3533 Trimless
52 x 3 cm
102 x 3 cm
202 x 3 cm
TRIMLESS
TRIM
Updated detailed spec sheets
on vibia.com
Electrical connection
Built-in (Driver included)
