32 VOL 2
CIRCLE

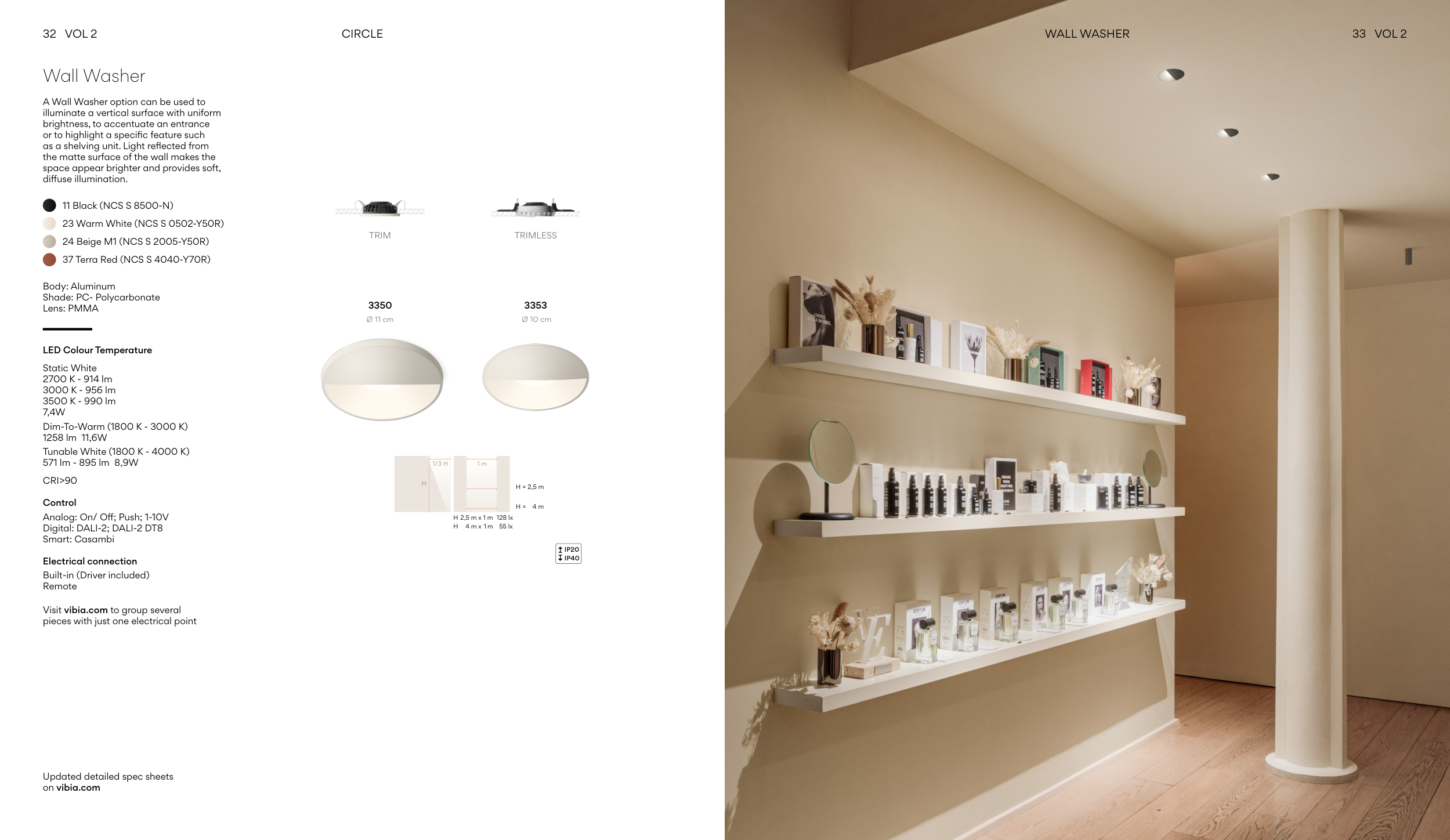

Wall Washer
A Wall Washer option can be used to
illuminate a vertical surface with uniform
brightness, to accentuate an entrance
or to highlight a specific feature such
as a shelving unit. Light reflected from
the matte surface of the wall makes the
space appear brighter and provides soft,
diffuse illumination.
Body: Aluminum
Shade: PC- Polycarbonate
Lens: PMMA
11 Black (NCS S 8500-N)
23 Warm White (NCS S 0502-Y50R)
24 Beige M1 (NCS S 2005-Y50R)
37 Terra Red (NCS S 4040-Y70R)
LED Colour Temperature
Static White
2700 K - 914 lm
3000 K - 956 lm
3500 K - 990 lm
7,4W
Dim-To-Warm (1800 K - 3000 K)
1258 lm 11,6W
Tunable White (1800 K - 4000 K)
571 lm - 895 lm 8,9W
CRI>90
Control
Analog: On/ Off; Push; 1-10V
Digital: DALI-2; DALI-2 DT8
Smart: Casambi
Electrical connection
Built-in (Driver included)
Remote
WALL WASHER
Visit vibia.com to group several
pieces with just one electrical point
TRIM
TRIMLESS
3350
3353
Ø 11 cm
Ø 10 cm
H 2,5 m x 1 m 128 lx
H 4 m x 1 m 55 lx
H
1/3 H
1 m
H = 2,5 m
H = 4 m
33 VOL 2
Updated detailed spec sheets
on vibia.com
IP40
IP20
