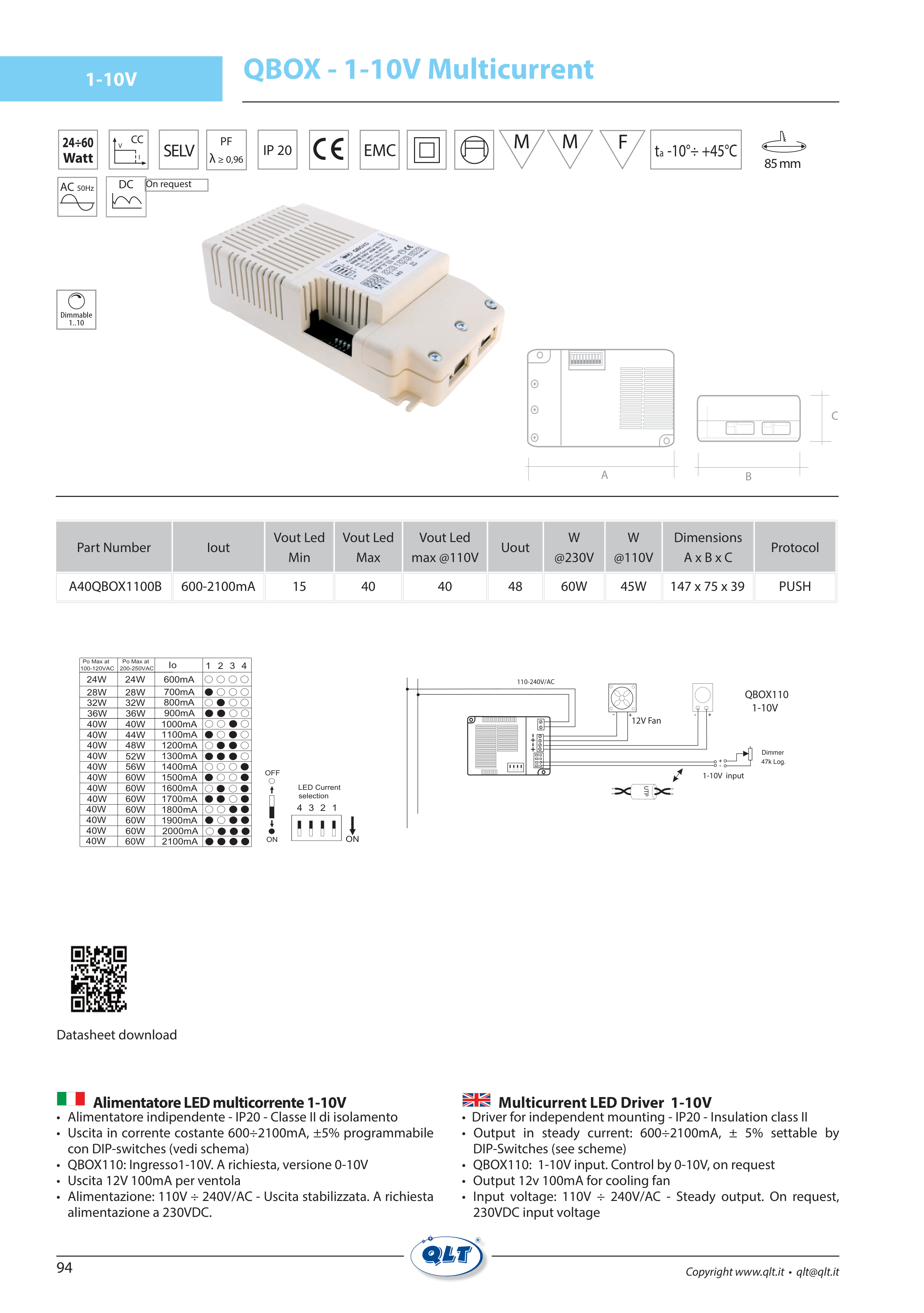

QBOX - 1-10V Multicurrent
1-10V
PF
λ ≥ 0,96
IP 20
EMC
M
M
F
85 mm
Alimentatore LED multicorrente 1-10V
• Alimentatore indipendente - IP20 - Classe II di isolamento
• Uscita in corrente costante 600÷2100mA, ±5% programmabile
con DIP-switches (vedi schema)
• QBOX110: Ingresso1-10V. A richiesta, versione 0-10V
• Uscita 12V 100mA per ventola
• Alimentazione: 110V ÷ 240V/AC - Uscita stabilizzata. A richiesta
alimentazione a 230VDC.
Multicurrent LED Driver 1-10V
• Driver for independent mounting - IP20 - Insulation class II
• Output in steady current: 600÷2100mA, ± 5% settable by
DIP-Switches (see scheme)
• QBOX110: 1-10V input. Control by 0-10V, on request
• Output 12v 100mA for cooling fan
• Input voltage: 110V ÷ 240V/AC - Steady output. On request,
230VDC input voltage
24÷60
Watt
V
I
CC
ta -10°÷ +45°C
Io
40W
36W
32W
28W
24W
1000mA
900mA
800mA
700mA
600mA
1100mA
1300mA
1200mA
1500mA
1600mA
1700mA
1800mA
1900mA
2000mA
2100mA
1400mA
Po Max at
100-120VAC
Po Max at
200-250VAC
40W
36W
32W
28W
24W
44W
52W
48W
56W
60W
60W
60W
60W
60W
60W
60W
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
1 2 3 4
ON
OFF
1
2
3
4
ON
LED Current
selection
Dimmable
1..10
B
A
C
On request
DC
AC 50Hz
SELV
110-240V/AC
+ +
-
-
-
-
-
+
+
+
1-10V input
12V Fan
QBOX110
1-10V
47k Log.
Dimmer
UTP
Datasheet download
Part Number
Iout
Vout Led
Min
Vout Led
Max
Vout Led
max @110V
Uout
W
@230V
W
@110V
Dimensions
A x B x C
Protocol
A40QBOX1100B
600-2100mA
15
40
40
48
60W
45W
147 x 75 x 39
PUSH
