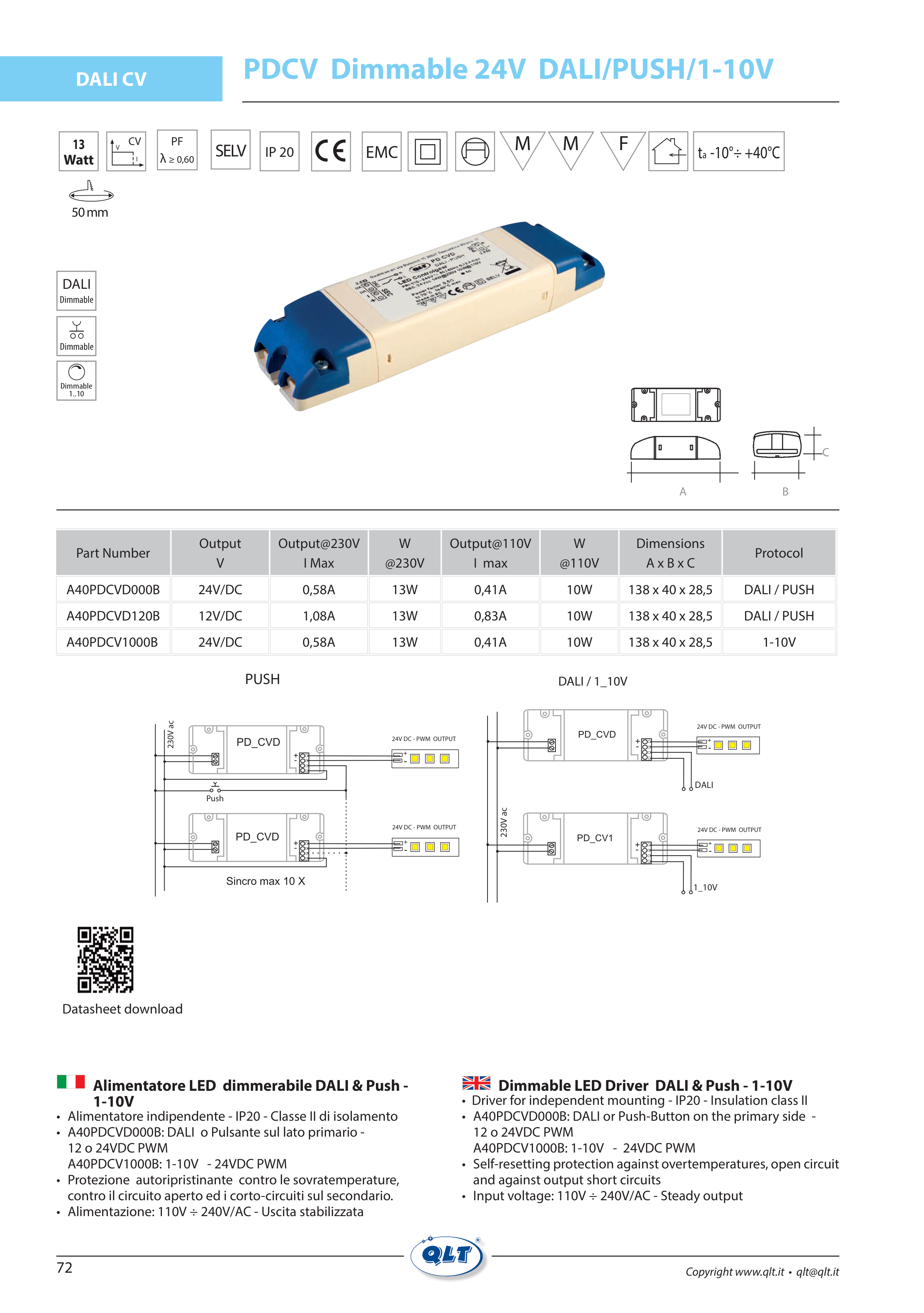

DALI CV
PDCV Dimmable 24V DALI/PUSH/1-10V
Alimentatore LED dimmerabile DALI & Push -
1-10V
• Alimentatore indipendente - IP20 - Classe II di isolamento
• A40PDCVD000B: DALI o Pulsante sul lato primario -
12 o 24VDC PWM
A40PDCV1000B: 1-10V - 24VDC PWM
• Protezione autoripristinante contro le sovratemperature,
contro il circuito aperto ed i corto-circuiti sul secondario.
• Alimentazione: 110V ÷ 240V/AC - Uscita stabilizzata
Dimmable LED Driver DALI & Push - 1-10V
• Driver for independent mounting - IP20 - Insulation class II
• A40PDCVD000B: DALI or Push-Button on the primary side -
12 o 24VDC PWM
A40PDCV1000B: 1-10V - 24VDC PWM
• Self-resetting protection against overtemperatures, open circuit
and against output short circuits
• Input voltage: 110V ÷ 240V/AC - Steady output
PF
λ ≥ 0,60
IP 20
EMC
M
M
F
50 mm
13
Watt
Dimmable
ta -10°÷ +40°C
DALI
Dimmable
A
B
C
SELV
V
I
CV
Dimmable
1..10
Part Number
Output
V
Output@230V
I Max
W
@230V
Output@110V
I max
W
@110V
Dimensions
A x B x C
Protocol
A40PDCVD000B
24V/DC
0,58A
13W
0,41A
10W
138 x 40 x 28,5
DALI / PUSH
A40PDCVD120B
12V/DC
1,08A
13W
0,83A
10W
138 x 40 x 28,5
DALI / PUSH
A40PDCV1000B
24V/DC
0,58A
13W
0,41A
10W
138 x 40 x 28,5
1-10V
DALI / 1_10V
PUSH
230V ac
1_10V
DALI
Push
-
-
-
-
+
+
+
+
Sincro max 10 X
PD_CVD
PD_CVD
PD_CV1
PD_CVD
230V ac
24V DC - PWM OUTPUT
24V DC - PWM OUTPUT
24V DC - PWM OUTPUT
24V DC - PWM OUTPUT
+
+
+
+
-
-
-
-
