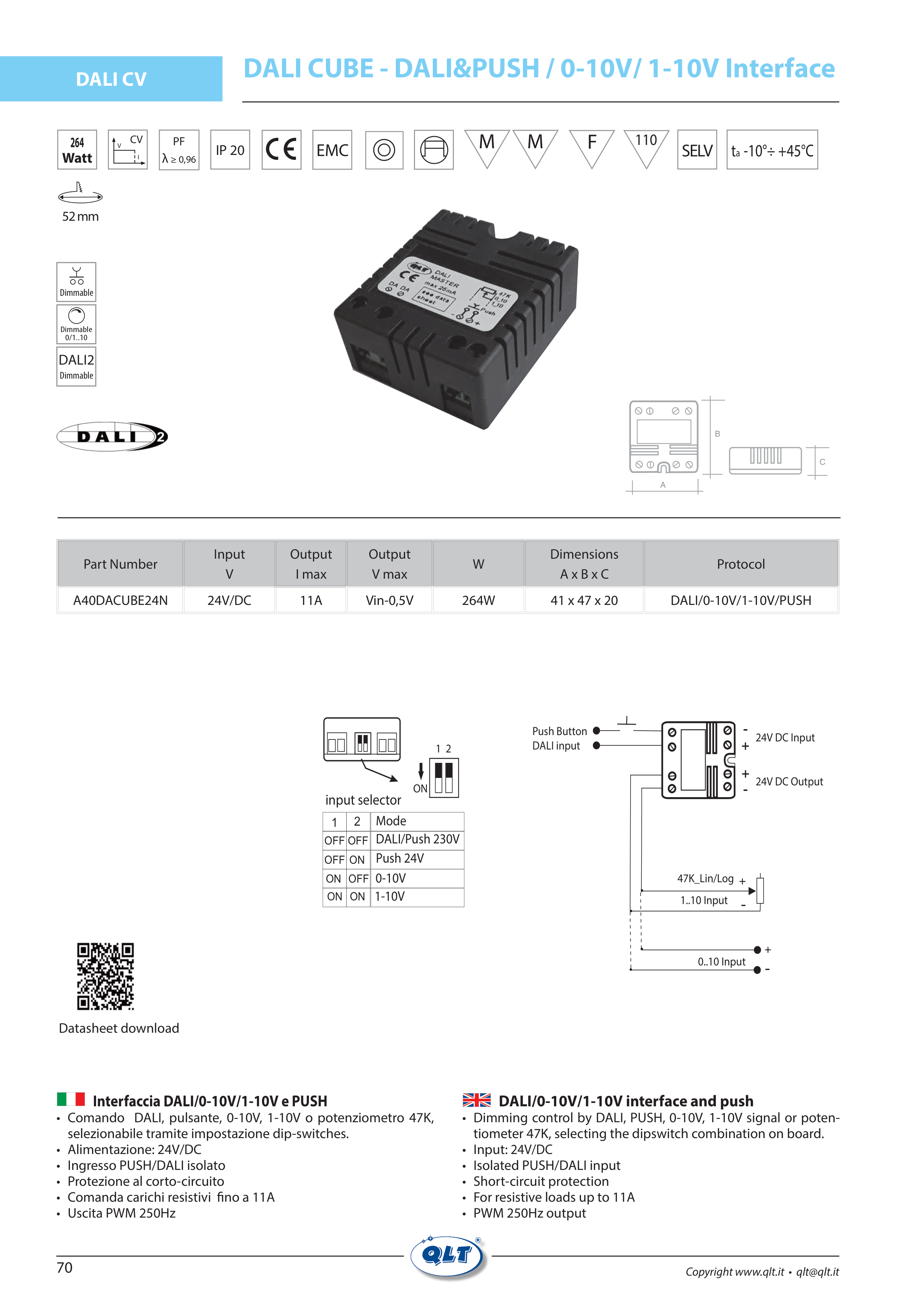

DALI CUBE - DALI&PUSH / 0-10V/ 1-10V Interface
DALI CV
PF
λ ≥ 0,96
IP 20
A
B
C
EMC
M
M
F
52 mm
110
Interfaccia DALI/0-10V/1-10V e PUSH
• Comando DALI, pulsante, 0-10V, 1-10V o potenziometro 47K,
selezionabile tramite impostazione dip-switches.
• Alimentazione: 24V/DC
• Ingresso PUSH/DALI isolato
• Protezione al corto-circuito
• Comanda carichi resistivi fino a 11A
• Uscita PWM 250Hz
DALI/0-10V/1-10V interface and push
• Dimming control by DALI, PUSH, 0-10V, 1-10V signal or poten-
tiometer 47K, selecting the dipswitch combination on board.
• Input: 24V/DC
• Isolated PUSH/DALI input
• Short-circuit protection
• For resistive loads up to 11A
• PWM 250Hz output
264
Watt
SELV
V
I
CV
Dimmable
Dimmable
0/1..10
DALI2
Dimmable
ta -10°÷ +45°C
1 2
ON
input selector
ON
ON
ON
ON
OFF
OFF
OFF
OFF
1
2
Mode
DALI/Push 230V
Push 24V
0-10V
1-10V
+
+
-
-
1..10 Input
0..10 Input
Push Button
DALI input
47K_Lin/Log
24V DC Input
24V DC Output
+
+
-
-
Part Number
Input
V
Output
I max
Output
V max
W
Dimensions
A x B x C
Protocol
A40DACUBE24N
24V/DC
11A
Vin-0,5V
264W
41 x 47 x 20
DALI/0-10V/1-10V/PUSH
Datasheet download
