68

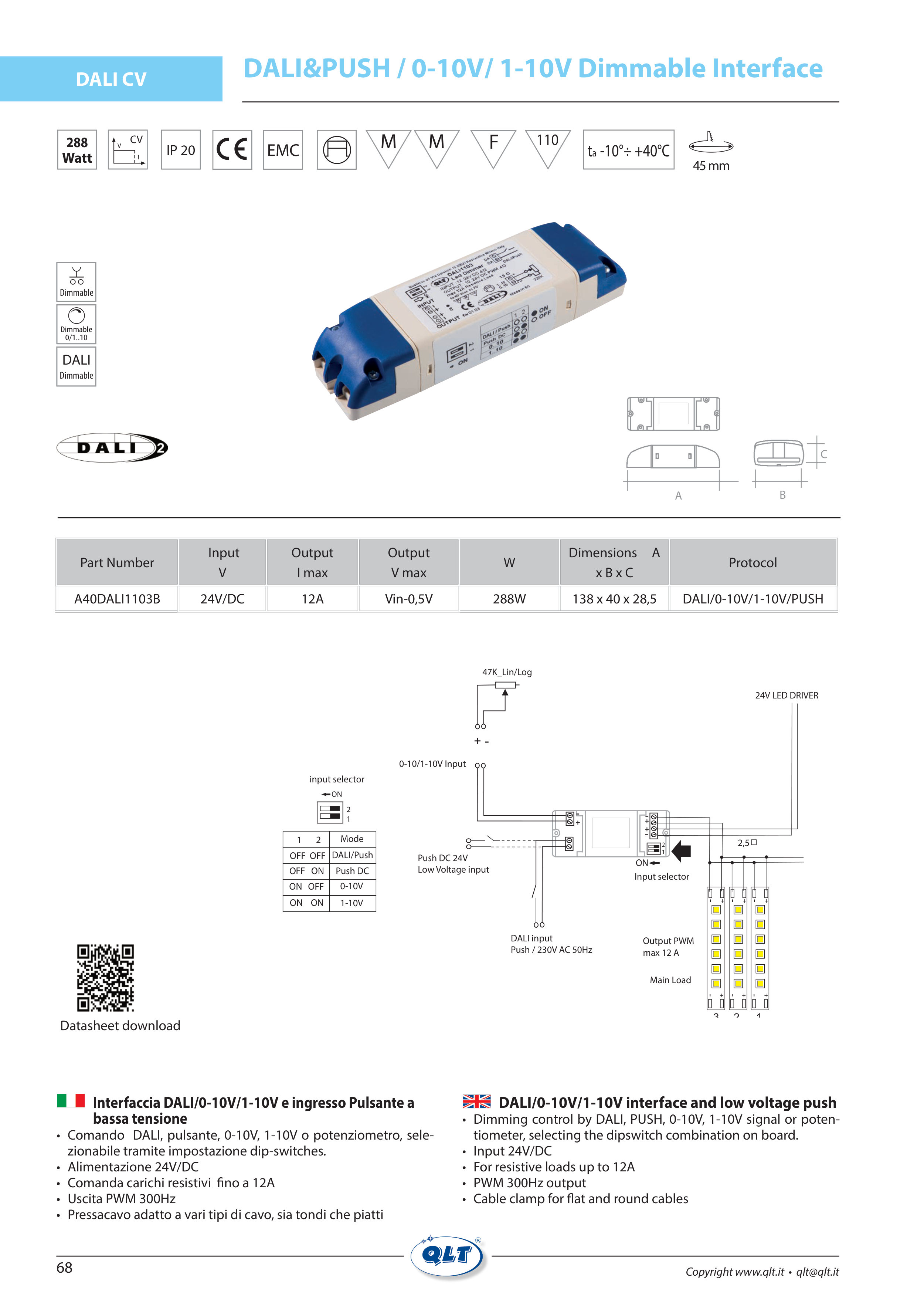

DALI&PUSH / 0-10V/ 1-10V Dimmable Interface
DALI CV
IP 20
C
A
B
EMC
M
M
F
110
Interfaccia DALI/0-10V/1-10V e ingresso Pulsante a
bassa tensione
• Comando DALI, pulsante, 0-10V, 1-10V o potenziometro, sele-
zionabile tramite impostazione dip-switches.
• Alimentazione 24V/DC
• Comanda carichi resistivi fino a 12A
• Uscita PWM 300Hz
• Pressacavo adatto a vari tipi di cavo, sia tondi che piatti
DALI/0-10V/1-10V interface and low voltage push
• Dimming control by DALI, PUSH, 0-10V, 1-10V signal or poten-
tiometer, selecting the dipswitch combination on board.
• Input 24V/DC
• For resistive loads up to 12A
• PWM 300Hz output
• Cable clamp for flat and round cables
288
Watt
V
I
CV
Dimmable
Dimmable
0/1..10
DALI
Dimmable
ta -10°÷ +40°C
Output PWM
max 12 A
Main Load
2,5
-
-
-
+
+
+
+
+
-
-
+
+
-
-
+
+
-
-
0-10/1-10V Input
Push DC 24V
Low Voltage input
47K_Lin/Log
DALI input
Push / 230V AC 50Hz
2
1
2
1
ON
ON
Input selector
input selector
1
2
3
+ -
1 2
Mode
DALI/Push
Push DC
OFF OFF
OFF ON
ON OFF
ON ON
0-10V
1-10V
24V LED DRIVER
45 mm
Datasheet download
Part Number
Input
V
Output
I max
Output
V max
W
Dimensions A
x B x C
Protocol
A40DALI1103B
24V/DC
12A
Vin-0,5V
288W
138 x 40 x 28,5
DALI/0-10V/1-10V/PUSH
