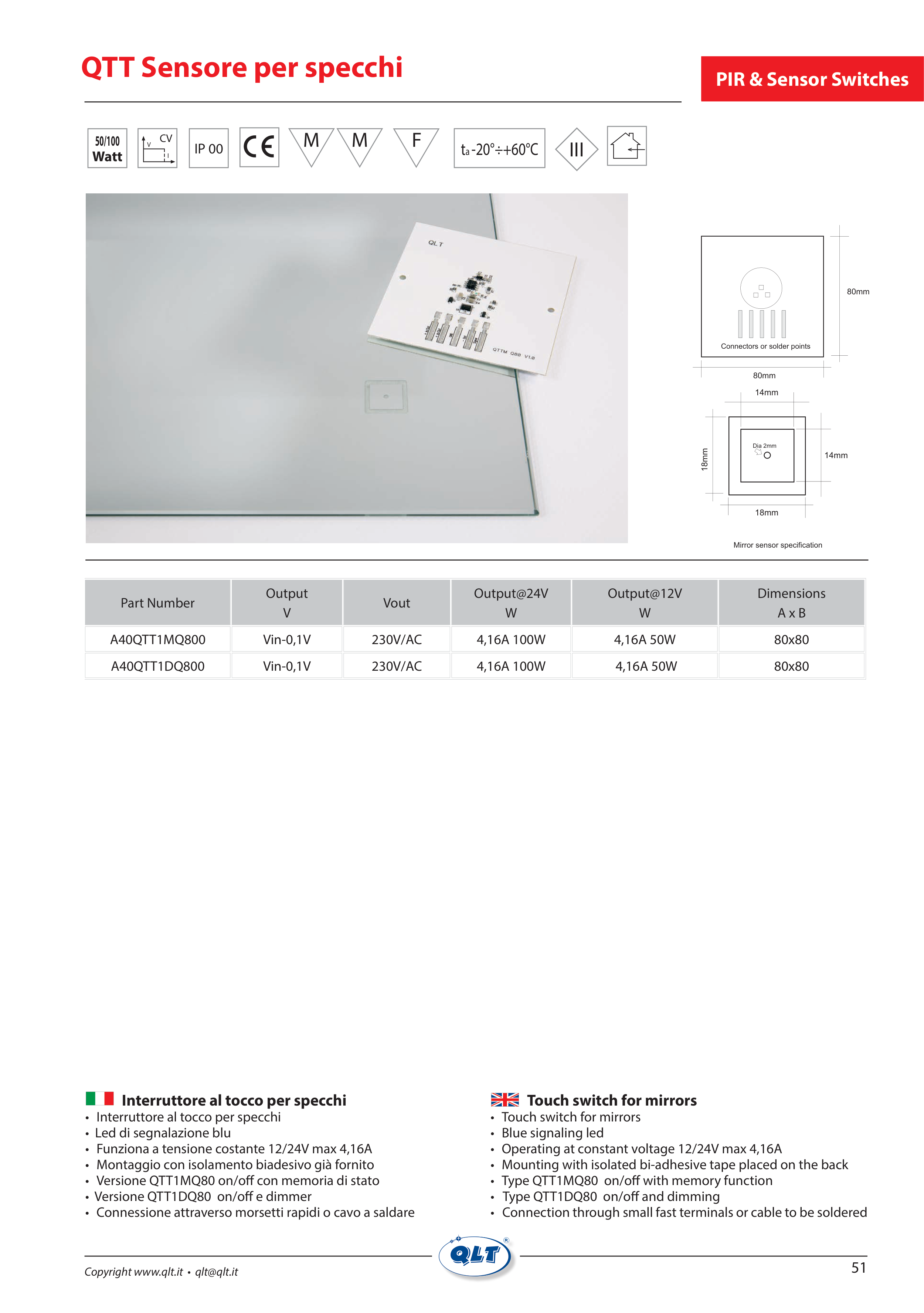

QTT Sensore per specchi
PIR & Sensor Switches
Interruttore al tocco per specchi
• Interruttore al tocco per specchi
• Led di segnalazione blu
• Funziona a tensione costante 12/24V max 4,16A
• Montaggio con isolamento biadesivo già fornito
• Versione QTT1MQ80 on/off con memoria di stato
• Versione QTT1DQ80 on/off e dimmer
• Connessione attraverso morsetti rapidi o cavo a saldare
Touch switch for mirrors
• Touch switch for mirrors
• Blue signaling led
• Operating at constant voltage 12/24V max 4,16A
• Mounting with isolated bi-adhesive tape placed on the back
• Type QTT1MQ80 on/off with memory function
• Type QTT1DQ80 on/off and dimming
• Connection through small fast terminals or cable to be soldered
50/100
Watt
ta -20°÷+60°C
M
M
F
IP 00
V
I
CV
III
Mirror sensor specification
Dia 2mm
14mm
14mm
18mm
18mm
Connectors or solder points
80mm
80mm
Part Number
Output
V
Vout
Output@24V
W
Output@12V
W
Dimensions
A x B
A40QTT1MQ800
Vin-0,1V
230V/AC
4,16A 100W
4,16A 50W
80x80
A40QTT1DQ800
Vin-0,1V
230V/AC
4,16A 100W
4,16A 50W
80x80
