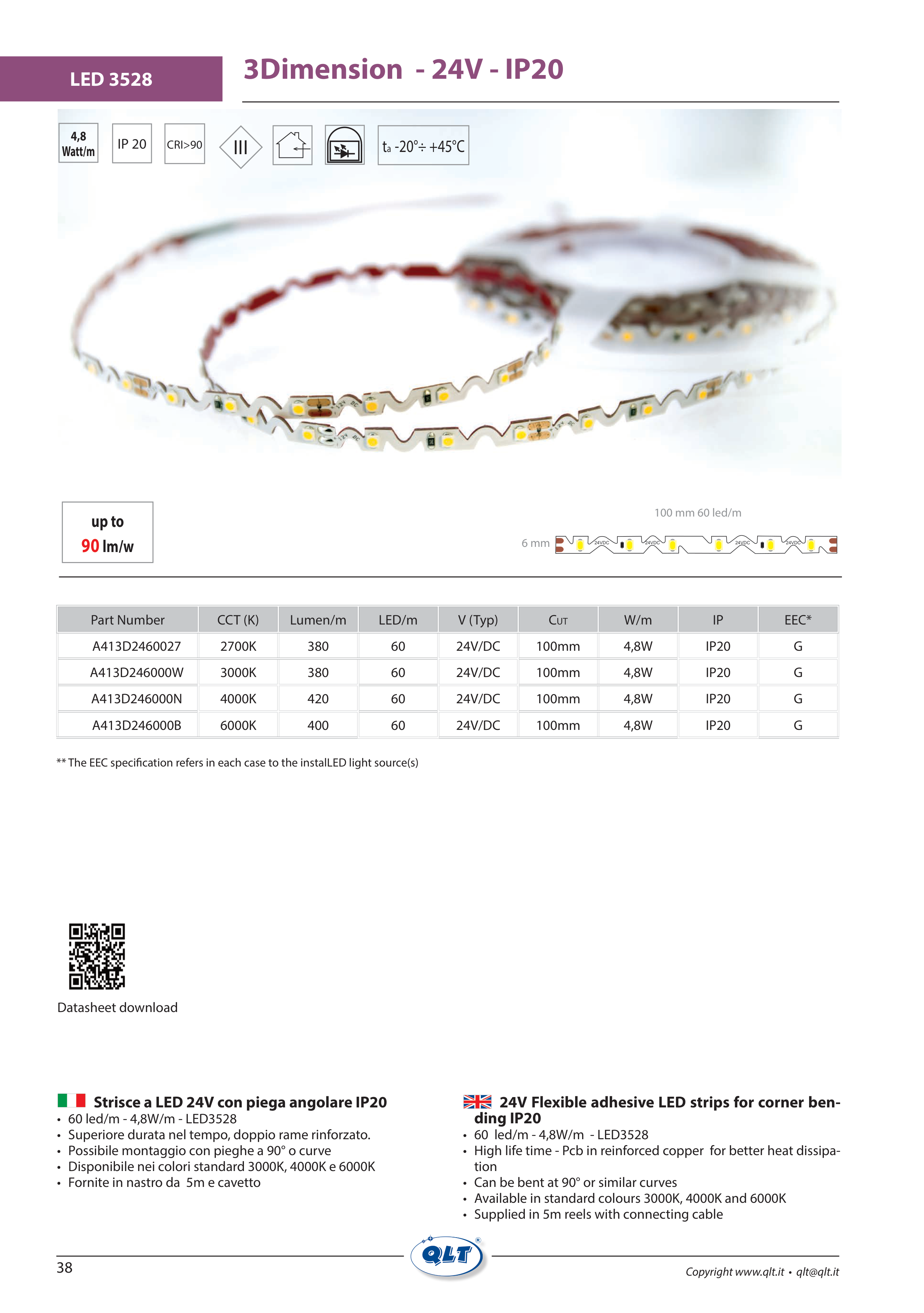

3Dimension - 24V - IP20
LED 3528
Strisce a LED 24V con piega angolare IP20
• 60 led/m - 4,8W/m - LED3528
• Superiore durata nel tempo, doppio rame rinforzato.
• Possibile montaggio con pieghe a 90° o curve
• Disponibile nei colori standard 3000K, 4000K e 6000K
• Fornite in nastro da 5m e cavetto
24V Flexible adhesive LED strips for corner ben-
ding IP20
• 60 led/m - 4,8W/m - LED3528
• High life time - Pcb in reinforced copper for better heat dissipa-
tion
• Can be bent at 90° or similar curves
• Available in standard colours 3000K, 4000K and 6000K
• Supplied in 5m reels with connecting cable
4,8
Watt/m
ta -20°÷ +45°C
CRI>90
IP 20
III
6 mm
100 mm 60 led/m
24VDC
24VDC
24VDC
24VDC
up to
90 lm/w
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A413D2460027
2700K
380
60
24V/DC
100mm
4,8W
IP20
G
A413D246000W
3000K
380
60
24V/DC
100mm
4,8W
IP20
G
A413D246000N
4000K
420
60
24V/DC
100mm
4,8W
IP20
G
A413D246000B
6000K
400
60
24V/DC
100mm
4,8W
IP20
G
** The EEC specification refers in each case to the instalLED light source(s)
