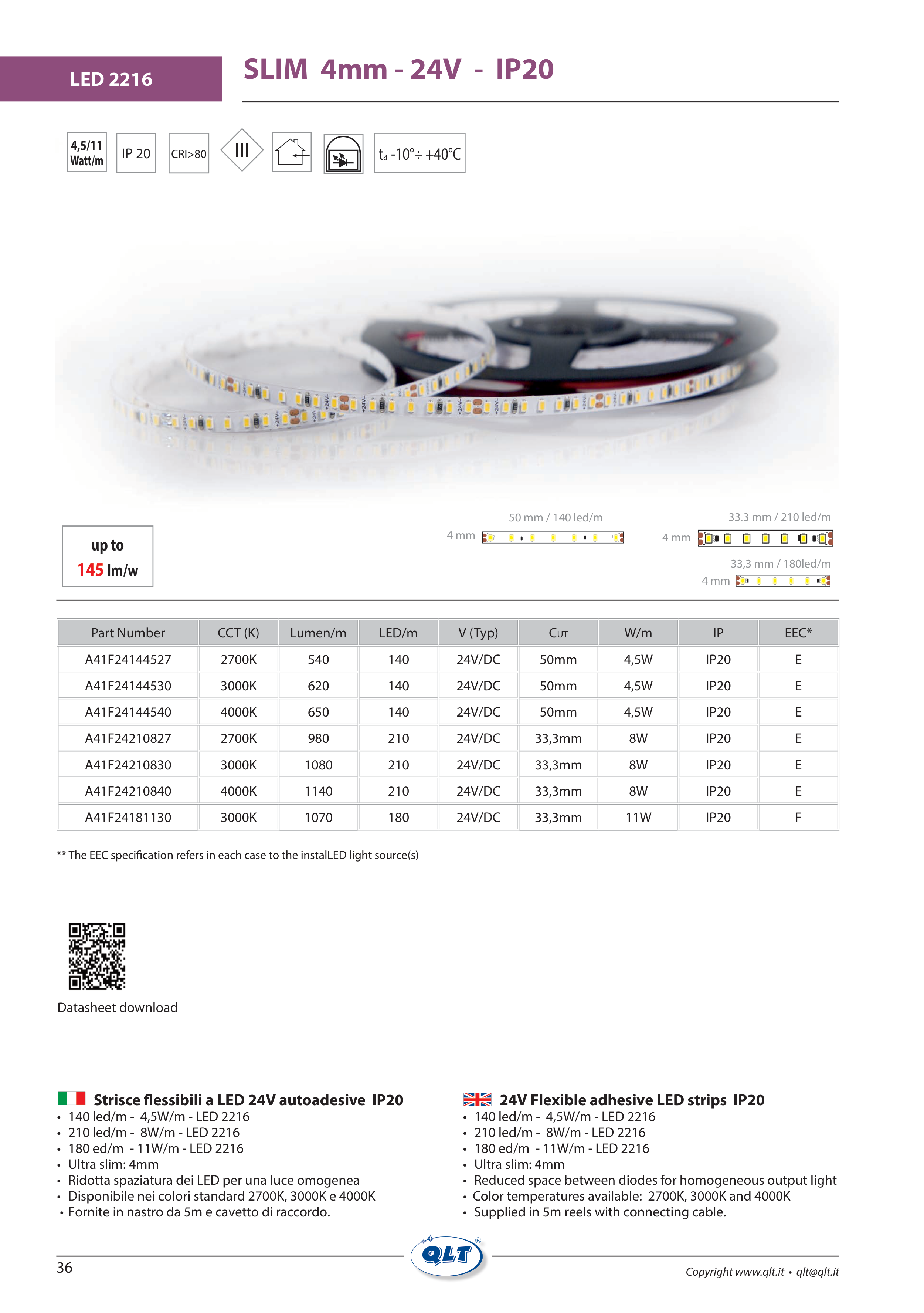

SLIM 4mm - 24V - IP20
LED 2216
Strisce flessibili a LED 24V autoadesive IP20
• 140 led/m - 4,5W/m - LED 2216
• 210 led/m - 8W/m - LED 2216
• 180 ed/m - 11W/m - LED 2216
• Ultra slim: 4mm
• Ridotta spaziatura dei LED per una luce omogenea
• Disponibile nei colori standard 2700K, 3000K e 4000K
• Fornite in nastro da 5m e cavetto di raccordo.
24V Flexible adhesive LED strips IP20
• 140 led/m - 4,5W/m - LED 2216
• 210 led/m - 8W/m - LED 2216
• 180 ed/m - 11W/m - LED 2216
• Ultra slim: 4mm
• Reduced space between diodes for homogeneous output light
• Color temperatures available: 2700K, 3000K and 4000K
• Supplied in 5m reels with connecting cable.
4,5/11
Watt/m
ta -10°÷ +40°C
CRI>80
4 mm
IP 20
III
33,3 mm / 210 led/m
33,3 mm / 180led/m
24VDC
24VDC
-
-
+
+
24VDC
24VDC
-
-
+
+
4 mm
up to
145 lm/w
4 mm
50 mm / 140 led/m
24VDC
24VDC
-
-
+
+
Datasheet download
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41F24144527
2700K
540
140
24V/DC
50mm
4,5W
IP20
E
A41F24144530
3000K
620
140
24V/DC
50mm
4,5W
IP20
E
A41F24144540
4000K
650
140
24V/DC
50mm
4,5W
IP20
E
A41F24210827
2700K
980
210
24V/DC
33,3mm
8W
IP20
E
A41F24210830
3000K
1080
210
24V/DC
33,3mm
8W
IP20
E
A41F24210840
4000K
1140
210
24V/DC
33,3mm
8W
IP20
E
A41F24181130
3000K
1070
180
24V/DC
33,3mm
11W
IP20
F
** The EEC specification refers in each case to the instalLED light source(s)
