Copyright www.qlt.it • qlt@qlt.it
32

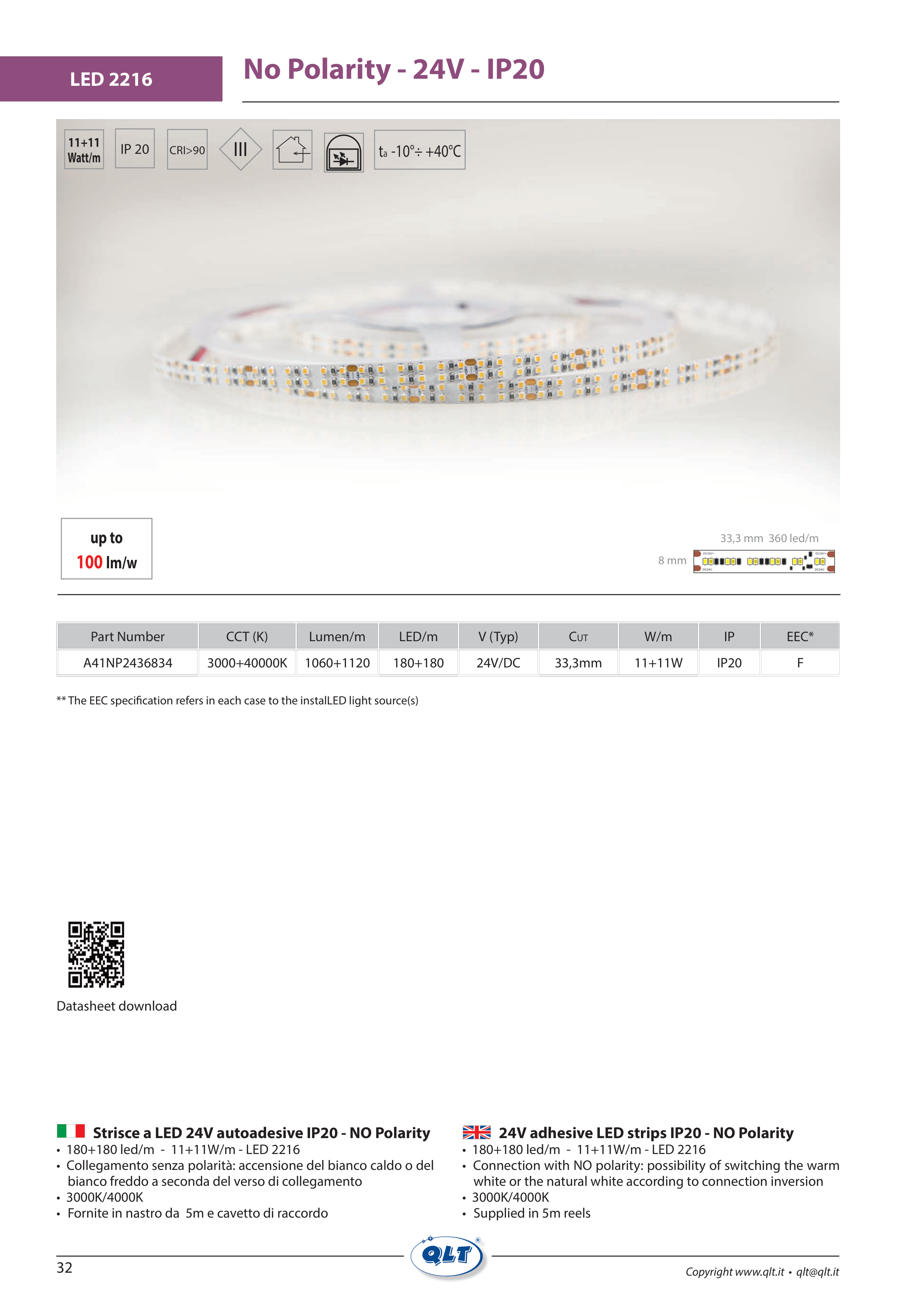

No Polarity - 24V - IP20
BALLAST
LED 2216
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41NP2436834
3000+40000K
1060+1120
180+180
24V/DC
33,3mm
11+11W
IP20
F
** The EEC specification refers in each case to the instalLED light source(s)
Strisce a LED 24V autoadesive IP20 - NO Polarity
• 180+180 led/m - 11+11W/m - LED 2216
• Collegamento senza polarità: accensione del bianco caldo o del
bianco freddo a seconda del verso di collegamento
• 3000K/4000K
• Fornite in nastro da 5m e cavetto di raccordo
24V adhesive LED strips IP20 - NO Polarity
• 180+180 led/m - 11+11W/m - LED 2216
• Connection with NO polarity: possibility of switching the warm
white or the natural white according to connection inversion
• 3000K/4000K
• Supplied in 5m reels
11+11
Watt/m
ta -10°÷ +40°C
IP 20
III
33,3 mm 360 led/m
8 mm
DC24V+
DC24V+
DC24V-
DC24V-
CRI>90
up to
100 lm/w
Datasheet download
