31

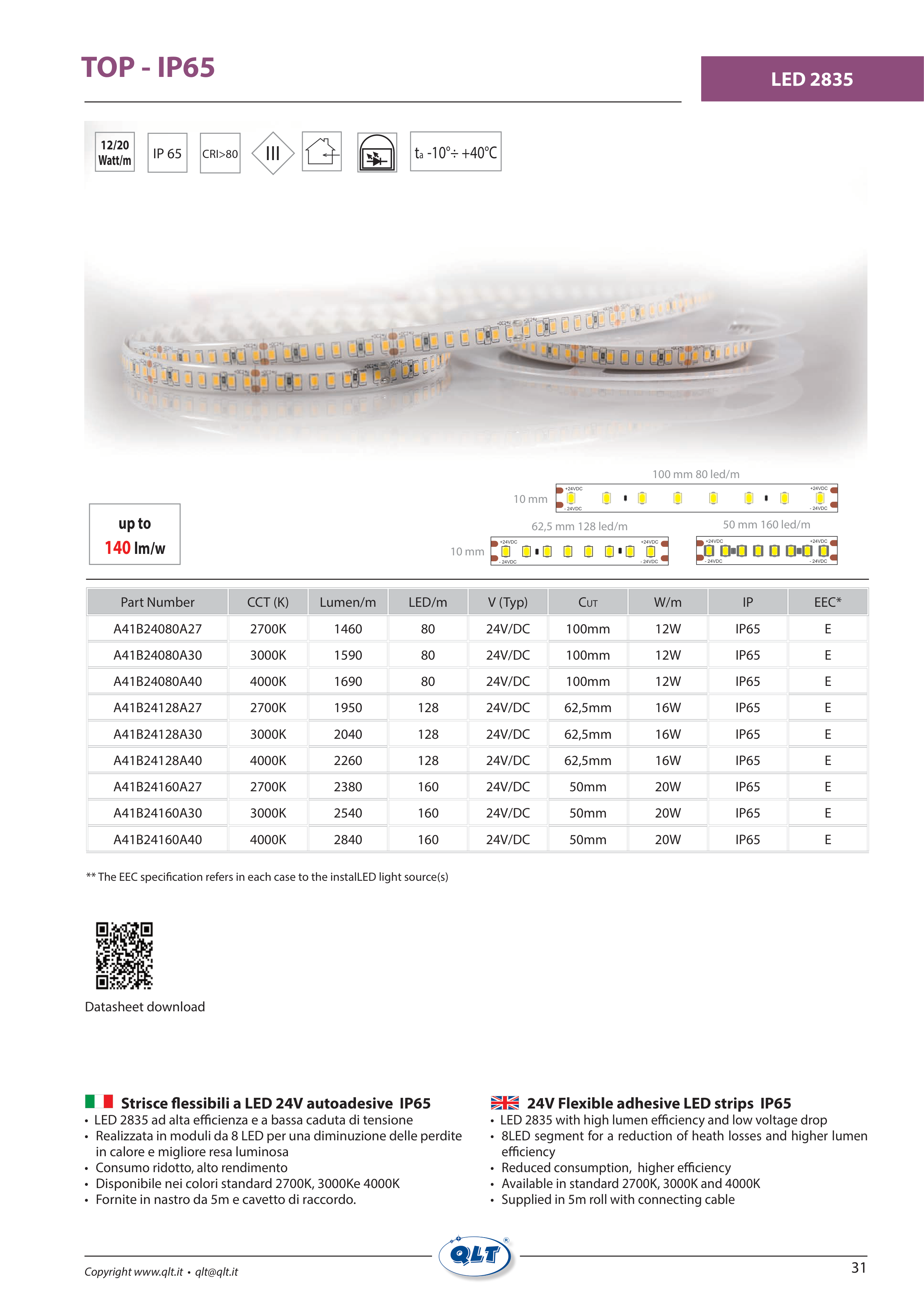

TOP - IP65
BALLAST
LED 2835
ta -10°÷ +40°C
CRI>80
IP 65
III
Strisce flessibili a LED 24V autoadesive IP65
• LED 2835 ad alta efficienza e a bassa caduta di tensione
• Realizzata in moduli da 8 LED per una diminuzione delle perdite
in calore e migliore resa luminosa
• Consumo ridotto, alto rendimento
• Disponibile nei colori standard 2700K, 3000Ke 4000K
• Fornite in nastro da 5m e cavetto di raccordo.
24V Flexible adhesive LED strips IP65
• LED 2835 with high lumen efficiency and low voltage drop
• 8LED segment for a reduction of heath losses and higher lumen
efficiency
• Reduced consumption, higher efficiency
• Available in standard 2700K, 3000K and 4000K
• Supplied in 5m roll with connecting cable
12/20
Watt/m
62,5 mm 128 led/m
10 mm
100 mm 80 led/m
50 mm 160 led/m
+24VDC
+24VDC
- 24VDC
- 24VDC
+24VDC
+24VDC
- 24VDC
- 24VDC
+24VDC
+24VDC
- 24VDC
- 24VDC
10 mm
up to
140 lm/w
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41B24080A27
2700K
1460
80
24V/DC
100mm
12W
IP65
E
A41B24080A30
3000K
1590
80
24V/DC
100mm
12W
IP65
E
A41B24080A40
4000K
1690
80
24V/DC
100mm
12W
IP65
E
A41B24128A27
2700K
1950
128
24V/DC
62,5mm
16W
IP65
E
A41B24128A30
3000K
2040
128
24V/DC
62,5mm
16W
IP65
E
A41B24128A40
4000K
2260
128
24V/DC
62,5mm
16W
IP65
E
A41B24160A27
2700K
2380
160
24V/DC
50mm
20W
IP65
E
A41B24160A30
3000K
2540
160
24V/DC
50mm
20W
IP65
E
A41B24160A40
4000K
2840
160
24V/DC
50mm
20W
IP65
E
** The EEC specification refers in each case to the instalLED light source(s)
Datasheet download
