30

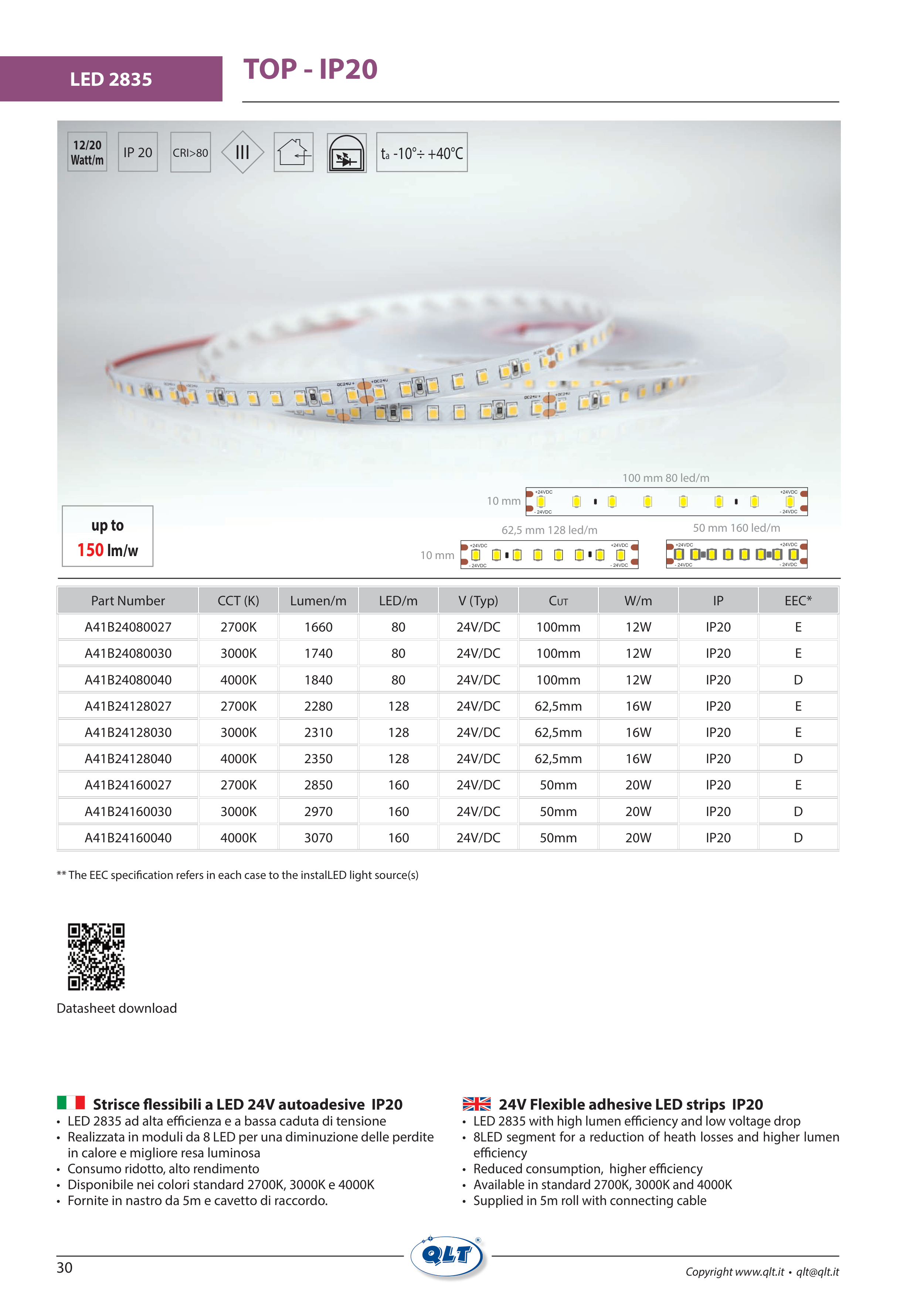

TOP - IP20
LED 2835
Strisce flessibili a LED 24V autoadesive IP20
• LED 2835 ad alta efficienza e a bassa caduta di tensione
• Realizzata in moduli da 8 LED per una diminuzione delle perdite
in calore e migliore resa luminosa
• Consumo ridotto, alto rendimento
• Disponibile nei colori standard 2700K, 3000K e 4000K
• Fornite in nastro da 5m e cavetto di raccordo.
24V Flexible adhesive LED strips IP20
• LED 2835 with high lumen efficiency and low voltage drop
• 8LED segment for a reduction of heath losses and higher lumen
efficiency
• Reduced consumption, higher efficiency
• Available in standard 2700K, 3000K and 4000K
• Supplied in 5m roll with connecting cable
ta -10°÷ +40°C
CRI>80
IP 20
III
62,5 mm 128 led/m
12/20
Watt/m
10 mm
100 mm 80 led/m
50 mm 160 led/m
+24VDC
+24VDC
- 24VDC
- 24VDC
+24VDC
+24VDC
- 24VDC
- 24VDC
+24VDC
+24VDC
- 24VDC
- 24VDC
10 mm
up to
150 lm/w
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41B24080027
2700K
1660
80
24V/DC
100mm
12W
IP20
E
A41B24080030
3000K
1740
80
24V/DC
100mm
12W
IP20
E
A41B24080040
4000K
1840
80
24V/DC
100mm
12W
IP20
D
A41B24128027
2700K
2280
128
24V/DC
62,5mm
16W
IP20
E
A41B24128030
3000K
2310
128
24V/DC
62,5mm
16W
IP20
E
A41B24128040
4000K
2350
128
24V/DC
62,5mm
16W
IP20
D
A41B24160027
2700K
2850
160
24V/DC
50mm
20W
IP20
E
A41B24160030
3000K
2970
160
24V/DC
50mm
20W
IP20
D
A41B24160040
4000K
3070
160
24V/DC
50mm
20W
IP20
D
** The EEC specification refers in each case to the instalLED light source(s)
Datasheet download
