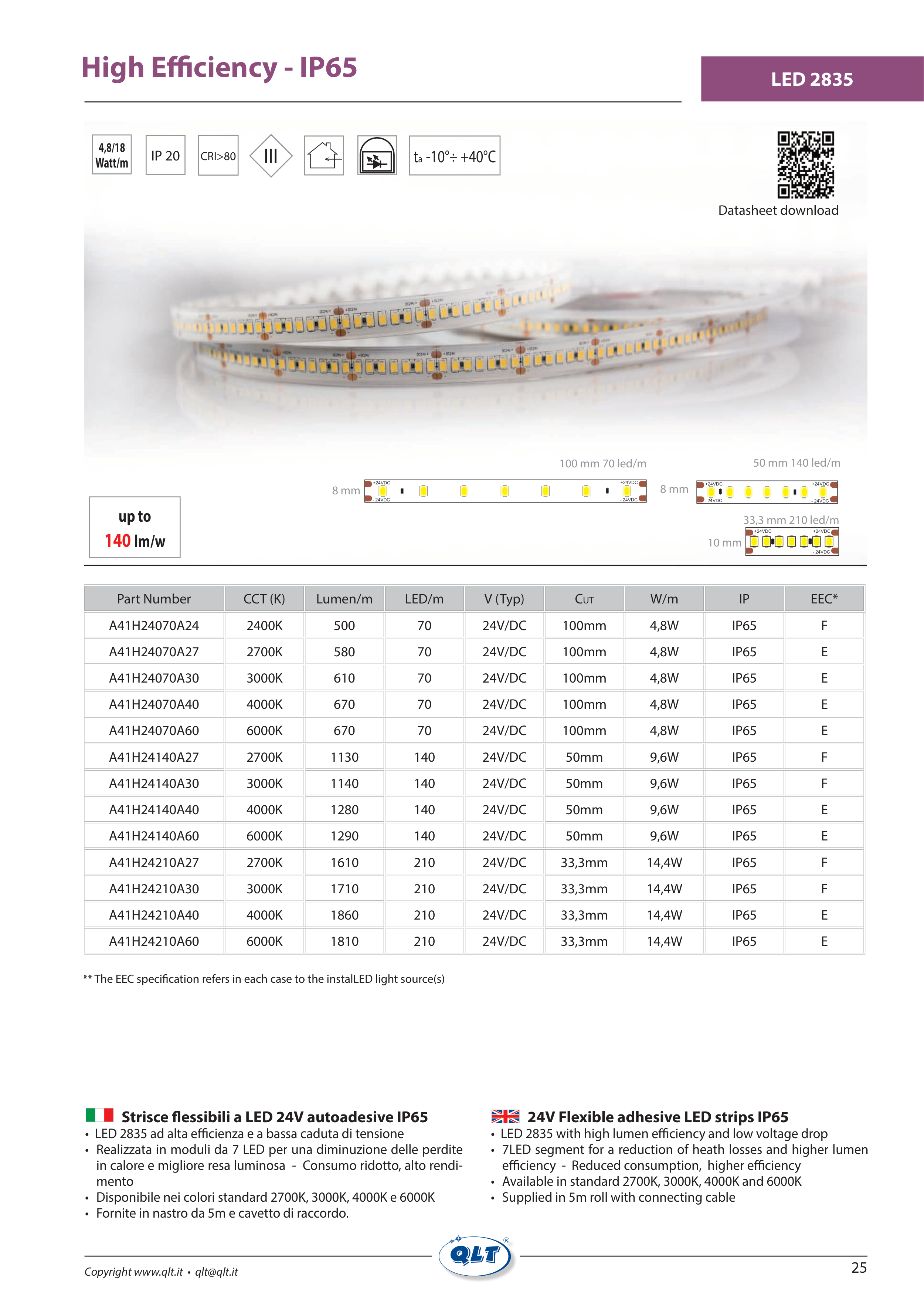

High Efficiency - IP65
LED 2835
Strisce flessibili a LED 24V autoadesive IP65
• LED 2835 ad alta efficienza e a bassa caduta di tensione
• Realizzata in moduli da 7 LED per una diminuzione delle perdite
in calore e migliore resa luminosa - Consumo ridotto, alto rendi-
mento
• Disponibile nei colori standard 2700K, 3000K, 4000K e 6000K
• Fornite in nastro da 5m e cavetto di raccordo.
24V Flexible adhesive LED strips IP65
• LED 2835 with high lumen efficiency and low voltage drop
• 7LED segment for a reduction of heath losses and higher lumen
efficiency - Reduced consumption, higher efficiency
• Available in standard 2700K, 3000K, 4000K and 6000K
• Supplied in 5m roll with connecting cable
8 mm
33,3 mm 210 led/m
+24VDC
+24VDC
- 24VDC
- 24VDC
8 mm
+24VDC
+24VDC
- 24VDC
50 mm 140 led/m
10 mm
+24VDC
+24VDC
- 24VDC
- 24VDC
100 mm 70 led/m
up to
140 lm/w
4,8/18
Watt/m
ta -10°÷ +40°C
CRI>80
IP 20
III
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41H24070A24
2400K
500
70
24V/DC
100mm
4,8W
IP65
F
A41H24070A27
2700K
580
70
24V/DC
100mm
4,8W
IP65
E
A41H24070A30
3000K
610
70
24V/DC
100mm
4,8W
IP65
E
A41H24070A40
4000K
670
70
24V/DC
100mm
4,8W
IP65
E
A41H24070A60
6000K
670
70
24V/DC
100mm
4,8W
IP65
E
A41H24140A27
2700K
1130
140
24V/DC
50mm
9,6W
IP65
F
A41H24140A30
3000K
1140
140
24V/DC
50mm
9,6W
IP65
F
A41H24140A40
4000K
1280
140
24V/DC
50mm
9,6W
IP65
E
A41H24140A60
6000K
1290
140
24V/DC
50mm
9,6W
IP65
E
A41H24210A27
2700K
1610
210
24V/DC
33,3mm
14,4W
IP65
F
A41H24210A30
3000K
1710
210
24V/DC
33,3mm
14,4W
IP65
F
A41H24210A40
4000K
1860
210
24V/DC
33,3mm
14,4W
IP65
E
A41H24210A60
6000K
1810
210
24V/DC
33,3mm
14,4W
IP65
E
** The EEC specification refers in each case to the instalLED light source(s)
