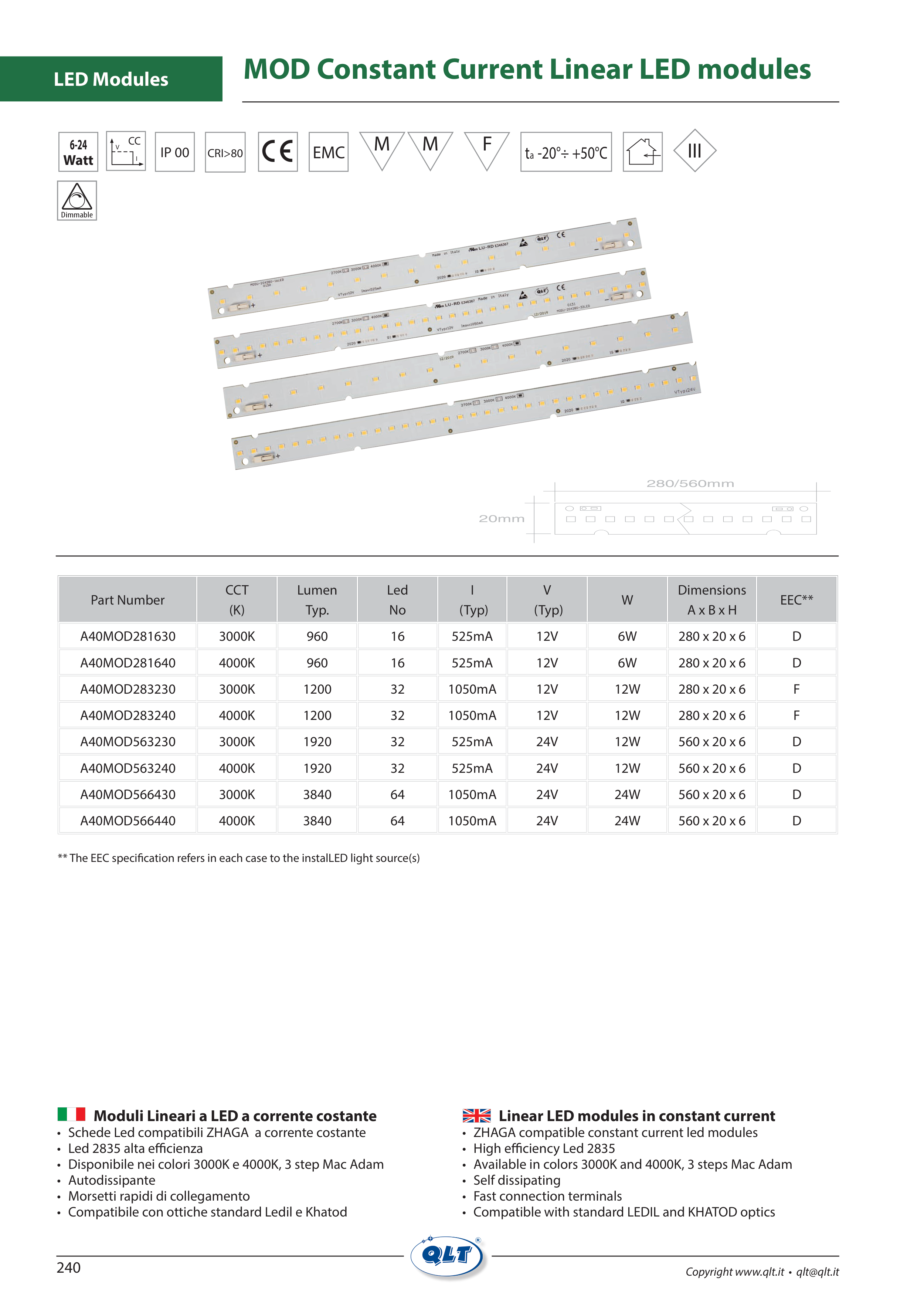

MOD Constant Current Linear LED modules
LED Modules
Moduli Lineari a LED a corrente costante
• Schede Led compatibili ZHAGA a corrente costante
• Led 2835 alta efficienza
• Disponibile nei colori 3000K e 4000K, 3 step Mac Adam
• Autodissipante
• Morsetti rapidi di collegamento
• Compatibile con ottiche standard Ledil e Khatod
Linear LED modules in constant current
• ZHAGA compatible constant current led modules
• High efficiency Led 2835
• Available in colors 3000K and 4000K, 3 steps Mac Adam
• Self dissipating
• Fast connection terminals
• Compatible with standard LEDIL and KHATOD optics
6-24
Watt
EMC
ta -20°÷ +50°C
M
M
F
CRI>80
IP 00
20mm
280/560mm
V
I
CC
III
Dimmable
Part Number
CCT
(K)
Lumen
Typ.
Led
No
I
(Typ)
V
(Typ)
W
Dimensions
A x B x H
EEC**
A40MOD281630
3000K
960
16
525mA
12V
6W
280 x 20 x 6
D
A40MOD281640
4000K
960
16
525mA
12V
6W
280 x 20 x 6
D
A40MOD283230
3000K
1200
32
1050mA
12V
12W
280 x 20 x 6
F
A40MOD283240
4000K
1200
32
1050mA
12V
12W
280 x 20 x 6
F
A40MOD563230
3000K
1920
32
525mA
24V
12W
560 x 20 x 6
D
A40MOD563240
4000K
1920
32
525mA
24V
12W
560 x 20 x 6
D
A40MOD566430
3000K
3840
64
1050mA
24V
24W
560 x 20 x 6
D
A40MOD566440
4000K
3840
64
1050mA
24V
24W
560 x 20 x 6
D
** The EEC specification refers in each case to the instalLED light source(s)
