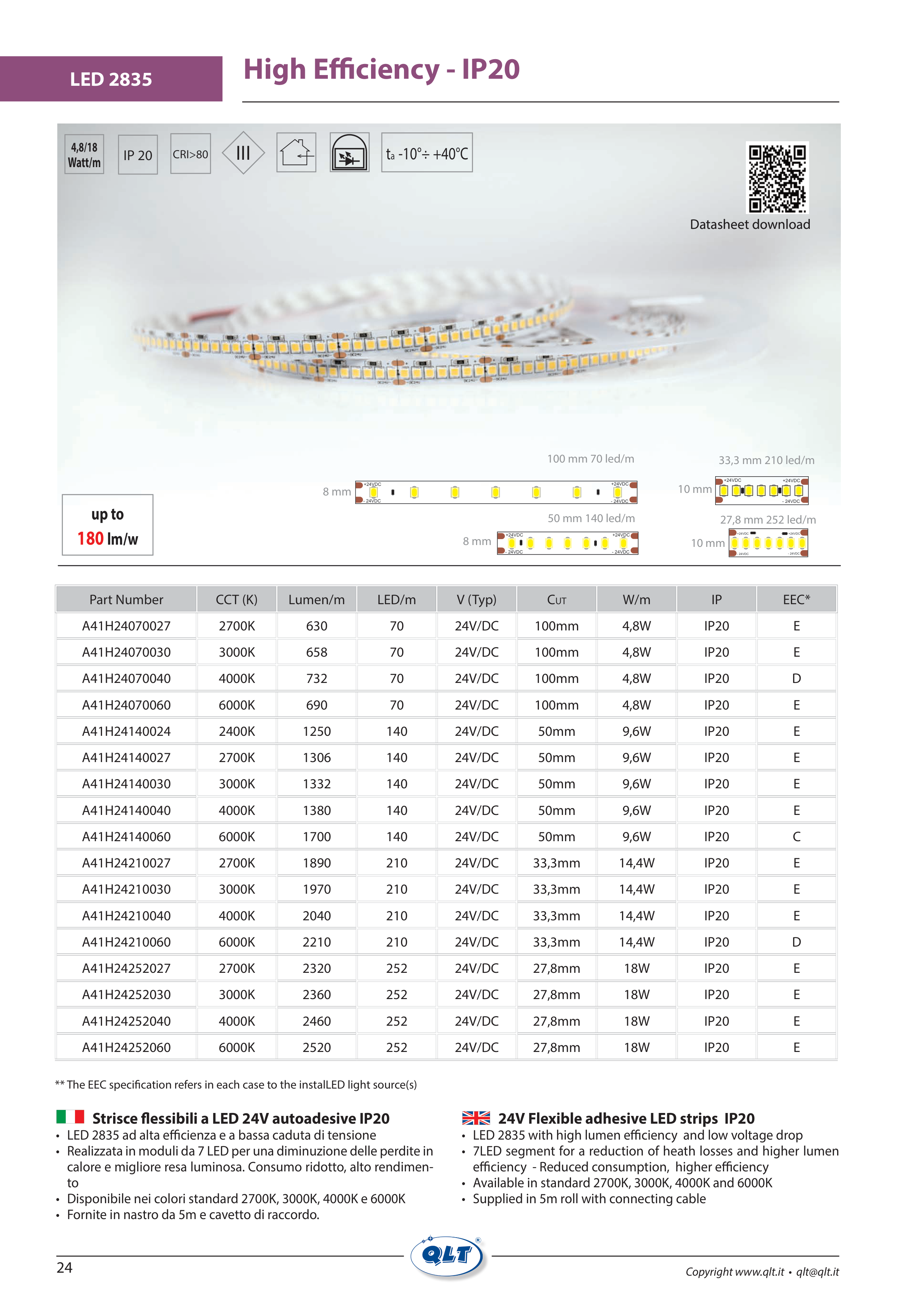

High Efficiency - IP20
LED 2835
Strisce flessibili a LED 24V autoadesive IP20
• LED 2835 ad alta efficienza e a bassa caduta di tensione
• Realizzata in moduli da 7 LED per una diminuzione delle perdite in
calore e migliore resa luminosa. Consumo ridotto, alto rendimen-
to
• Disponibile nei colori standard 2700K, 3000K, 4000K e 6000K
• Fornite in nastro da 5m e cavetto di raccordo.
24V Flexible adhesive LED strips IP20
• LED 2835 with high lumen efficiency and low voltage drop
• 7LED segment for a reduction of heath losses and higher lumen
efficiency - Reduced consumption, higher efficiency
• Available in standard 2700K, 3000K, 4000K and 6000K
• Supplied in 5m roll with connecting cable
4,8/18
Watt/m
ta -10°÷ +40°C
CRI>80
IP 20
III
10 mm
27,8 mm 252 led/m
8 mm
33,3 mm 210 led/m
+24VDC
+24VDC
- 24VDC
- 24VDC
8 mm
+24VDC
+24VDC
- 24VDC
- 24VDC
+24VDC
+24VDC
- 24VDC
50 mm 140 led/m
100 mm 70 led/m
+24VDC
- 24VDC
- 24VDC
+24VDC
10 mm
up to
180 lm/w
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
EEC*
A41H24070027
2700K
630
70
24V/DC
100mm
4,8W
IP20
E
A41H24070030
3000K
658
70
24V/DC
100mm
4,8W
IP20
E
A41H24070040
4000K
732
70
24V/DC
100mm
4,8W
IP20
D
A41H24070060
6000K
690
70
24V/DC
100mm
4,8W
IP20
E
A41H24140024
2400K
1250
140
24V/DC
50mm
9,6W
IP20
E
A41H24140027
2700K
1306
140
24V/DC
50mm
9,6W
IP20
E
A41H24140030
3000K
1332
140
24V/DC
50mm
9,6W
IP20
E
A41H24140040
4000K
1380
140
24V/DC
50mm
9,6W
IP20
E
A41H24140060
6000K
1700
140
24V/DC
50mm
9,6W
IP20
C
A41H24210027
2700K
1890
210
24V/DC
33,3mm
14,4W
IP20
E
A41H24210030
3000K
1970
210
24V/DC
33,3mm
14,4W
IP20
E
A41H24210040
4000K
2040
210
24V/DC
33,3mm
14,4W
IP20
E
A41H24210060
6000K
2210
210
24V/DC
33,3mm
14,4W
IP20
D
A41H24252027
2700K
2320
252
24V/DC
27,8mm
18W
IP20
E
A41H24252030
3000K
2360
252
24V/DC
27,8mm
18W
IP20
E
A41H24252040
4000K
2460
252
24V/DC
27,8mm
18W
IP20
E
A41H24252060
6000K
2520
252
24V/DC
27,8mm
18W
IP20
E
** The EEC specification refers in each case to the instalLED light source(s)
