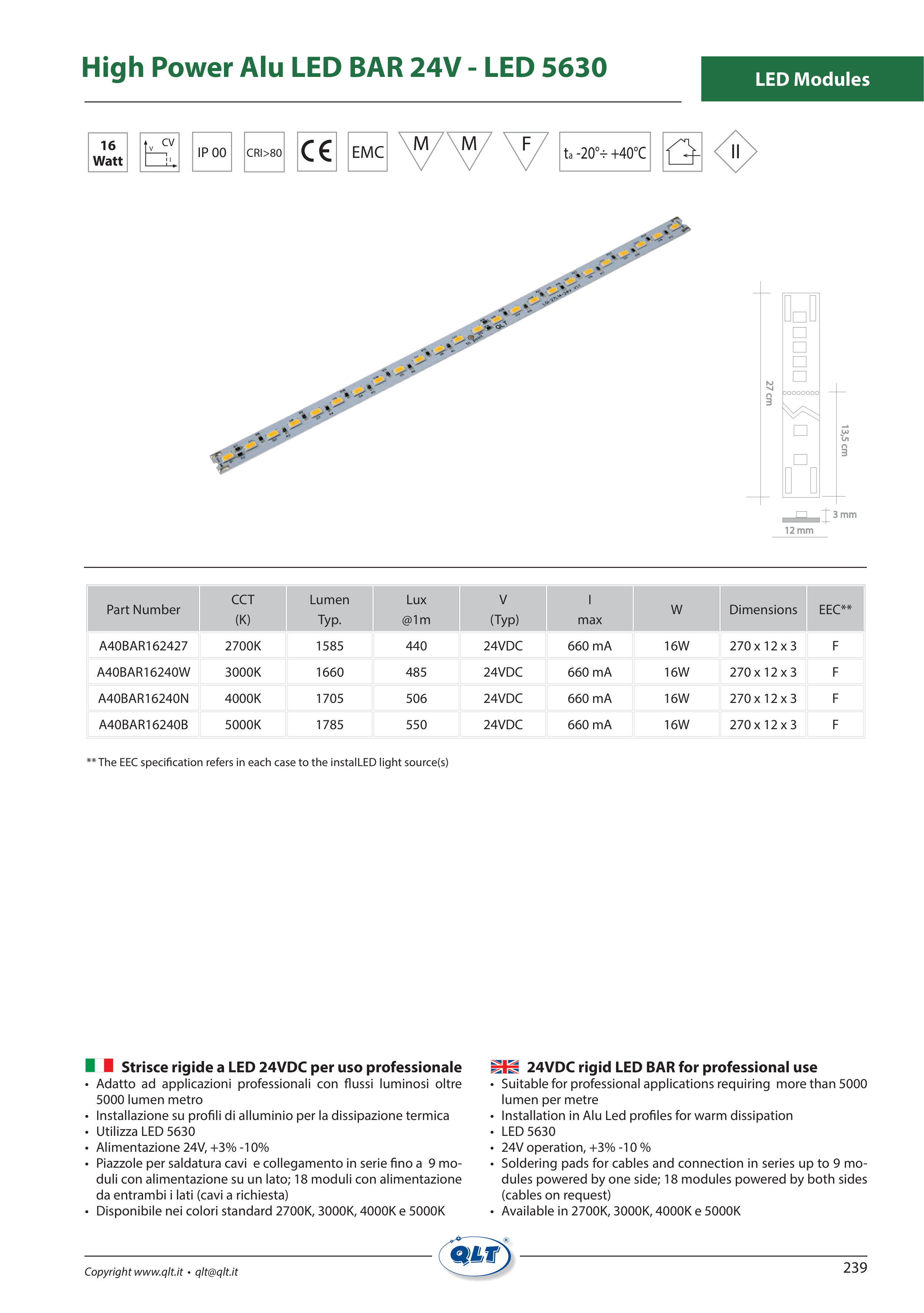

High Power Alu LED BAR 24V - LED 5630
LED Modules
Strisce rigide a LED 24VDC per uso professionale
• Adatto ad applicazioni professionali con flussi luminosi oltre
5000 lumen metro
• Installazione su profili di alluminio per la dissipazione termica
• Utilizza LED 5630
• Alimentazione 24V, +3% -10%
• Piazzole per saldatura cavi e collegamento in serie fino a 9 mo-
duli con alimentazione su un lato; 18 moduli con alimentazione
da entrambi i lati (cavi a richiesta)
• Disponibile nei colori standard 2700K, 3000K, 4000K e 5000K
24VDC rigid LED BAR for professional use
• Suitable for professional applications requiring more than 5000
lumen per metre
• Installation in Alu Led profiles for warm dissipation
• LED 5630
• 24V operation, +3% -10 %
• Soldering pads for cables and connection in series up to 9 mo-
dules powered by one side; 18 modules powered by both sides
(cables on request)
• Available in 2700K, 3000K, 4000K e 5000K
16
Watt
EMC
ta -20°÷ +40°C
M
M
F
CRI>80
II
IP 00
V
I
CV
3 mm
12 mm
27 cm
13,5 cm
Part Number
CCT
(K)
Lumen
Typ.
Lux
@1m
V
(Typ)
I
max
W
Dimensions
EEC**
A40BAR162427
2700K
1585
440
24VDC
660 mA
16W
270 x 12 x 3
F
A40BAR16240W
3000K
1660
485
24VDC
660 mA
16W
270 x 12 x 3
F
A40BAR16240N
4000K
1705
506
24VDC
660 mA
16W
270 x 12 x 3
F
A40BAR16240B
5000K
1785
550
24VDC
660 mA
16W
270 x 12 x 3
F
** The EEC specification refers in each case to the instalLED light source(s)
