LED Modules

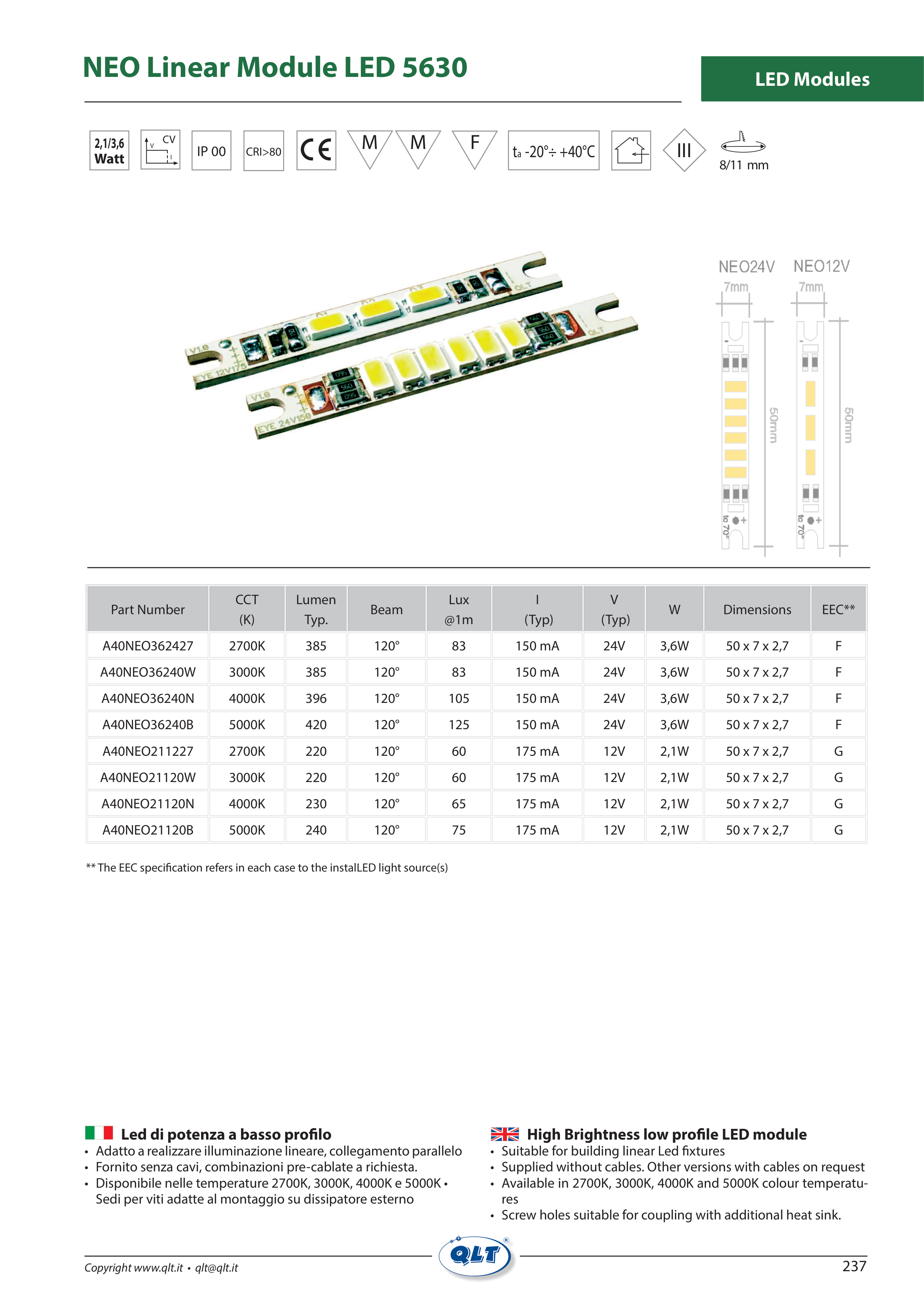

NEO Linear Module LED 5630
Led di potenza a basso profilo
• Adatto a realizzare illuminazione lineare, collegamento parallelo
• Fornito senza cavi, combinazioni pre-cablate a richiesta.
• Disponibile nelle temperature 2700K, 3000K, 4000K e 5000K •
Sedi per viti adatte al montaggio su dissipatore esterno
High Brightness low profile LED module
• Suitable for building linear Led fixtures
• Supplied without cables. Other versions with cables on request
• Available in 2700K, 3000K, 4000K and 5000K colour temperatu-
res
• Screw holes suitable for coupling with additional heat sink.
2,1/3,6
Watt
ta -20°÷ +40°C
M
M
F
CRI>80
III
IP 00
8/11 mm
V
I
CV
Copyright www.qlt.it • qlt@qlt.it
237
Part Number
CCT
(K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Dimensions
EEC**
A40NEO362427
2700K
385
120°
83
150 mA
24V
3,6W
50 x 7 x 2,7
F
A40NEO36240W
3000K
385
120°
83
150 mA
24V
3,6W
50 x 7 x 2,7
F
A40NEO36240N
4000K
396
120°
105
150 mA
24V
3,6W
50 x 7 x 2,7
F
A40NEO36240B
5000K
420
120°
125
150 mA
24V
3,6W
50 x 7 x 2,7
F
A40NEO211227
2700K
220
120°
60
175 mA
12V
2,1W
50 x 7 x 2,7
G
A40NEO21120W
3000K
220
120°
60
175 mA
12V
2,1W
50 x 7 x 2,7
G
A40NEO21120N
4000K
230
120°
65
175 mA
12V
2,1W
50 x 7 x 2,7
G
A40NEO21120B
5000K
240
120°
75
175 mA
12V
2,1W
50 x 7 x 2,7
G
** The EEC specification refers in each case to the instalLED light source(s)
