LED Modules

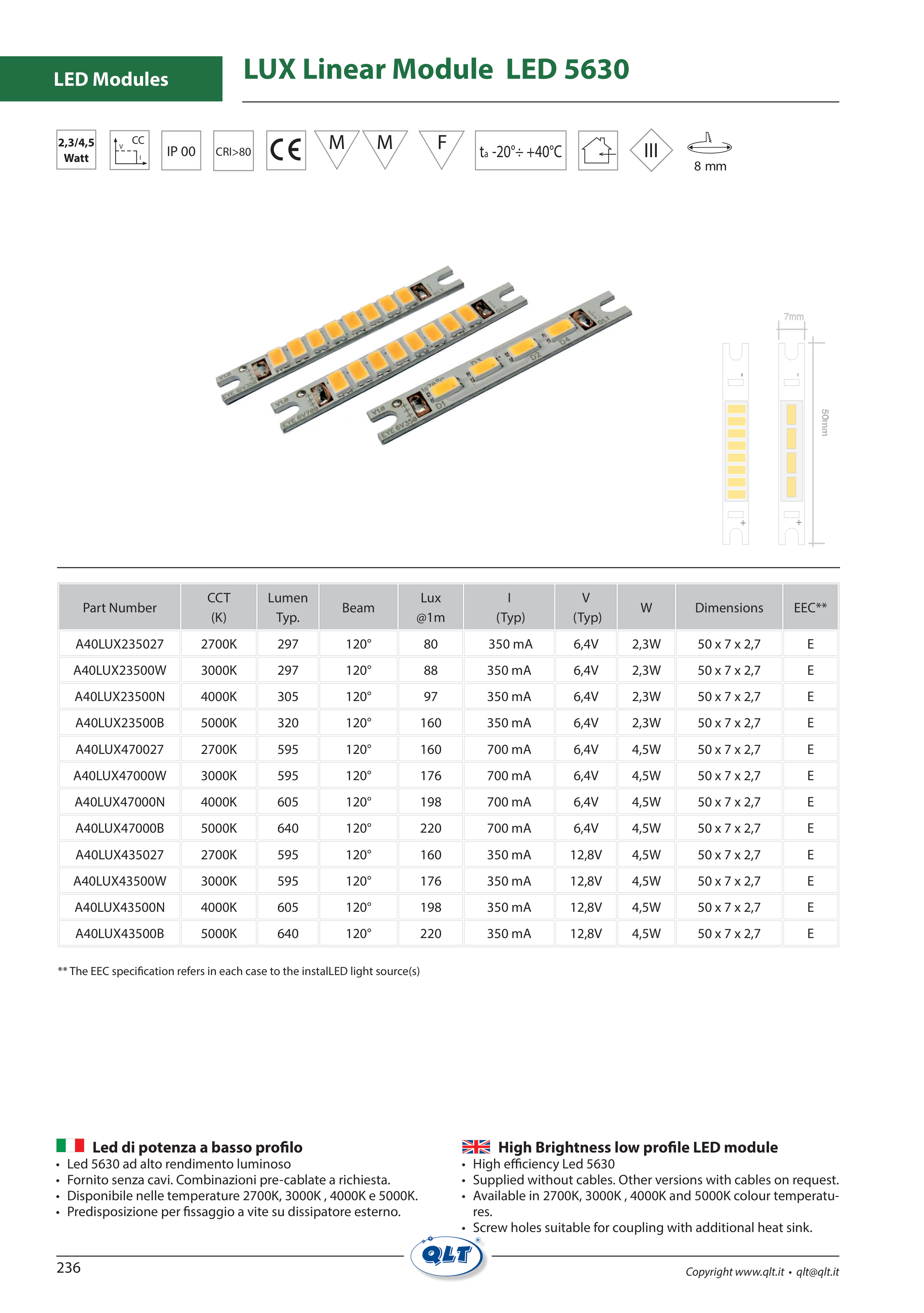

LUX Linear Module LED 5630
Led di potenza a basso profilo
• Led 5630 ad alto rendimento luminoso
• Fornito senza cavi. Combinazioni pre-cablate a richiesta.
• Disponibile nelle temperature 2700K, 3000K , 4000K e 5000K.
• Predisposizione per fissaggio a vite su dissipatore esterno.
High Brightness low profile LED module
• High efficiency Led 5630
• Supplied without cables. Other versions with cables on request.
• Available in 2700K, 3000K , 4000K and 5000K colour temperatu-
res.
• Screw holes suitable for coupling with additional heat sink.
ta -20°÷ +40°C
M
M
F
CRI>80
III
IP 00
8 mm
V
I
CC
2,3/4,5
Watt
Part Number
CCT
(K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Dimensions
EEC**
A40LUX235027
2700K
297
120°
80
350 mA
6,4V
2,3W
50 x 7 x 2,7
E
A40LUX23500W
3000K
297
120°
88
350 mA
6,4V
2,3W
50 x 7 x 2,7
E
A40LUX23500N
4000K
305
120°
97
350 mA
6,4V
2,3W
50 x 7 x 2,7
E
A40LUX23500B
5000K
320
120°
160
350 mA
6,4V
2,3W
50 x 7 x 2,7
E
A40LUX470027
2700K
595
120°
160
700 mA
6,4V
4,5W
50 x 7 x 2,7
E
A40LUX47000W
3000K
595
120°
176
700 mA
6,4V
4,5W
50 x 7 x 2,7
E
A40LUX47000N
4000K
605
120°
198
700 mA
6,4V
4,5W
50 x 7 x 2,7
E
A40LUX47000B
5000K
640
120°
220
700 mA
6,4V
4,5W
50 x 7 x 2,7
E
A40LUX435027
2700K
595
120°
160
350 mA
12,8V
4,5W
50 x 7 x 2,7
E
A40LUX43500W
3000K
595
120°
176
350 mA
12,8V
4,5W
50 x 7 x 2,7
E
A40LUX43500N
4000K
605
120°
198
350 mA
12,8V
4,5W
50 x 7 x 2,7
E
A40LUX43500B
5000K
640
120°
220
350 mA
12,8V
4,5W
50 x 7 x 2,7
E
** The EEC specification refers in each case to the instalLED light source(s)
