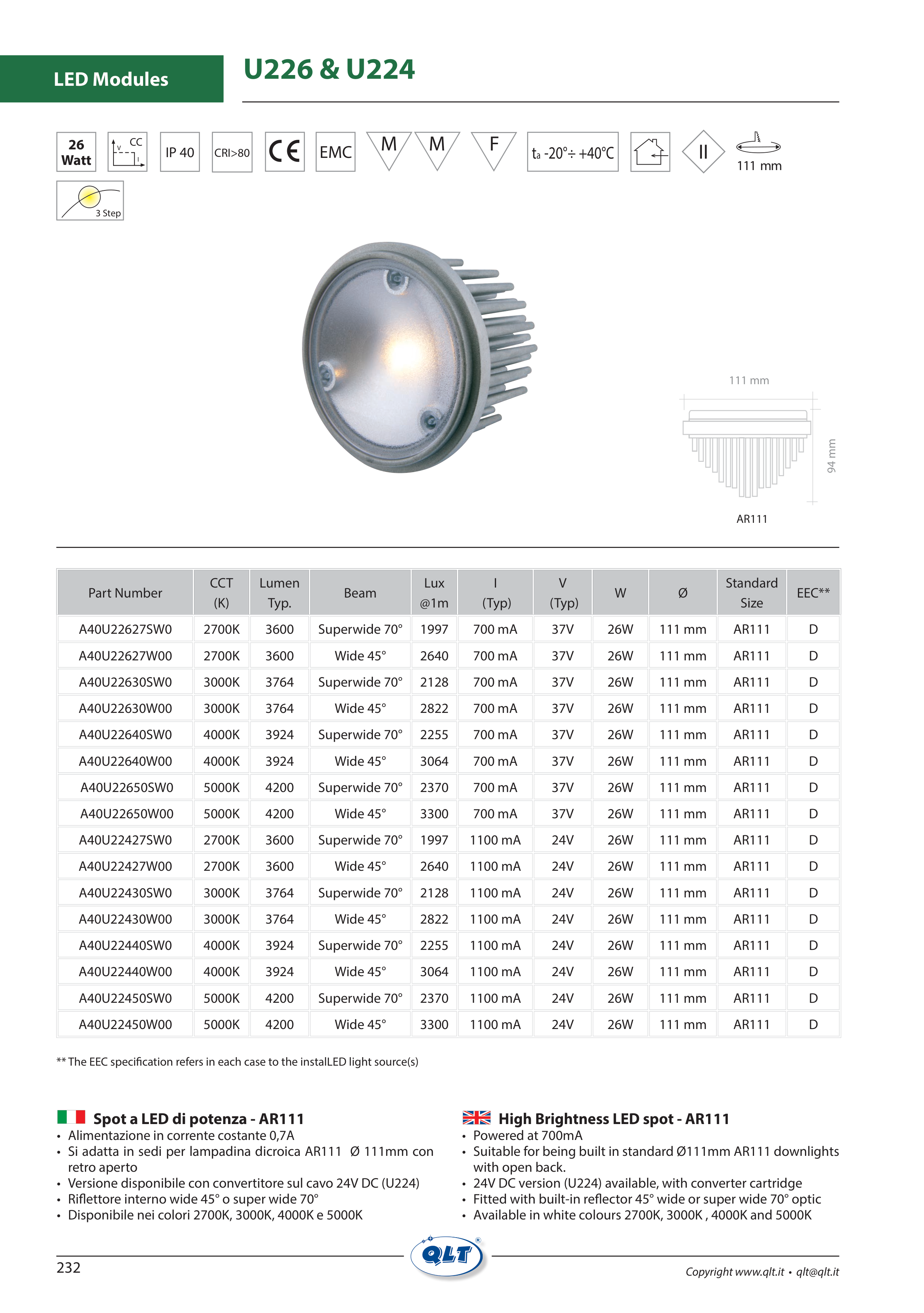

U226 & U224
LED Modules
Spot a LED di potenza - AR111
• Alimentazione in corrente costante 0,7A
• Si adatta in sedi per lampadina dicroica AR111 Ø 111mm con
retro aperto
• Versione disponibile con convertitore sul cavo 24V DC (U224)
• Riflettore interno wide 45° o super wide 70°
• Disponibile nei colori 2700K, 3000K, 4000K e 5000K
High Brightness LED spot - AR111
• Powered at 700mA
• Suitable for being built in standard Ø111mm AR111 downlights
with open back.
• 24V DC version (U224) available, with converter cartridge
• Fitted with built-in reflector 45° wide or super wide 70° optic
• Available in white colours 2700K, 3000K , 4000K and 5000K
26
Watt
EMC
ta -20°÷ +40°C
M
M
F
CRI>80
II
IP 40
111 mm
V
I
CC
111 mm
AR111
94 mm
3 Step
Part Number
CCT
(K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Ø
Standard
Size
EEC**
A40U22627SW0
2700K
3600
Superwide 70°
1997
700 mA
37V
26W
111 mm
AR111
D
A40U22627W00
2700K
3600
Wide 45°
2640
700 mA
37V
26W
111 mm
AR111
D
A40U22630SW0
3000K
3764
Superwide 70°
2128
700 mA
37V
26W
111 mm
AR111
D
A40U22630W00
3000K
3764
Wide 45°
2822
700 mA
37V
26W
111 mm
AR111
D
A40U22640SW0
4000K
3924
Superwide 70°
2255
700 mA
37V
26W
111 mm
AR111
D
A40U22640W00
4000K
3924
Wide 45°
3064
700 mA
37V
26W
111 mm
AR111
D
A40U22650SW0
5000K
4200
Superwide 70°
2370
700 mA
37V
26W
111 mm
AR111
D
A40U22650W00
5000K
4200
Wide 45°
3300
700 mA
37V
26W
111 mm
AR111
D
A40U22427SW0
2700K
3600
Superwide 70°
1997
1100 mA
24V
26W
111 mm
AR111
D
A40U22427W00
2700K
3600
Wide 45°
2640
1100 mA
24V
26W
111 mm
AR111
D
A40U22430SW0
3000K
3764
Superwide 70°
2128
1100 mA
24V
26W
111 mm
AR111
D
A40U22430W00
3000K
3764
Wide 45°
2822
1100 mA
24V
26W
111 mm
AR111
D
A40U22440SW0
4000K
3924
Superwide 70°
2255
1100 mA
24V
26W
111 mm
AR111
D
A40U22440W00
4000K
3924
Wide 45°
3064
1100 mA
24V
26W
111 mm
AR111
D
A40U22450SW0
5000K
4200
Superwide 70°
2370
1100 mA
24V
26W
111 mm
AR111
D
A40U22450W00
5000K
4200
Wide 45°
3300
1100 mA
24V
26W
111 mm
AR111
D
** The EEC specification refers in each case to the instalLED light source(s)
