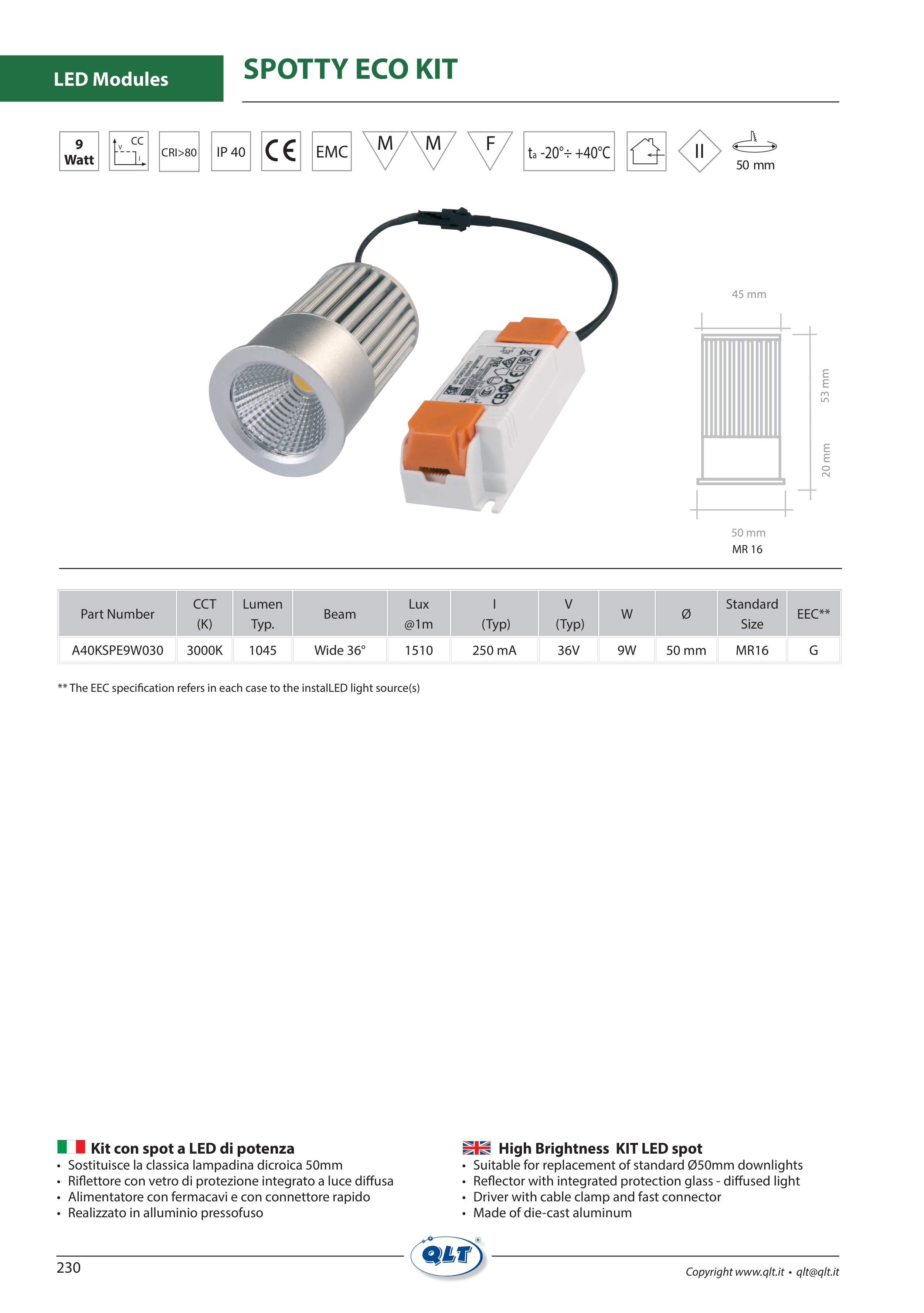

SPOTTY ECO KIT
LED Modules
Kit con spot a LED di potenza
• Sostituisce la classica lampadina dicroica 50mm
• Riflettore con vetro di protezione integrato a luce diffusa
• Alimentatore con fermacavi e con connettore rapido
• Realizzato in alluminio pressofuso
High Brightness KIT LED spot
• Suitable for replacement of standard Ø50mm downlights
• Reflector with integrated protection glass - diffused light
• Driver with cable clamp and fast connector
• Made of die-cast aluminum
9
Watt
EMC
ta -20°÷ +40°C
M
M
F
CRI>80
II
IP 40
50 mm
V
I
CC
53 mm
45 mm
50 mm
MR 16
20 mm
Part Number
CCT
(K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Ø
Standard
Size
EEC**
A40KSPE9W030
3000K
1045
Wide 36°
1510
250 mA
36V
9W
50 mm
MR16
G
** The EEC specification refers in each case to the instalLED light source(s)
