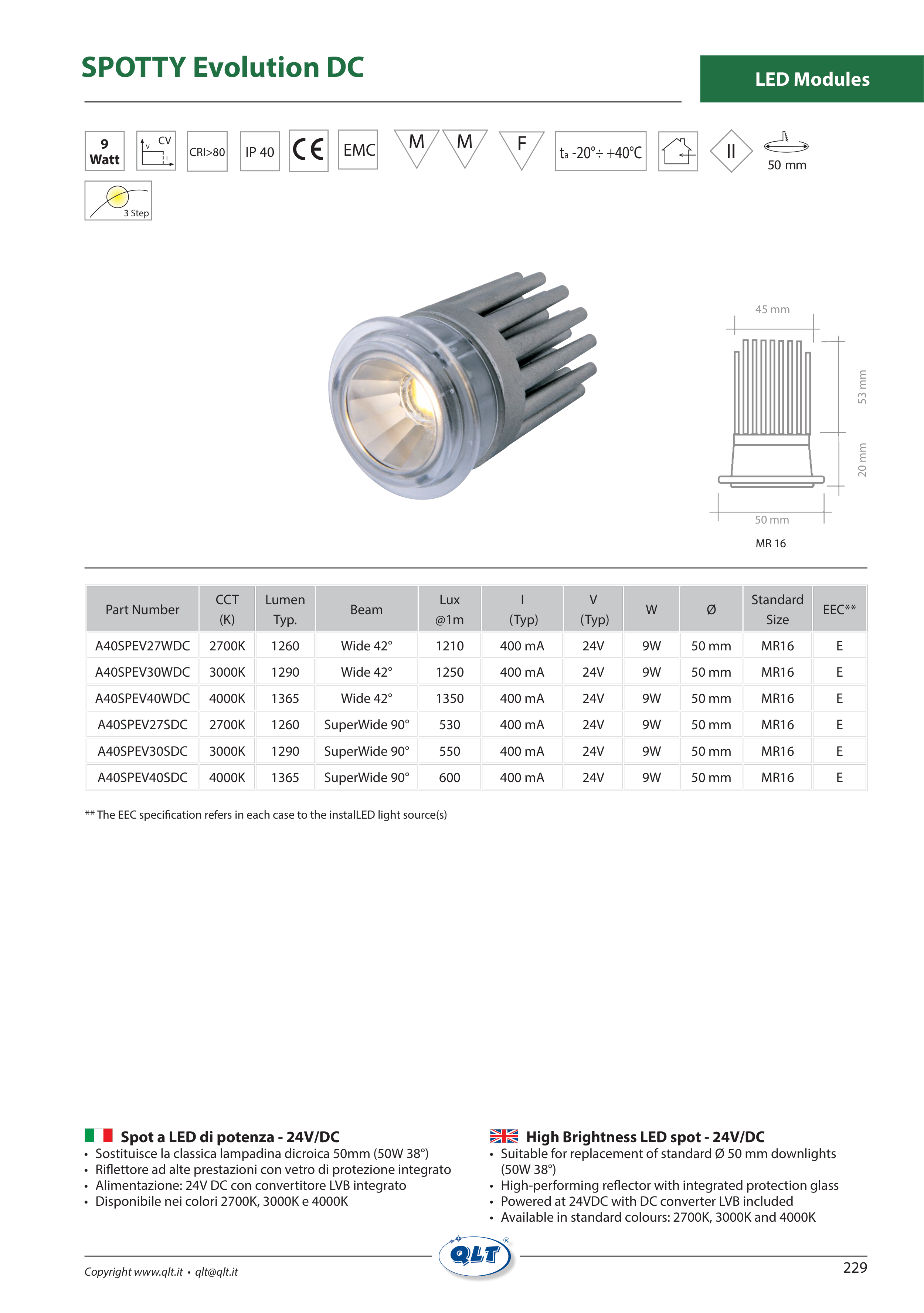

SPOTTY Evolution DC
LED Modules
Spot a LED di potenza - 24V/DC
• Sostituisce la classica lampadina dicroica 50mm (50W 38°)
• Riflettore ad alte prestazioni con vetro di protezione integrato
• Alimentazione: 24V DC con convertitore LVB integrato
• Disponibile nei colori 2700K, 3000K e 4000K
High Brightness LED spot - 24V/DC
• Suitable for replacement of standard Ø 50 mm downlights
(50W 38°)
• High-performing reflector with integrated protection glass
• Powered at 24VDC with DC converter LVB included
• Available in standard colours: 2700K, 3000K and 4000K
9
Watt
EMC
M
M
CRI>80
IP 40
ta -20°÷ +40°C
F
II
50 mm
53 mm
45 mm
50 mm
MR 16
20 mm
V
I
CV
3 Step
Part Number
CCT
(K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Ø
Standard
Size
EEC**
A40SPEV27WDC
2700K
1260
Wide 42°
1210
400 mA
24V
9W
50 mm
MR16
E
A40SPEV30WDC
3000K
1290
Wide 42°
1250
400 mA
24V
9W
50 mm
MR16
E
A40SPEV40WDC
4000K
1365
Wide 42°
1350
400 mA
24V
9W
50 mm
MR16
E
A40SPEV27SDC
2700K
1260
SuperWide 90°
530
400 mA
24V
9W
50 mm
MR16
E
A40SPEV30SDC
3000K
1290
SuperWide 90°
550
400 mA
24V
9W
50 mm
MR16
E
A40SPEV40SDC
4000K
1365
SuperWide 90°
600
400 mA
24V
9W
50 mm
MR16
E
** The EEC specification refers in each case to the instalLED light source(s)
