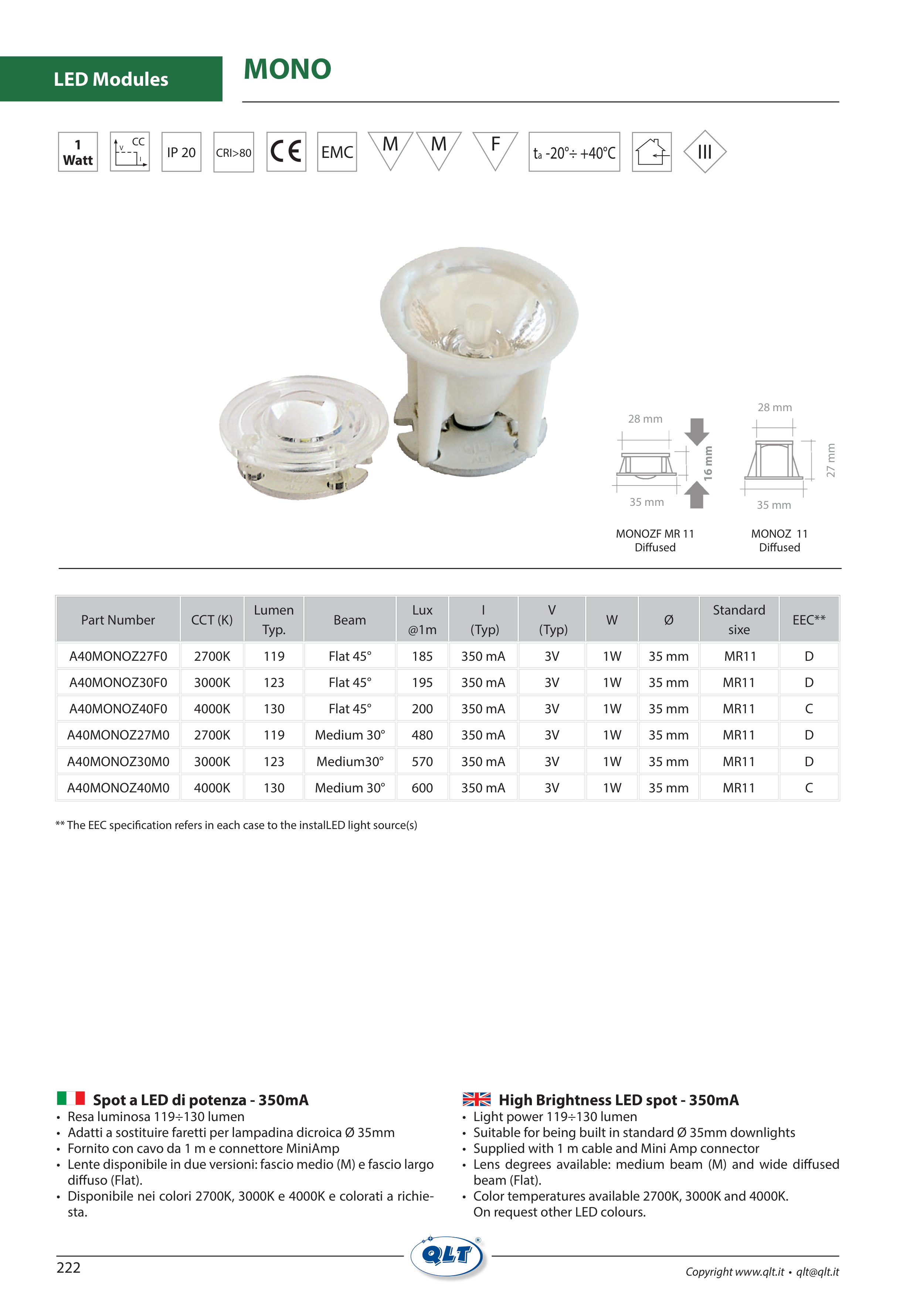

MONO
LED Modules
Spot a LED di potenza - 350mA
• Resa luminosa 119÷130 lumen
• Adatti a sostituire faretti per lampadina dicroica Ø 35mm
• Fornito con cavo da 1 m e connettore MiniAmp
• Lente disponibile in due versioni: fascio medio (M) e fascio largo
diffuso (Flat).
• Disponibile nei colori 2700K, 3000K e 4000K e colorati a richie-
sta.
High Brightness LED spot - 350mA
• Light power 119÷130 lumen
• Suitable for being built in standard Ø 35mm downlights
• Supplied with 1 m cable and Mini Amp connector
• Lens degrees available: medium beam (M) and wide diffused
beam (Flat).
• Color temperatures available 2700K, 3000K and 4000K.
On request other LED colours.
1
Watt
EMC
ta -20°÷ +40°C
M
M
F
CRI>80
III
IP 20
27 mm
28 mm
V
I
CC
35 mm
28 mm
35 mm
16 mm
MONOZF MR 11
Diffused
MONOZ 11
Diffused
Part Number
CCT (K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Ø
Standard
sixe
EEC**
A40MONOZ27F0
2700K
119
Flat 45°
185
350 mA
3V
1W
35 mm
MR11
D
A40MONOZ30F0
3000K
123
Flat 45°
195
350 mA
3V
1W
35 mm
MR11
D
A40MONOZ40F0
4000K
130
Flat 45°
200
350 mA
3V
1W
35 mm
MR11
C
A40MONOZ27M0
2700K
119
Medium 30°
480
350 mA
3V
1W
35 mm
MR11
D
A40MONOZ30M0
3000K
123
Medium30°
570
350 mA
3V
1W
35 mm
MR11
D
A40MONOZ40M0
4000K
130
Medium 30°
600
350 mA
3V
1W
35 mm
MR11
C
** The EEC specification refers in each case to the instalLED light source(s)
