Copyright www.qlt.it • qlt@qlt.it
217
LED Modules

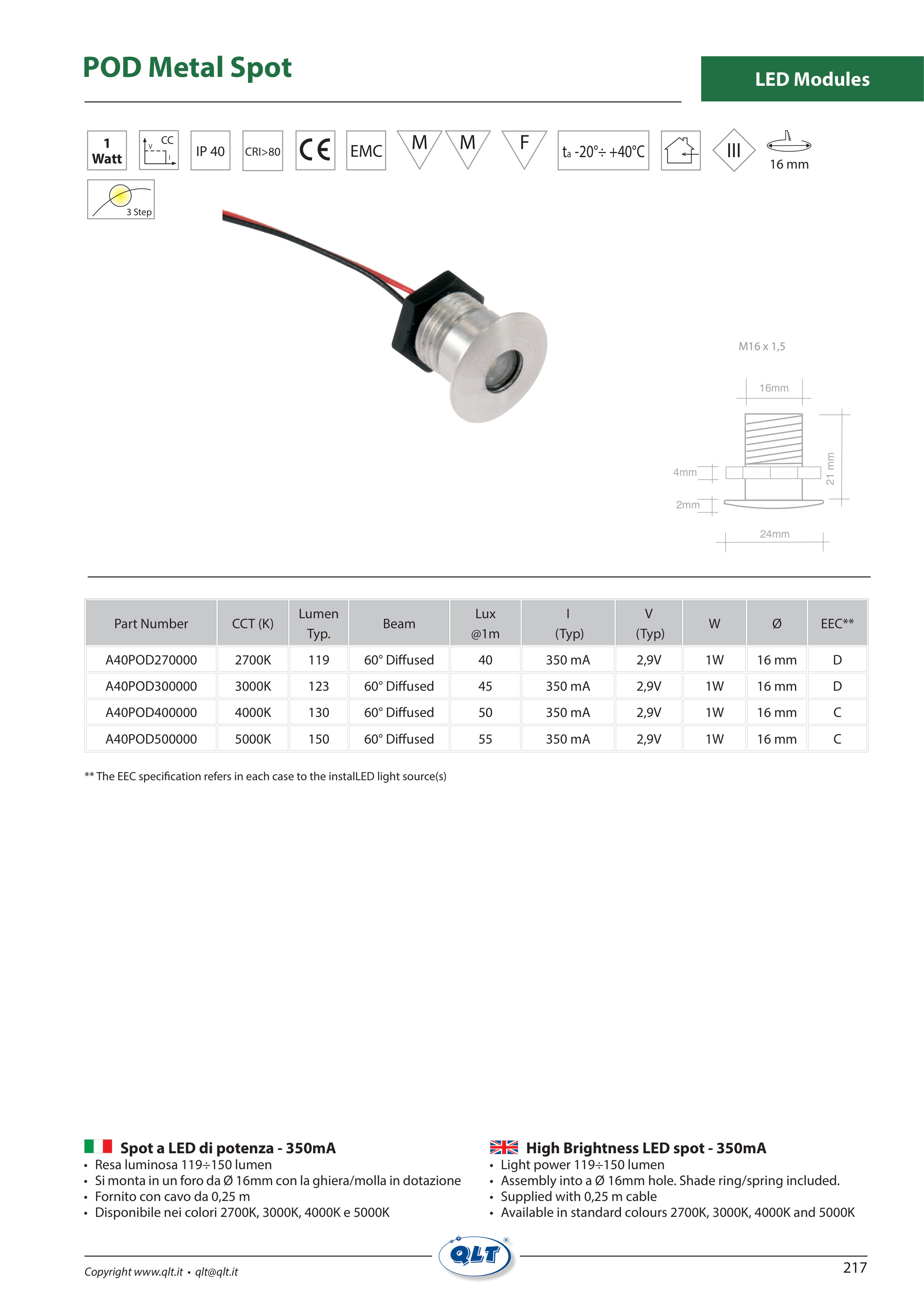

POD Metal Spot
Spot a LED di potenza - 350mA
• Resa luminosa 119÷150 lumen
• Si monta in un foro da Ø 16mm con la ghiera/molla in dotazione
• Fornito con cavo da 0,25 m
• Disponibile nei colori 2700K, 3000K, 4000K e 5000K
High Brightness LED spot - 350mA
• Light power 119÷150 lumen
• Assembly into a Ø 16mm hole. Shade ring/spring included.
• Supplied with 0,25 m cable
• Available in standard colours 2700K, 3000K, 4000K and 5000K
1
Watt
EMC
ta -20°÷ +40°C
M
M
F
CRI>80
III
IP 40
16 mm
V
I
CC
3 Step
21 mm
16mm
24mm
2mm
4mm
M16 x 1,5
Part Number
CCT (K)
Lumen
Typ.
Beam
Lux
@1m
I
(Typ)
V
(Typ)
W
Ø
EEC**
A40POD270000
2700K
119
60° Diffused
40
350 mA
2,9V
1W
16 mm
D
A40POD300000
3000K
123
60° Diffused
45
350 mA
2,9V
1W
16 mm
D
A40POD400000
4000K
130
60° Diffused
50
350 mA
2,9V
1W
16 mm
C
A40POD500000
5000K
150
60° Diffused
55
350 mA
2,9V
1W
16 mm
C
** The EEC specification refers in each case to the instalLED light source(s)
