208

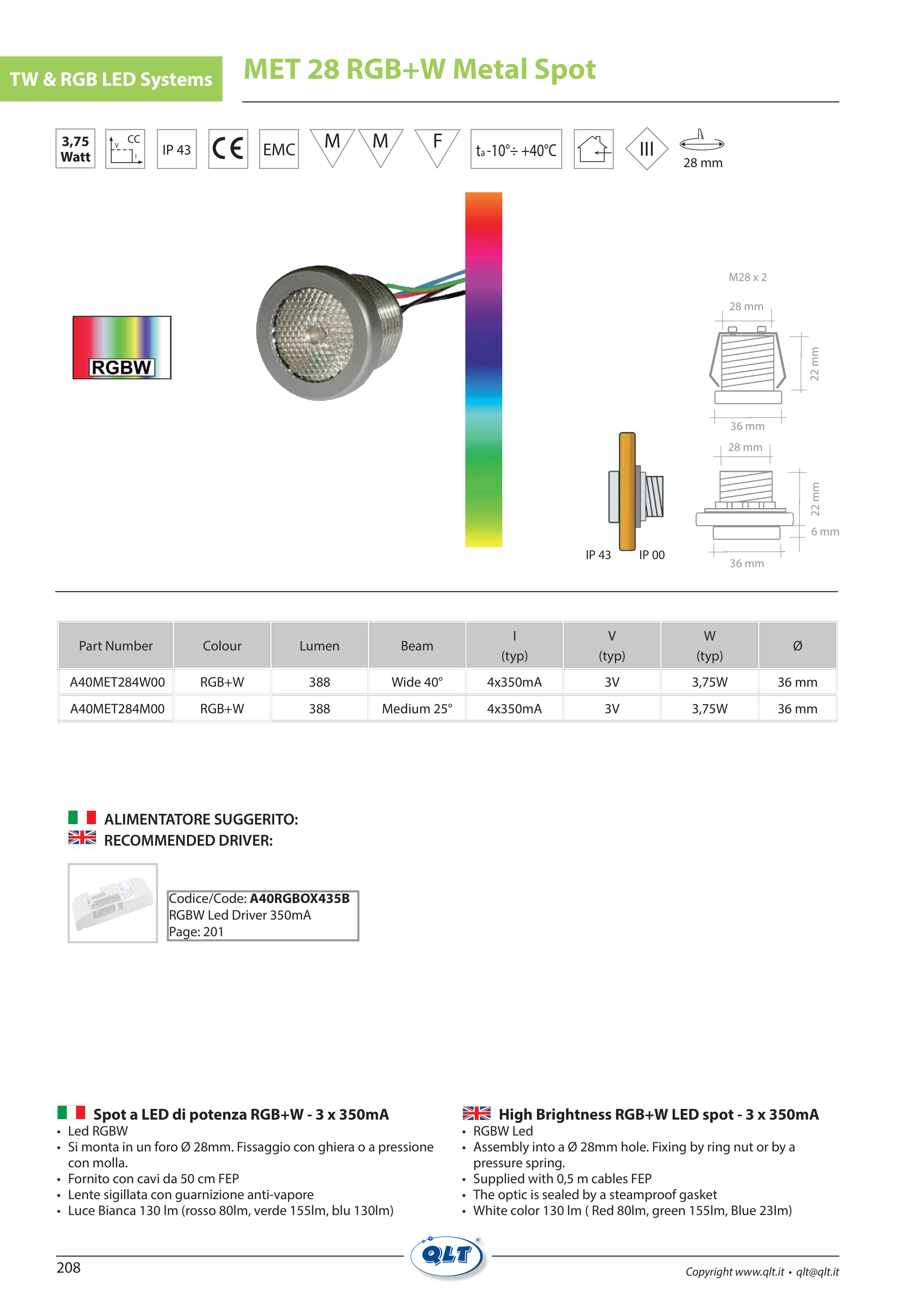

MET 28 RGB+W Metal Spot
TW & RGB LED Systems
Spot a LED di potenza RGB+W - 3 x 350mA
• Led RGBW
• Si monta in un foro Ø 28mm. Fissaggio con ghiera o a pressione
con molla.
• Fornito con cavi da 50 cm FEP
• Lente sigillata con guarnizione anti-vapore
• Luce Bianca 130 lm (rosso 80lm, verde 155lm, blu 130lm)
High Brightness RGB+W LED spot - 3 x 350mA
• RGBW Led
• Assembly into a Ø 28mm hole. Fixing by ring nut or by a
pressure spring.
• Supplied with 0,5 m cables FEP
• The optic is sealed by a steamproof gasket
• White color 130 lm ( Red 80lm, green 155lm, Blue 23lm)
3,75
Watt
EMC
ta -10°÷ +40°C
M
M
F
III
IP 43
28 mm
V
I
CC
22 mm
28 mm
6 mm
22 mm
28 mm
36 mm
36 mm
IP 00
IP 43
M28 x 2
Part Number
Colour
Lumen
Beam
I
(typ)
V
(typ)
W
(typ)
Ø
A40MET284W00
RGB+W
388
Wide 40°
4x350mA
3V
3,75W
36 mm
A40MET284M00
RGB+W
388
Medium 25°
4x350mA
3V
3,75W
36 mm
ALIMENTATORE SUGGERITO:
RECOMMENDED DRIVER:
Codice/Code: A40RGBOX435B
RGBW Led Driver 350mA
Page: 201
