Smart Light Control
Interfaccia Wireless Zigbee +BLE a DALI
• Alimentazione da BUS DALI o da alimentazione esterna 12-
48VDC
• Unità di comando Zigbee 3.0 + Bluetooth Low Energy
• Uscita: segnale DALI
• Disponibile APP Android, IOS
Interface Wireless Zigbee+BLE to DALI
• Supply by BUS DALI or 12-48VDC power supply
• Zigbee 3.0 + Bluetooth Low Energy control
• Output: DALI signal
• APP IOS/ANDROID available
A
B
C
DALIBPS01
DALI
DALI
DALI lBus
max 300m
100..250V AC
+
+
-
-
++
++
--
--
Max 64 devices @2mA
Bluetooth ZigBee
Aux
PF
λ ≥ 0,60
IP 20
EMC
M
M
F
45 mm
110
ta -10°÷ +45°C

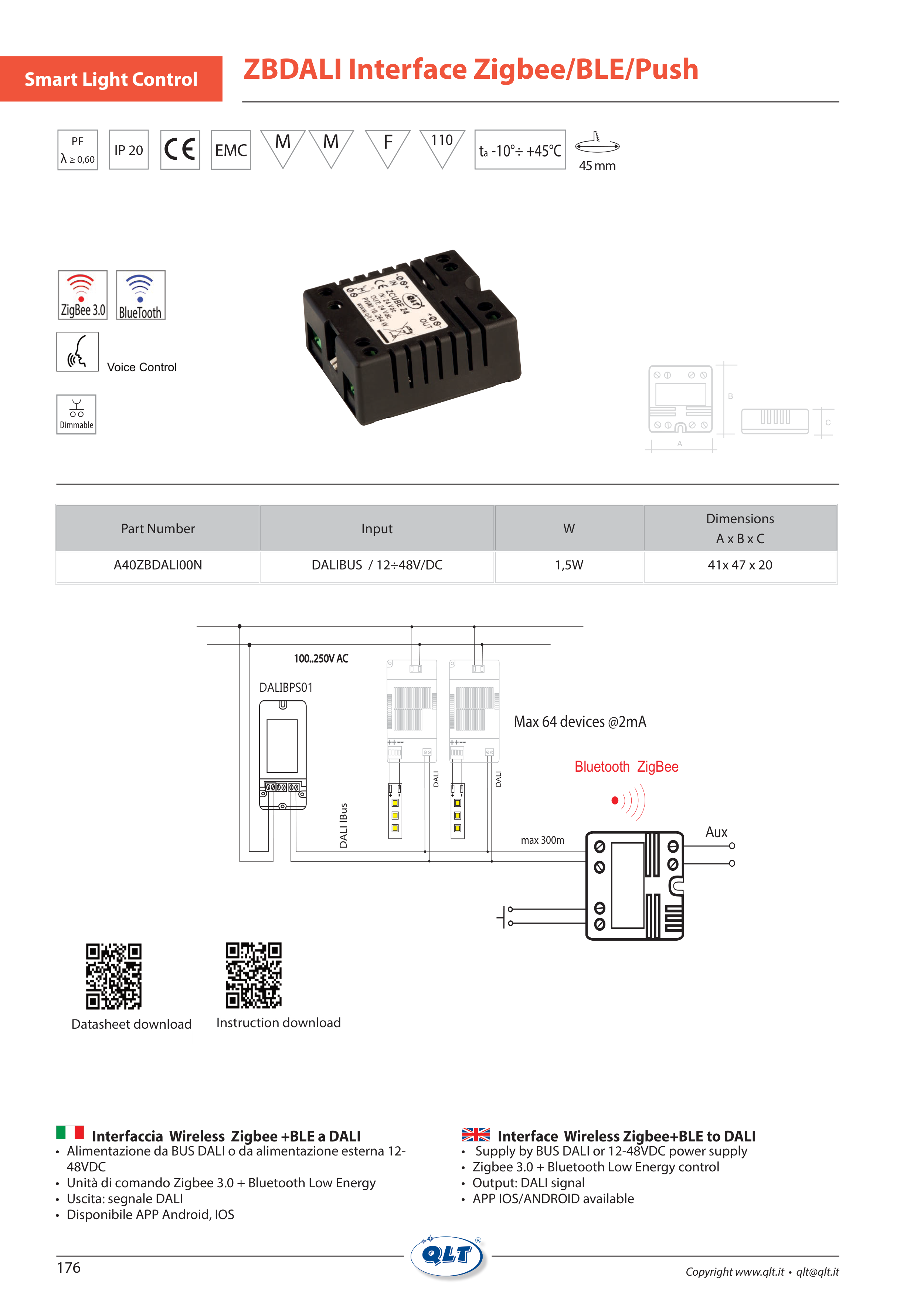

ZBDALI Interface Zigbee/BLE/Push
Part Number
Input
W
Dimensions
A x B x C
A40ZBDALI00N
DALIBUS / 12÷48V/DC
1,5W
41x 47 x 20
Datasheet download
Instruction download
Dimmable
