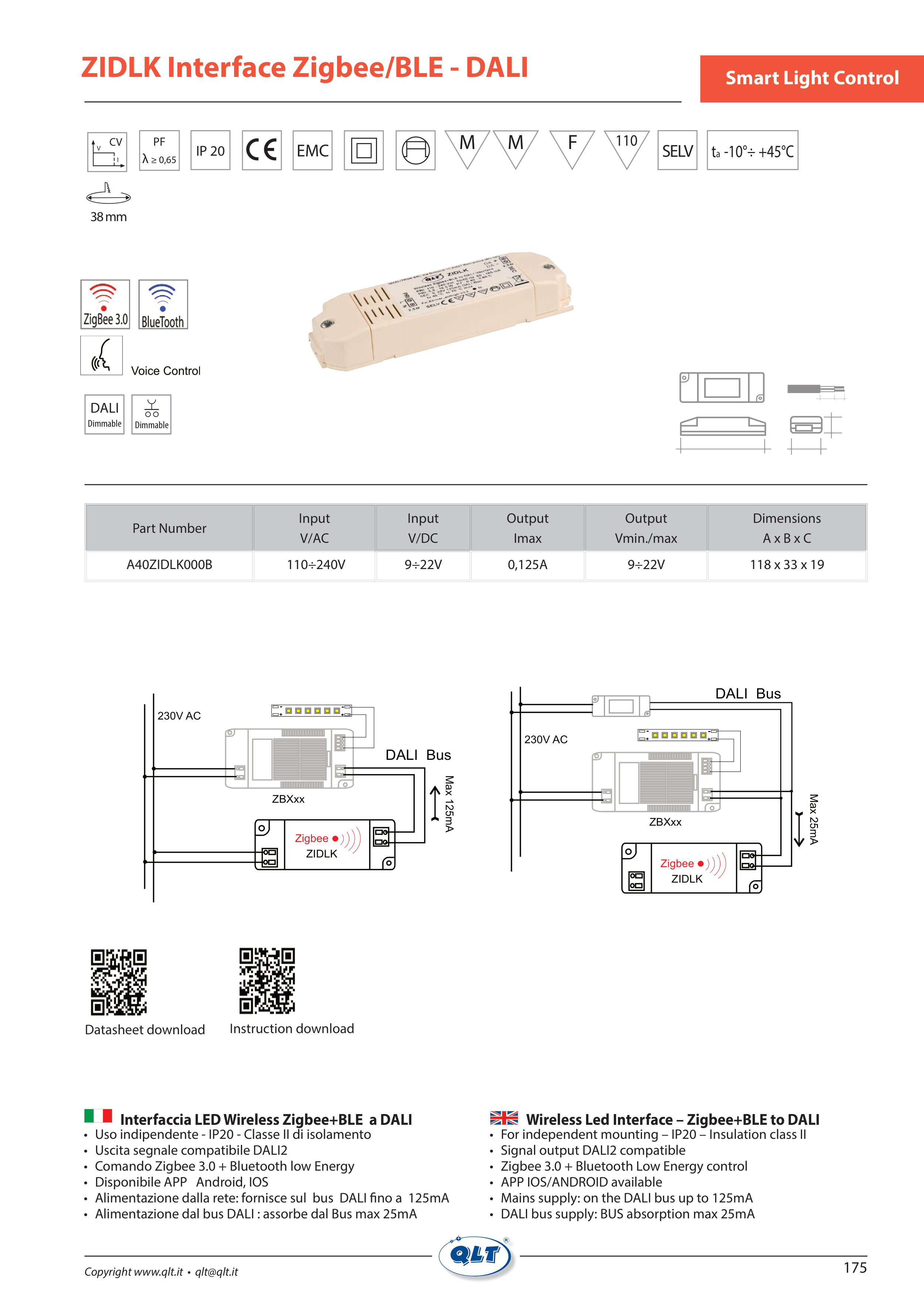

ZIDLK Interface Zigbee/BLE - DALI
Smart Light Control
Dimmable
Interfaccia LED Wireless Zigbee+BLE a DALI
• Uso indipendente - IP20 - Classe II di isolamento
• Uscita segnale compatibile DALI2
• Comando Zigbee 3.0 + Bluetooth low Energy
• Disponibile APP Android, IOS
• Alimentazione dalla rete: fornisce sul bus DALI fino a 125mA
• Alimentazione dal bus DALI : assorbe dal Bus max 25mA
Wireless Led Interface – Zigbee+BLE to DALI
• For independent mounting – IP20 – Insulation class II
• Signal output DALI2 compatible
• Zigbee 3.0 + Bluetooth Low Energy control
• APP IOS/ANDROID available
• Mains supply: on the DALI bus up to 125mA
• DALI bus supply: BUS absorption max 25mA
+
+
-
-
+
+
-
-
ZBXxx
ZBXxx
ZIDLK
ZIDLK
DALI Bus
DALI Bus
230V AC
230V AC
Zigbee
Zigbee
Max 125mA
Max 25mA
PF
λ ≥ 0,65
IP 20
EMC
M
M
F
38 mm
110
SELV
ta -10°÷ +45°C
V
I
CV
DALI
Dimmable
Part Number
Input
V/AC
Input
V/DC
Output
Imax
Output
Vmin./max
Dimensions
A x B x C
A40ZIDLK000B
110÷240V
9÷22V
0,125A
9÷22V
118 x 33 x 19
