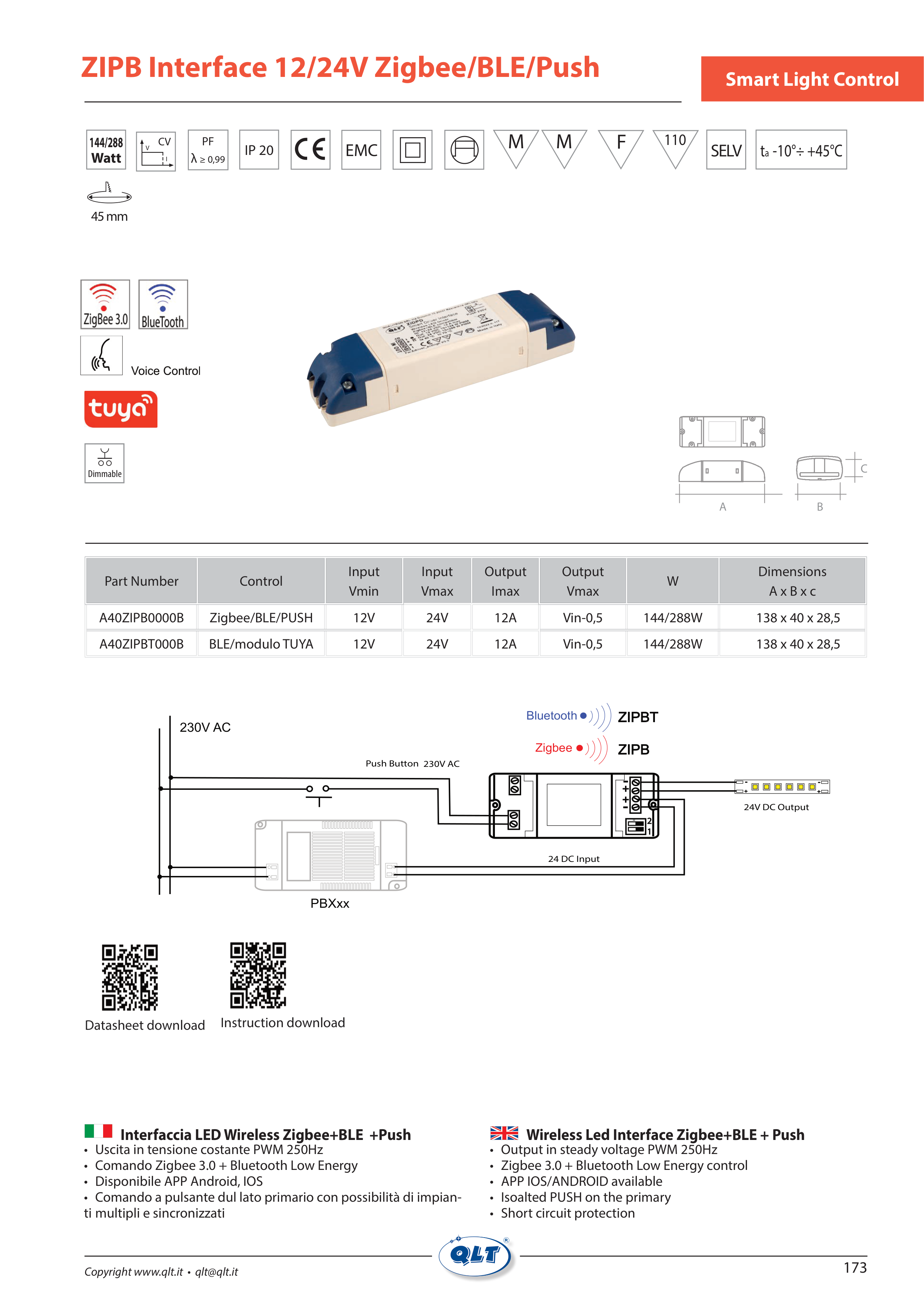

ZIPB Interface 12/24V Zigbee/BLE/Push
Smart Light Control
Interfaccia LED Wireless Zigbee+BLE +Push
• Uscita in tensione costante PWM 250Hz
• Comando Zigbee 3.0 + Bluetooth Low Energy
• Disponibile APP Android, IOS
• Comando a pulsante dul lato primario con possibilità di impian-
ti multipli e sincronizzati
Wireless Led Interface Zigbee+BLE + Push
• Output in steady voltage PWM 250Hz
• Zigbee 3.0 + Bluetooth Low Energy control
• APP IOS/ANDROID available
• Isoalted PUSH on the primary
• Short circuit protection
Push Button 230V AC
24 DC Input
24V DC Output
Zigbee
Bluetooth
+
+
-
-
PBXxx
230V AC
-
-
+
+
2
1
ZIPBT
ZIPB
PF
λ ≥ 0,99
IP 20
EMC
M
M
F
45 mm
110
144/288
Watt
SELV
ta -10°÷ +45°C
V
I
CV
Dimmable
A
B
C
Part Number
Control
Input
Vmin
Input
Vmax
Output
Imax
Output
Vmax
W
Dimensions
A x B x c
A40ZIPB0000B
Zigbee/BLE/PUSH
12V
24V
12A
Vin-0,5
144/288W
138 x 40 x 28,5
A40ZIPBT000B
BLE/modulo TUYA
12V
24V
12A
Vin-0,5
144/288W
138 x 40 x 28,5
Datasheet download
Instruction download
