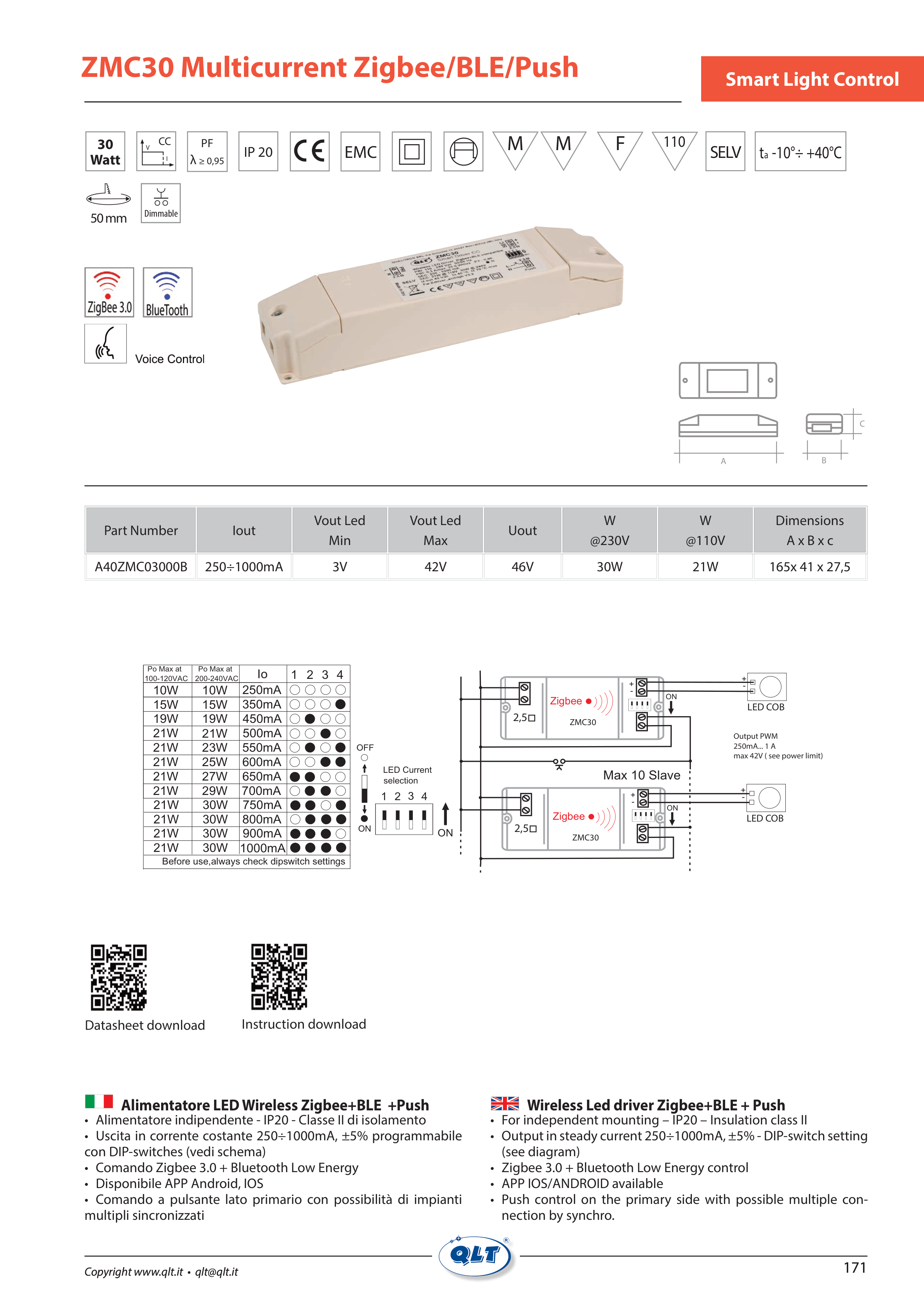

ZMC30 Multicurrent Zigbee/BLE/Push
Copyright www.qlt.it • qlt@qlt.it
171
Light Control
Smart Light Control
Alimentatore LED Wireless Zigbee+BLE +Push
• Alimentatore indipendente - IP20 - Classe II di isolamento
• Uscita in corrente costante 250÷1000mA, ±5% programmabile
con DIP-switches (vedi schema)
• Comando Zigbee 3.0 + Bluetooth Low Energy
• Disponibile APP Android, IOS
• Comando a pulsante lato primario con possibilità di impianti
multipli sincronizzati
Wireless Led driver Zigbee+BLE + Push
• For independent mounting – IP20 – Insulation class II
• Output in steady current 250÷1000mA, ±5% - DIP-switch setting
(see diagram)
• Zigbee 3.0 + Bluetooth Low Energy control
• APP IOS/ANDROID available
• Push control on the primary side with possible multiple con-
nection by synchro.
B
A
Io
10W
250mA
350mA
500mA
450mA
600mA
650mA
750mA
900mA
700mA
800mA
1000mA
550mA
Po Max at
100-120VAC
Po Max at
200-240VAC
10W
15W
21W
19W
23W
25W
27W
30W
30W
29W
30W
30W
15W
19W
21W
21W
21W
21W
21W
21W
21W
21W
21W
1 2 3 4
Before use,always check dipswitch settings
ON
OFF
1 2 3 4
ON
LED Current
selection
Output PWM
250mA... 1 A
max 42V ( see power limit)
ZMC30
ZMC30
-
-
+
+
LED COB
LED COB
ON
ON
2,5
2,5
-
-
+
+
Max 10 Slave
Zigbee
Zigbee
PF
λ ≥ 0,95
IP 20
EMC
M
M
F
50 mm
110
30
Watt
SELV
ta -10°÷ +40°C
V
I
CC
C
Dimmable
Part Number
Iout
Vout Led
Min
Vout Led
Max
Uout
W
@230V
W
@110V
Dimensions
A x B x c
A40ZMC03000B
250÷1000mA
3V
42V
46V
30W
21W
165x 41 x 27,5
Datasheet download
Instruction download
