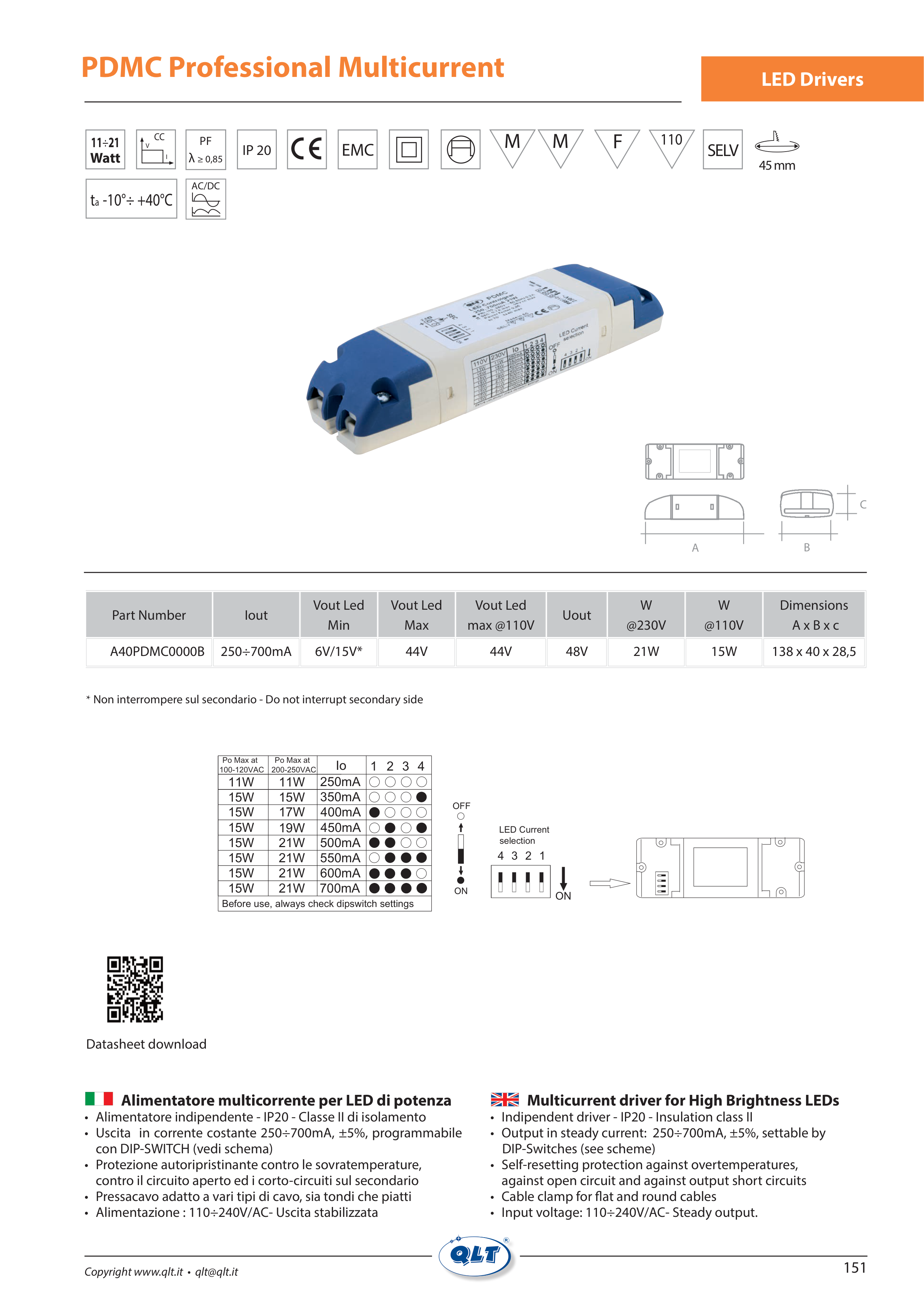

PDMC Professional Multicurrent
LED Drivers
11÷21
Watt
EMC
PF
λ ≥ 0,85
M
M
F
45 mm
V
I
CC
IP 20
SELV
110
Alimentatore multicorrente per LED di potenza
• Alimentatore indipendente - IP20 - Classe II di isolamento
• Uscita in corrente costante 250÷700mA, ±5%, programmabile
con DIP-SWITCH (vedi schema)
• Protezione autoripristinante contro le sovratemperature,
contro il circuito aperto ed i corto-circuiti sul secondario
• Pressacavo adatto a vari tipi di cavo, sia tondi che piatti
• Alimentazione : 110÷240V/AC- Uscita stabilizzata
Multicurrent driver for High Brightness LEDs
• Indipendent driver - IP20 - Insulation class II
• Output in steady current: 250÷700mA, ±5%, settable by
DIP-Switches (see scheme)
• Self-resetting protection against overtemperatures,
against open circuit and against output short circuits
• Cable clamp for flat and round cables
• Input voltage: 110÷240V/AC- Steady output.
C
A
B
ta -10°÷ +40°C
AC/DC
Io
11W
250mA
350mA
450mA
400mA
550mA
600mA
700mA
500mA
Po Max at
100-120VAC
Po Max at
200-250VAC
11W
15W
19W
17W
21W
21W
21W
21W
15W
15W
15W
15W
15W
15W
15W
1 2 3 4
Before use, always check dipswitch settings
ON
OFF
1
2
3
4
ON
LED Current
selection
* Non interrompere sul secondario - Do not interrupt secondary side
Part Number
Iout
Vout Led
Min
Vout Led
Max
Vout Led
max @110V
Uout
W
@230V
W
@110V
Dimensions
A x B x c
A40PDMC0000B
250÷700mA
6V/15V*
44V
44V
48V
21W
15W
138 x 40 x 28,5
