15

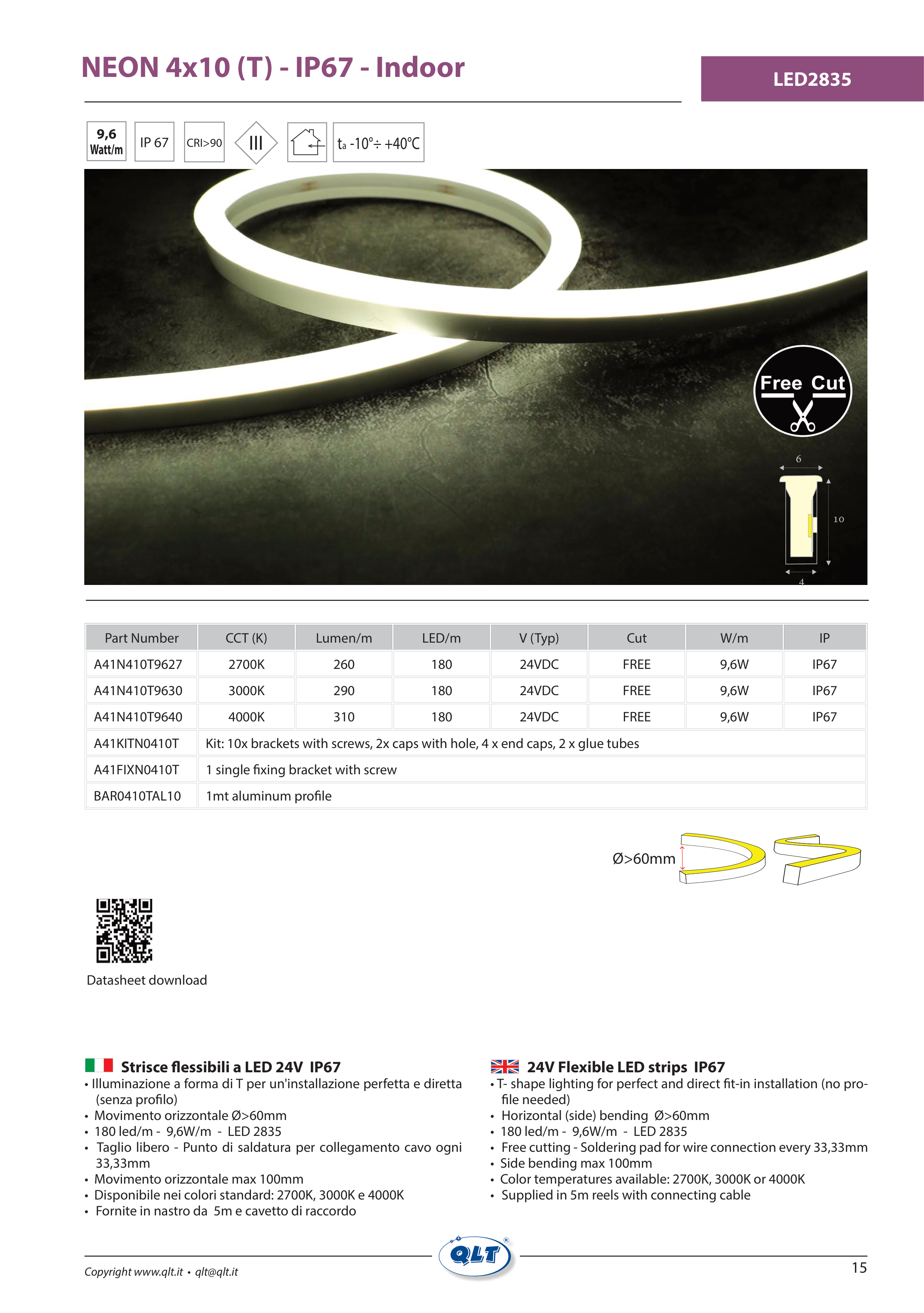

NEON 4x10 (T) - IP67 - Indoor
LED2835
Strisce flessibili a LED 24V IP67
• Illuminazione a forma di T per un'installazione perfetta e diretta
(senza profilo)
• Movimento orizzontale Ø>60mm
• 180 led/m - 9,6W/m - LED 2835
• Taglio libero - Punto di saldatura per collegamento cavo ogni
33,33mm
• Movimento orizzontale max 100mm
• Disponibile nei colori standard: 2700K, 3000K e 4000K
• Fornite in nastro da 5m e cavetto di raccordo
24V Flexible LED strips IP67
• T- shape lighting for perfect and direct fit-in installation (no pro-
file needed)
• Horizontal (side) bending Ø>60mm
• 180 led/m - 9,6W/m - LED 2835
• Free cutting - Soldering pad for wire connection every 33,33mm
• Side bending max 100mm
• Color temperatures available: 2700K, 3000K or 4000K
• Supplied in 5m reels with connecting cable
9,6
Watt/m
ta -10°÷ +40°C
CRI>90
IP 67
III
Part Number
CCT (K)
Lumen/m
LED/m
V (Typ)
Cut
W/m
IP
A41N410T9627
2700K
260
180
24VDC
FREE
9,6W
IP67
A41N410T9630
3000K
290
180
24VDC
FREE
9,6W
IP67
A41N410T9640
4000K
310
180
24VDC
FREE
9,6W
IP67
A41KITN0410T
Kit: 10x brackets with screws, 2x caps with hole, 4 x end caps, 2 x glue tubes
A41FIXN0410T
1 single fixing bracket with screw
BAR0410TAL10
1mt aluminum profile
Datasheet download
6
10
4
Ø>60mm
