106

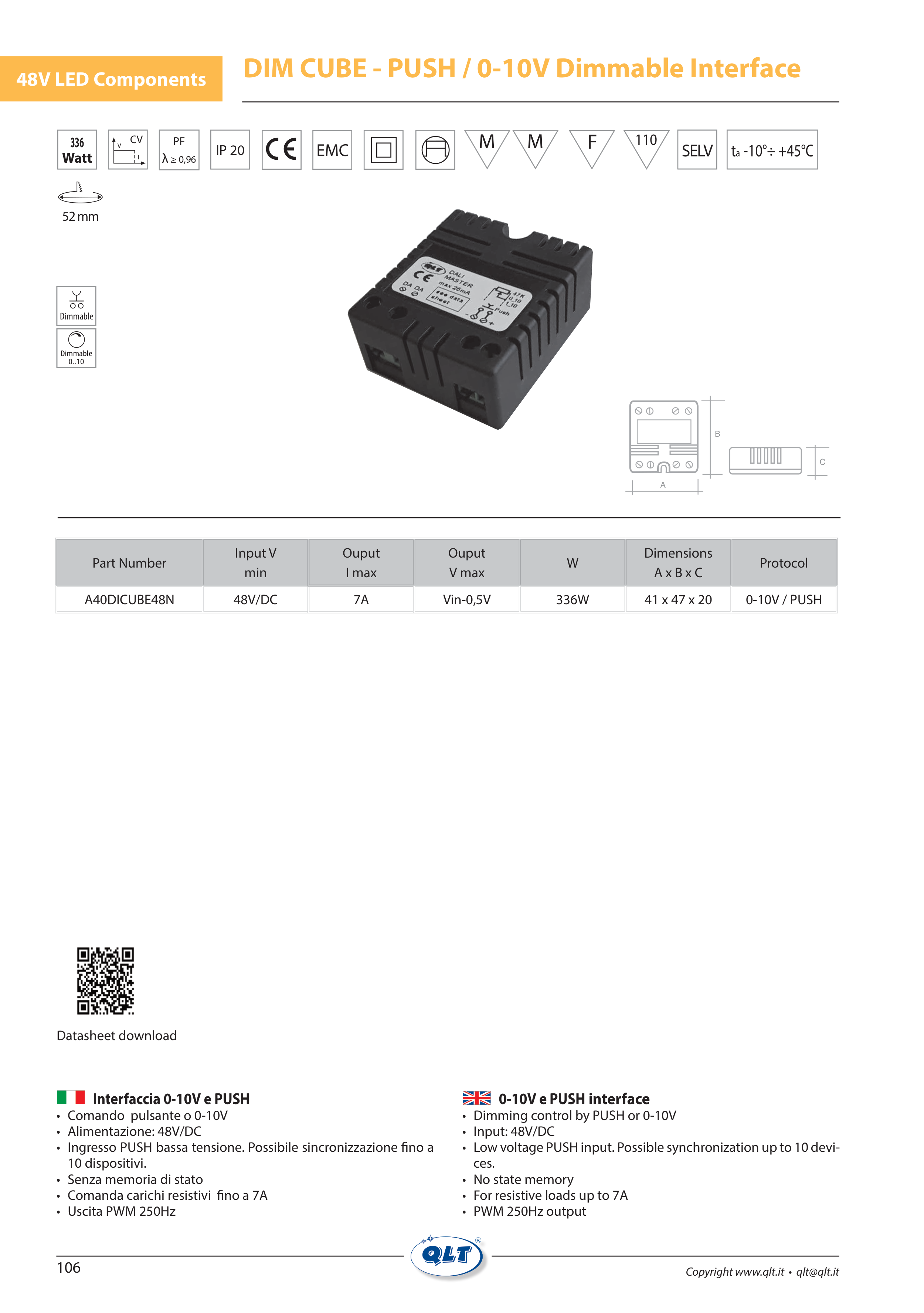

DIM CUBE - PUSH / 0-10V Dimmable Interface
48V LED Components
PF
λ ≥ 0,96
IP 20
A
B
C
EMC
M
M
F
52 mm
110
Interfaccia 0-10V e PUSH
• Comando pulsante o 0-10V
• Alimentazione: 48V/DC
• Ingresso PUSH bassa tensione. Possibile sincronizzazione fino a
10 dispositivi.
• Senza memoria di stato
• Comanda carichi resistivi fino a 7A
• Uscita PWM 250Hz
0-10V e PUSH interface
• Dimming control by PUSH or 0-10V
• Input: 48V/DC
• Low voltage PUSH input. Possible synchronization up to 10 devi-
ces.
• No state memory
• For resistive loads up to 7A
• PWM 250Hz output
336
Watt
SELV
V
I
CV
Dimmable
Dimmable
0..10
ta -10°÷ +45°C
Part Number
Input V
min
Ouput
I max
Ouput
V max
W
Dimensions
A x B x C
Protocol
A40DICUBE48N
48V/DC
7A
Vin-0,5V
336W
41 x 47 x 20
0-10V / PUSH
Datasheet download
