Floodlight for outdoor installation on a façade/
wall, with 355° swivel base and allowing horizontal
adjustment of +90° / -40°. Phospho-chromatised
and polyester powder coated die-cast copper-free
aluminium base and head, tempered safety glass,
moulded silicone gaskets and o-rings, with screws in
stainless steel. Swivel joint with graduated scale and
mechanical aiming lock. Built-in LED driver, with 36
CREE “XP-G2” LED. IP66 rating.

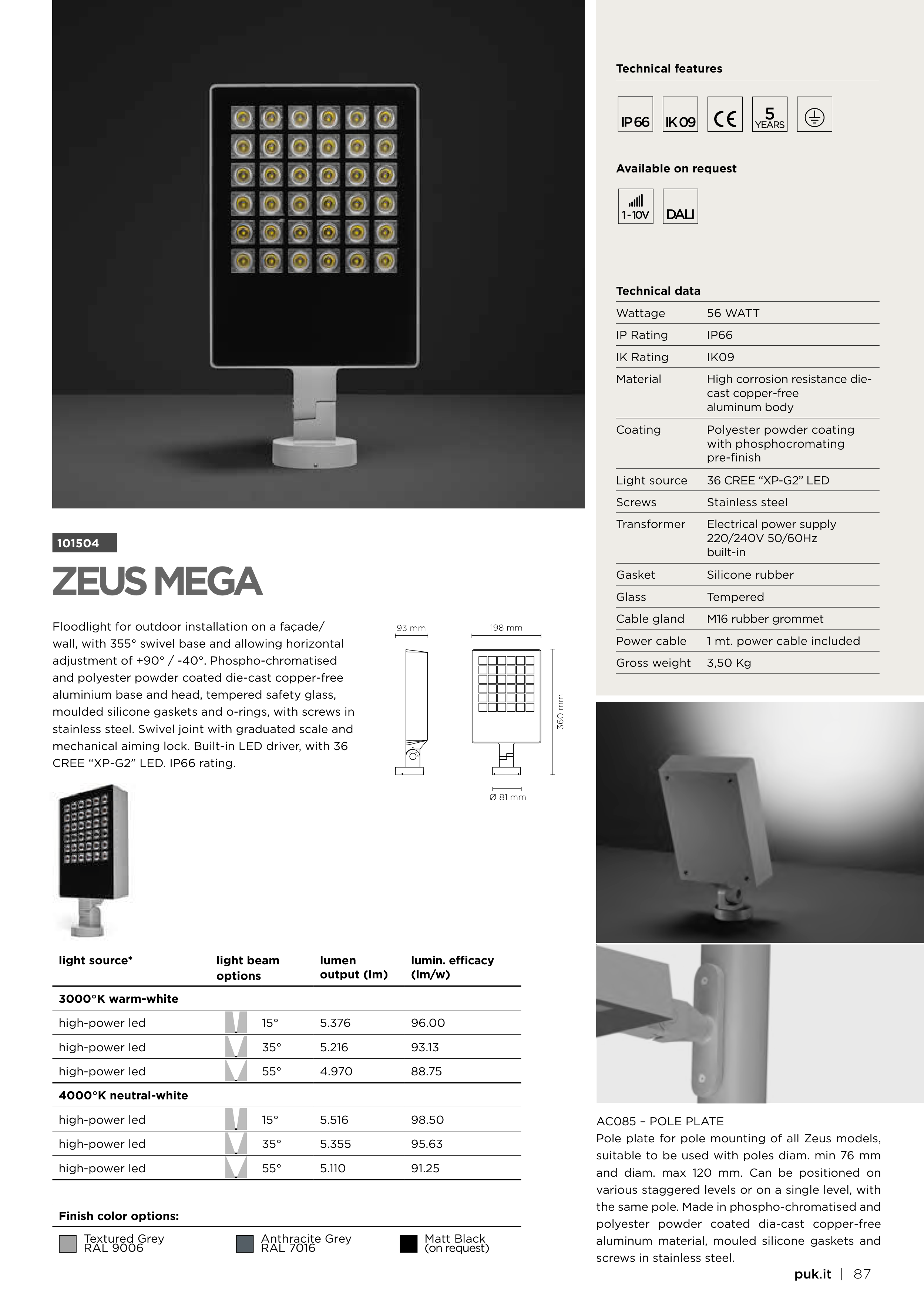

ZEUS MEGA
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101504
Technical features
5
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
15°
5.376
96.00
high-power led
35°
5.216
93.13
high-power led
55°
4.970
88.75
4000°K neutral-white
high-power led
15°
5.516
98.50
high-power led
35°
5.355
95.63
high-power led
55°
5.110
91.25
Technical data
Wattage
56 WATT
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance die-
cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
36 CREE “XP-G2” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
1 mt. power cable included
Gross weight
3,50 Kg
198 mm
Ø 81 mm
360 mm
93 mm
DALI
1 - 10V
Available on request
AC085 – POLE PLATE
Pole plate for pole mounting of all Zeus models,
suitable to be used with poles diam. min 76 mm
and diam. max 120 mm. Can be positioned on
various staggered levels or on a single level, with
the same pole. Made in phospho-chromatised and
polyester powder coated dia-cast copper-free
aluminum material, mouled silicone gaskets and
screws in stainless steel.
