puk.it | 79
Floodlight for outdoor installation on a façade/wall,
with 355° swivel base and allowing horizontal adjustment
of +90° / -40°. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone gaskets
and o-rings, with screws in stainless steel. Swivel joint
with graduated scale and mechanical aiming lock.
Built-in LED driver, with 12 CREE “XP-G2” LED. IP66 rating.

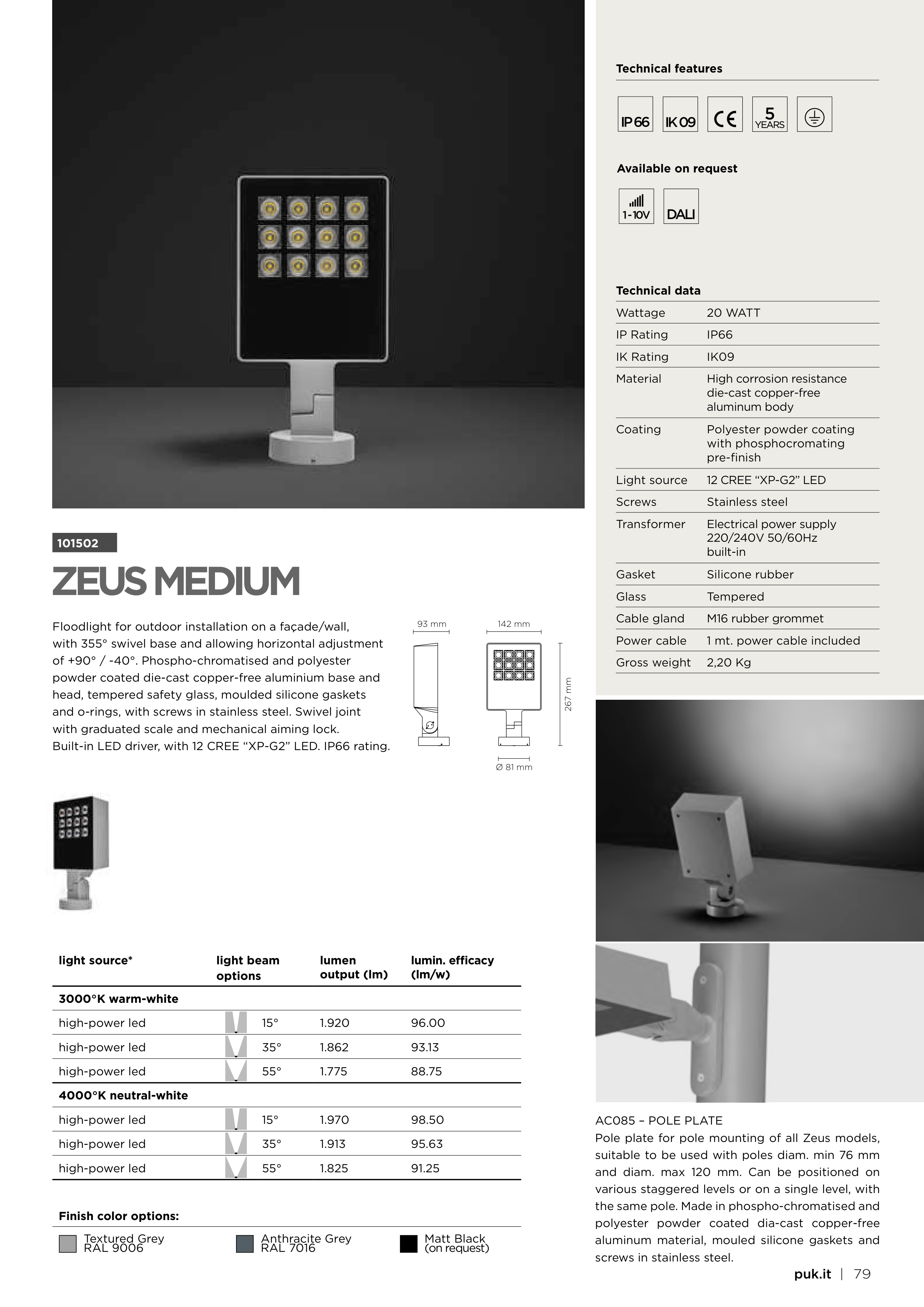

ZEUS MEDIUM
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101502
Technical features
5
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
15°
1.920
96.00
high-power led
35°
1.862
93.13
high-power led
55°
1.775
88.75
4000°K neutral-white
high-power led
15°
1.970
98.50
high-power led
35°
1.913
95.63
high-power led
55°
1.825
91.25
Technical data
Wattage
20 WATT
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
12 CREE “XP-G2” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
1 mt. power cable included
Gross weight
2,20 Kg
142 mm
Ø 81 mm
267 mm
93 mm
DALI
1 - 10V
Available on request
AC085 – POLE PLATE
Pole plate for pole mounting of all Zeus models,
suitable to be used with poles diam. min 76 mm
and diam. max 120 mm. Can be positioned on
various staggered levels or on a single level, with
the same pole. Made in phospho-chromatised and
polyester powder coated dia-cast copper-free
aluminum material, mouled silicone gaskets and
screws in stainless steel.
