70 | puk.it
AC0110
HONEYCOMB
LOUVER
AC044
SPIKE
AC111
VISOR
Projector for outdoor installation on a façade/
wall. Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium, tempered
safety glass, moulded silicone gasket and stainless
steel screws. With 1 direct 220-240V LUMENS
“EDC 38C” COB LED. IP66 rating.

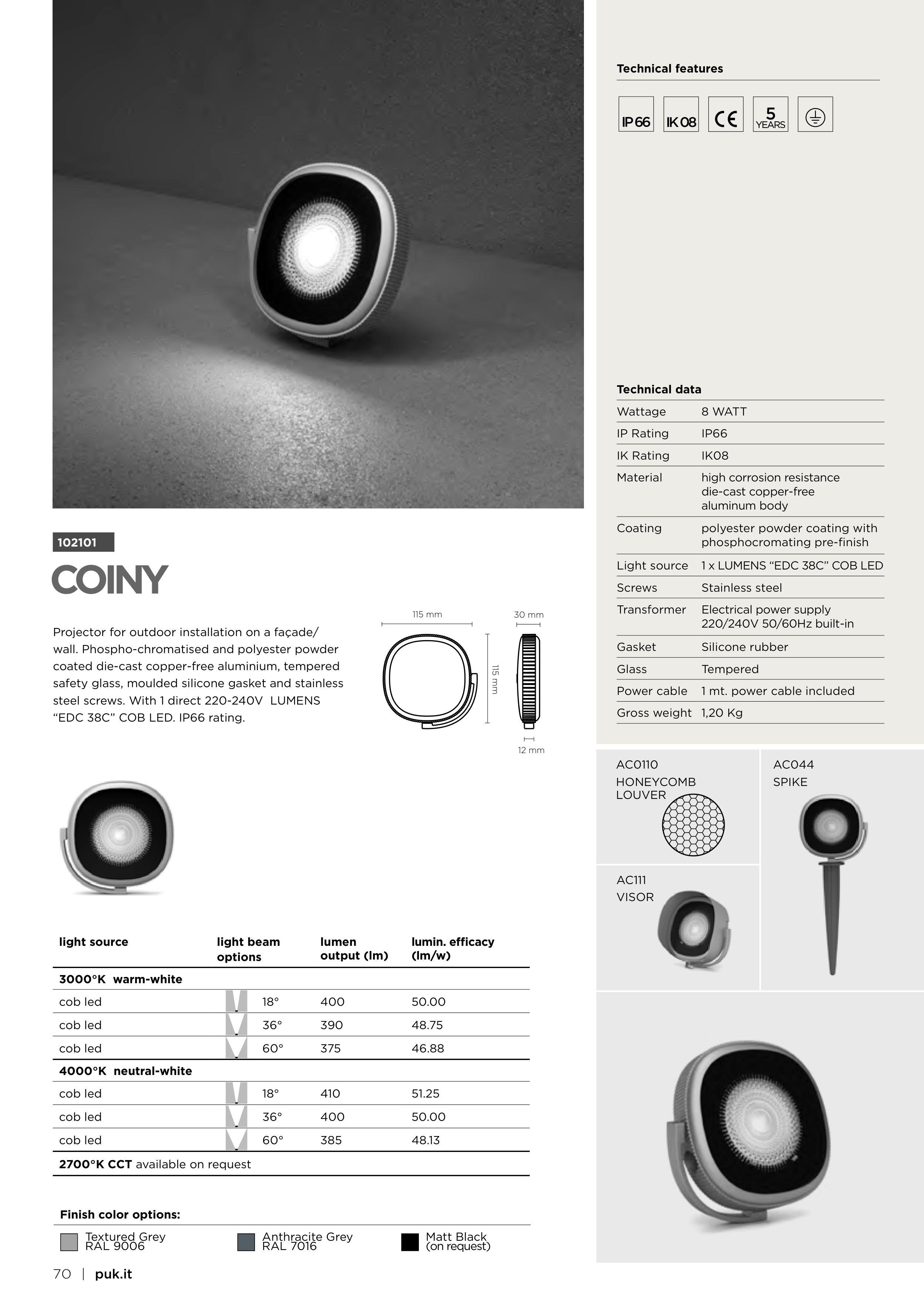

COINY
102101
Technical data
Wattage
8 WATT
IP Rating
IP66
IK Rating
IK08
Material
high corrosion resistance
die-cast copper-free
aluminum body
Coating
polyester powder coating with
phosphocromating pre-finish
Light source
1 x LUMENS “EDC 38C” COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
1,20 Kg
Technical features
5
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
18°
400
50.00
cob led
36°
390
48.75
cob led
60°
375
46.88
4000°K neutral-white
cob led
18°
410
51.25
cob led
36°
400
50.00
cob led
60°
385
48.13
2700°K CCT available on request
12 mm
115 mm
30 mm
115 mm
