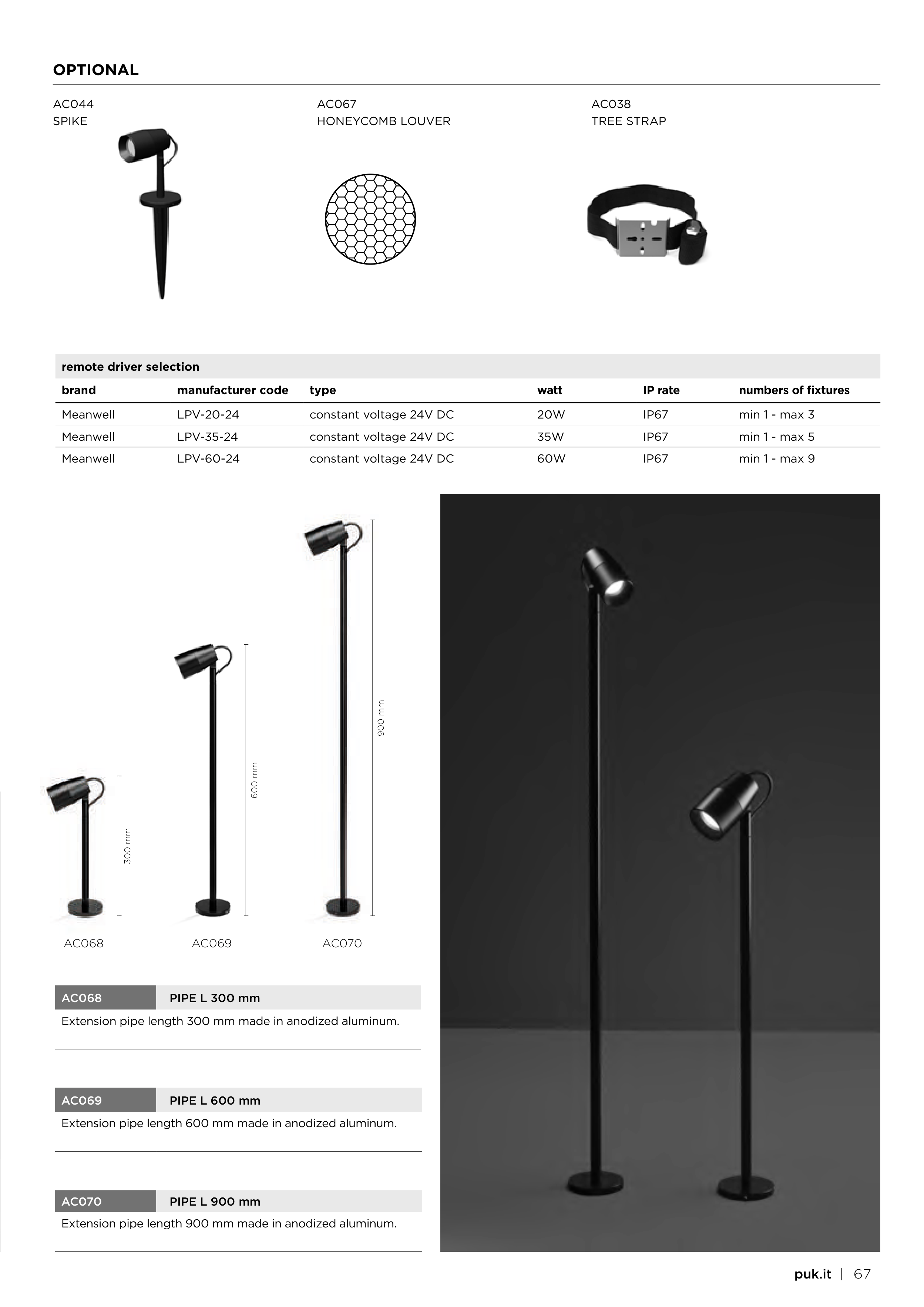

puk.it | 67
Technical data
Wattage
6 WATT
IP Rating
IP66
IK Rating
IK08
Material
Turned and hard anodized
aluminum
Light source
1 x CREE “XHP35” LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
1,80 Kg
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-20-24
constant voltage 24V DC
20W
IP67
min 1 - max 3
Meanwell
LPV-35-24
constant voltage 24V DC
35W
IP67
min 1 - max 5
Meanwell
LPV-60-24
constant voltage 24V DC
60W
IP67
min 1 - max 9
AC068
PIPE L 300 mm
Extension pipe length 300 mm made in anodized aluminum.
AC069
PIPE L 600 mm
Extension pipe length 600 mm made in anodized aluminum.
AC070
PIPE L 900 mm
Extension pipe length 900 mm made in anodized aluminum.
300 mm
600 mm
900 mm
AC068
AC069
AC070
AC044
SPIKE
AC067
HONEYCOMB LOUVER
AC038
TREE STRAP
OPTIONAL
