Technical data
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double nickel-plated brass
cable gland PG11
Power cable
5 mt. neoprene power
cable included
Full technical details of
poles and accessories for
poles are available at the
end of the catalogue

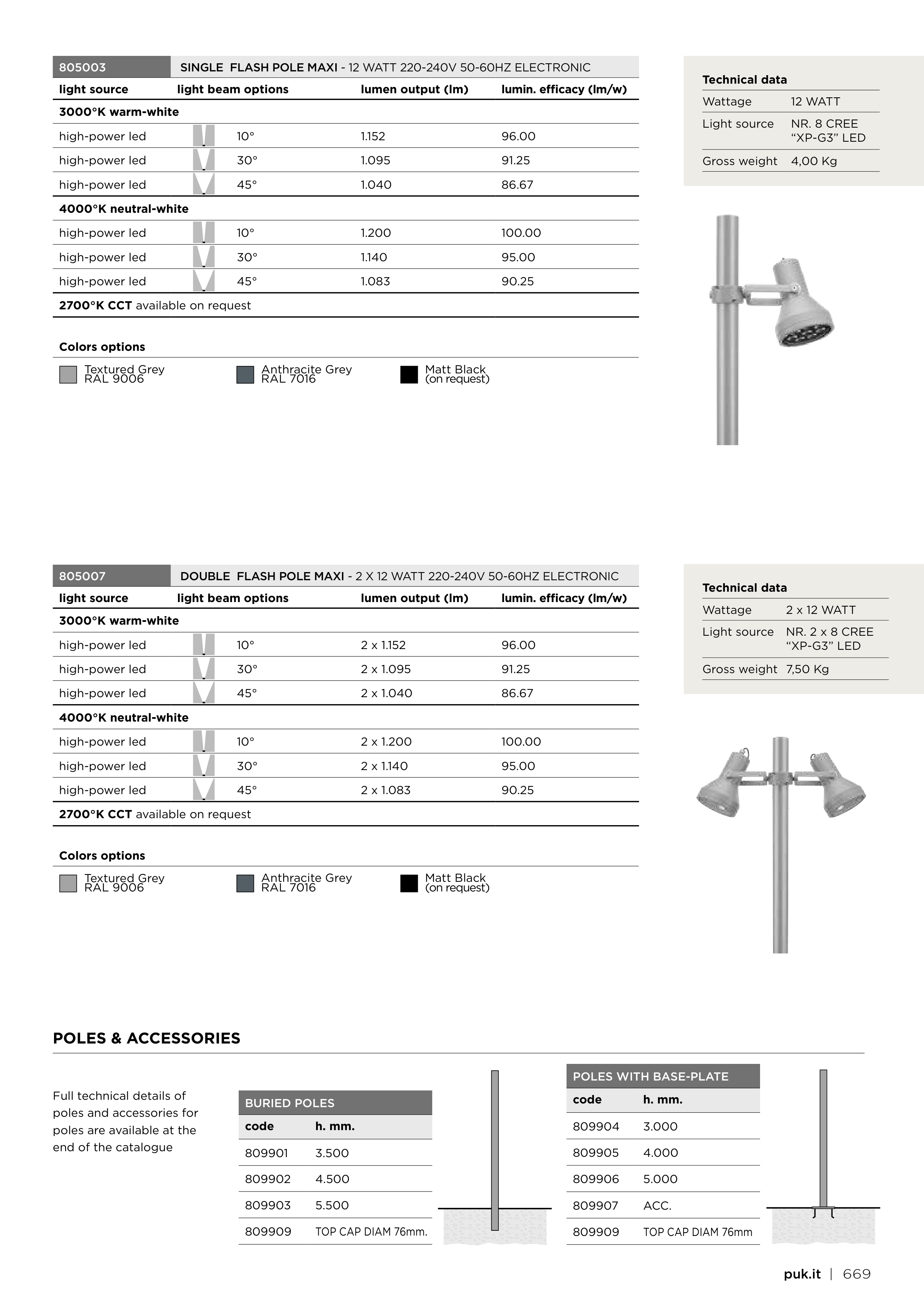

805003
SINGLE FLASH POLE MAXI - 12 WATT 220-240V 50-60HZ ELECTRONIC
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
high-power led
10°
1.152
96.00
high-power led
30°
1.095
91.25
high-power led
45°
1.040
86.67
4000°K neutral-white
high-power led
10°
1.200
100.00
high-power led
30°
1.140
95.00
high-power led
45°
1.083
90.25
2700°K CCT available on request
805007
DOUBLE FLASH POLE MAXI - 2 X 12 WATT 220-240V 50-60HZ ELECTRONIC
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
high-power led
10°
2 x 1.152
96.00
high-power led
30°
2 x 1.095
91.25
high-power led
45°
2 x 1.040
86.67
4000°K neutral-white
high-power led
10°
2 x 1.200
100.00
high-power led
30°
2 x 1.140
95.00
high-power led
45°
2 x 1.083
90.25
2700°K CCT available on request
BURIED POLES
code
h. mm.
809901
3.500
809902
4.500
809903
5.500
809909
TOP CAP DIAM 76mm.
POLES WITH BASE-PLATE
code
h. mm.
809904
3.000
809905
4.000
809906
5.000
809907
ACC.
809909
TOP CAP DIAM 76mm
POLES & ACCESSORIES
Technical data
Wattage
12 WATT
Light source
NR. 8 CREE
“XP-G3” LED
Gross weight
4,00 Kg
Technical data
Wattage
2 x 12 WATT
Light source
NR. 2 x 8 CREE
“XP-G3” LED
Gross weight 7,50 Kg
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
