668 | puk.it
Technical data
IP Rating
IP65
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double nickel-plated brass
cable gland PG11
Power cable
5 mt. neoprene power
cable included
AC-027 Anti-glare visor
for hydroflash maxi
Graduated stainless
steel insert

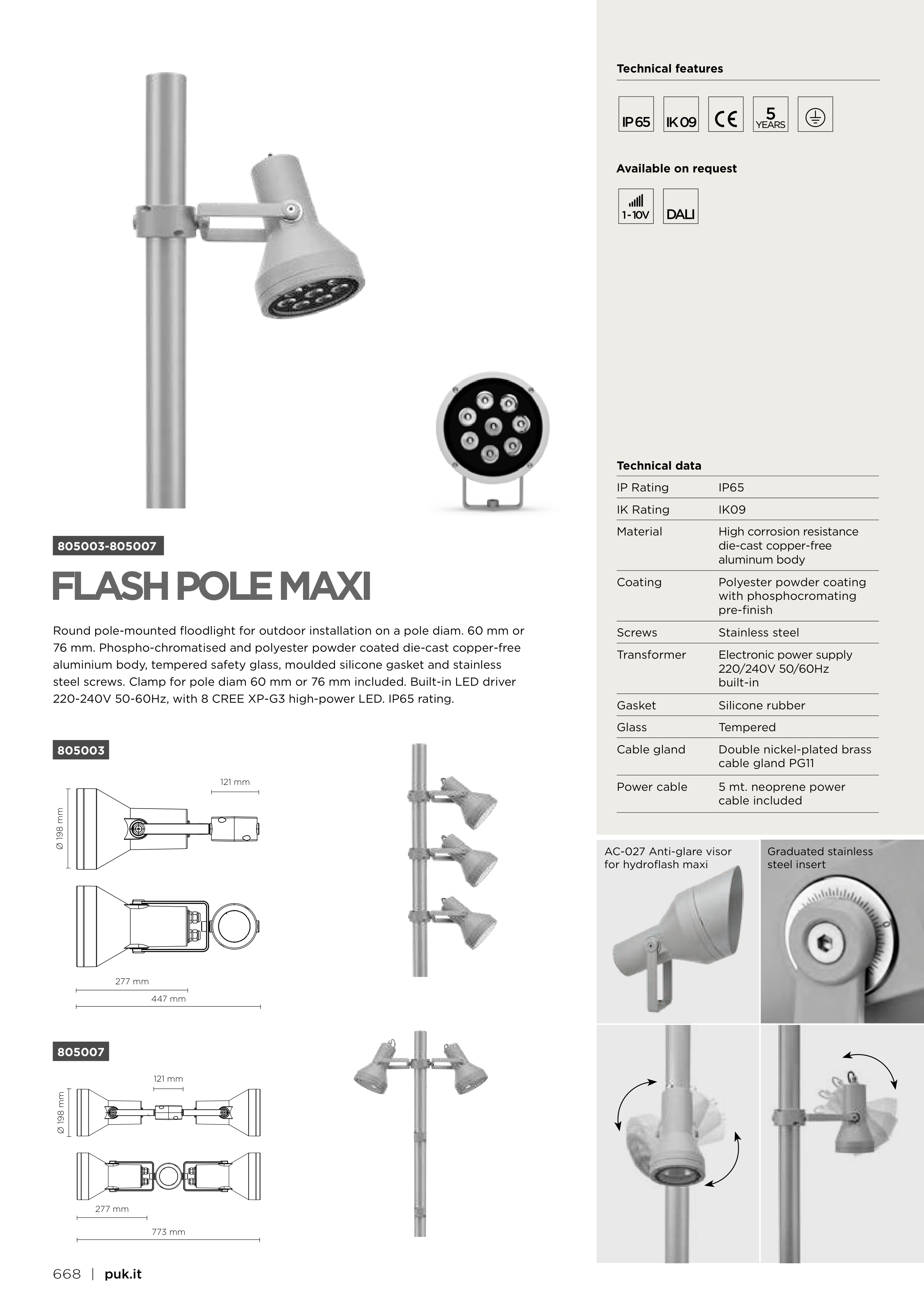

Round pole-mounted floodlight for outdoor installation on a pole diam. 60 mm or
76 mm. Phospho-chromatised and polyester powder coated die-cast copper-free
aluminium body, tempered safety glass, moulded silicone gasket and stainless
steel screws. Clamp for pole diam 60 mm or 76 mm included. Built-in LED driver
220-240V 50-60Hz, with 8 CREE XP-G3 high-power LED. IP65 rating.
121 mm
277 mm
773 mm
Ø 198 mm
805003
805007
FLASH POLE MAXI
121 mm
277 mm
447 mm
Ø 198 mm
Technical features
5
805003-805007
DALI
1 - 10V
Available on request
