656 | puk.it
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm,
with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°.
Phospho-chromatised and polyester powder coated die-cast copper-free aluminium
base and head, tempered safety glass, moulded silicone gaskets and o-rings,
with screws in stainless steel. Swivel pole joint with graduated scale and mechanical
aiming lock. Built-in LED driver, with 12 x CREE “XH-P 35” LED. IP66 rating.

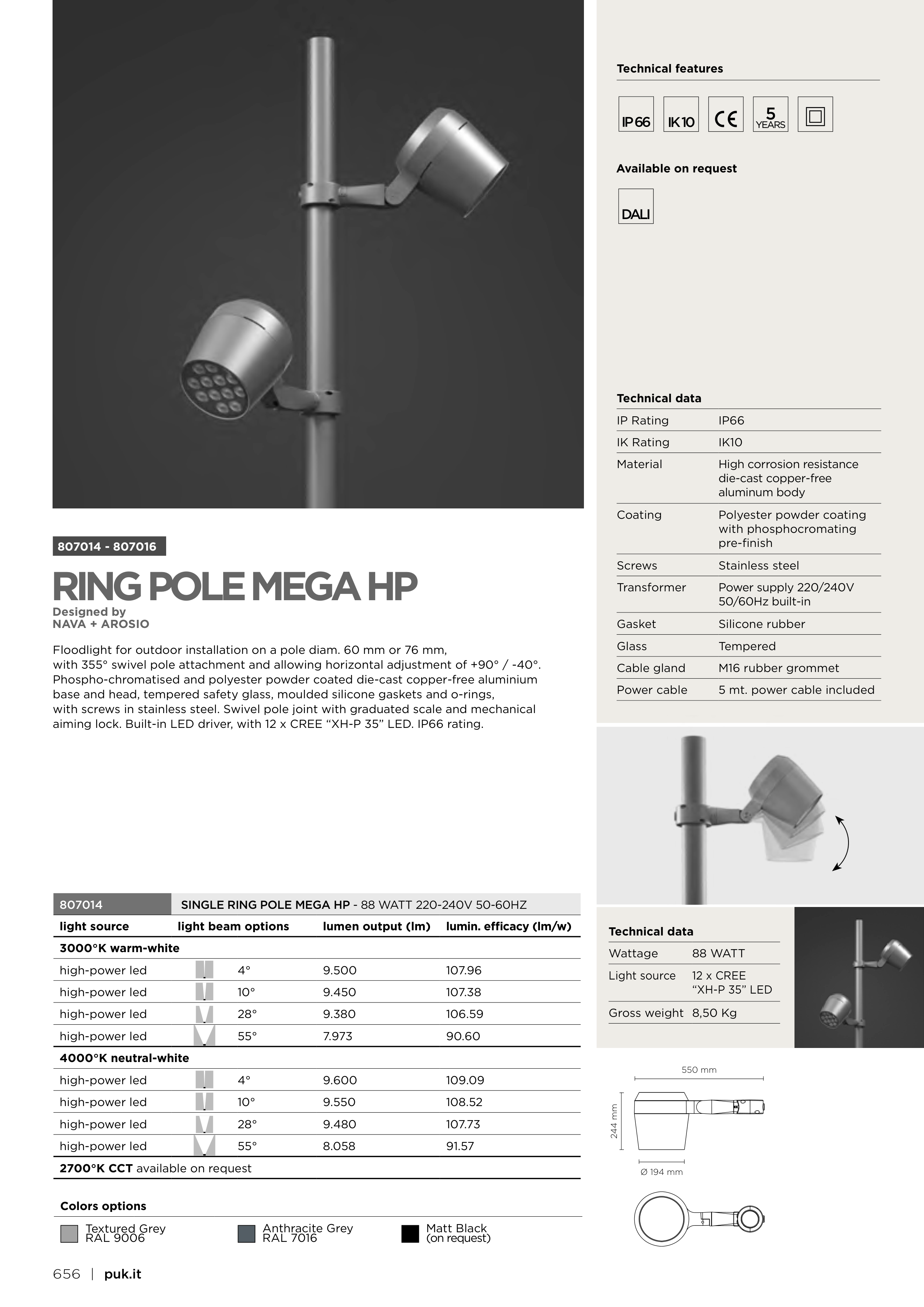

RING POLE MEGA HP
Technical data
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Power supply 220/240V
50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
5 mt. power cable included
807014
SINGLE RING POLE MEGA HP - 88 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
high-power led
4°
9.500
107.96
high-power led
10°
9.450
107.38
high-power led
28°
9.380
106.59
high-power led
55°
7.973
90.60
4000°K neutral-white
high-power led
4°
9.600
109.09
high-power led
10°
9.550
108.52
high-power led
28°
9.480
107.73
high-power led
55°
8.058
91.57
2700°K CCT available on request
807014 - 807016
Technical data
Wattage
88 WATT
Light source
12 x CREE
“XH-P 35” LED
Gross weight 8,50 Kg
Technical features
5
Designed by
NAVA + AROSIO
244 mm
Ø 194 mm
550 mm
DALI
Available on request
