Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm,
with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°.
Phospho-chromatised and polyester powder coated die-cast copper-free aluminium
base and head, tempered safety glass, moulded silicone gaskets and o-rings,
with screws in stainless steel. Swivel pole joint with graduated scale and mechanical
aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

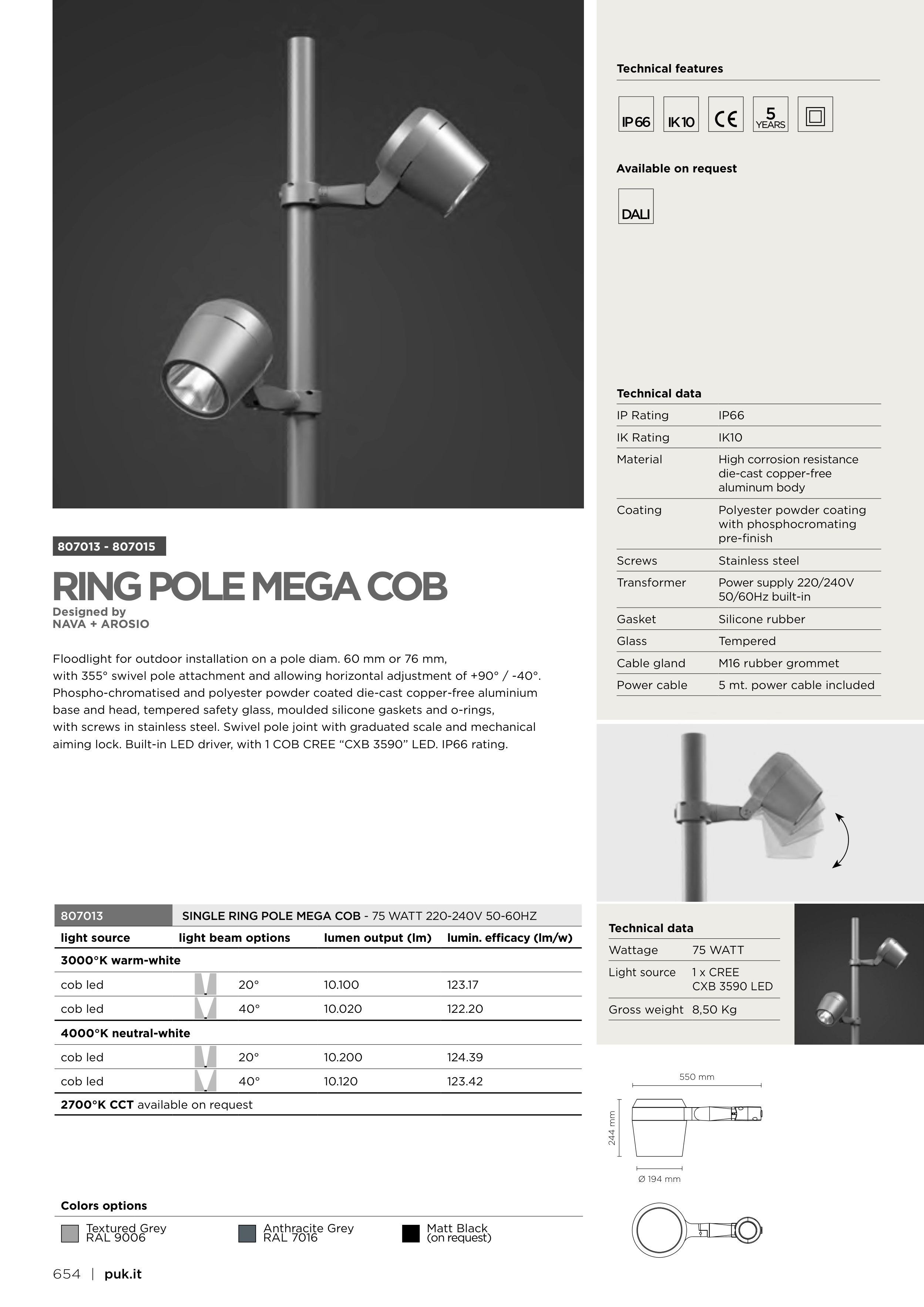

RING POLE MEGA COB
Technical data
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Power supply 220/240V
50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
5 mt. power cable included
807013 - 807015
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
807013
SINGLE RING POLE MEGA COB - 75 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
cob led
20°
10.100
123.17
cob led
40°
10.020
122.20
4000°K neutral-white
cob led
20°
10.200
124.39
cob led
40°
10.120
123.42
2700°K CCT available on request
Technical data
Wattage
75 WATT
Light source
1 x CREE
CXB 3590 LED
Gross weight 8,50 Kg
Technical features
5
Designed by
NAVA + AROSIO
244 mm
Ø 194 mm
550 mm
DALI
Available on request
