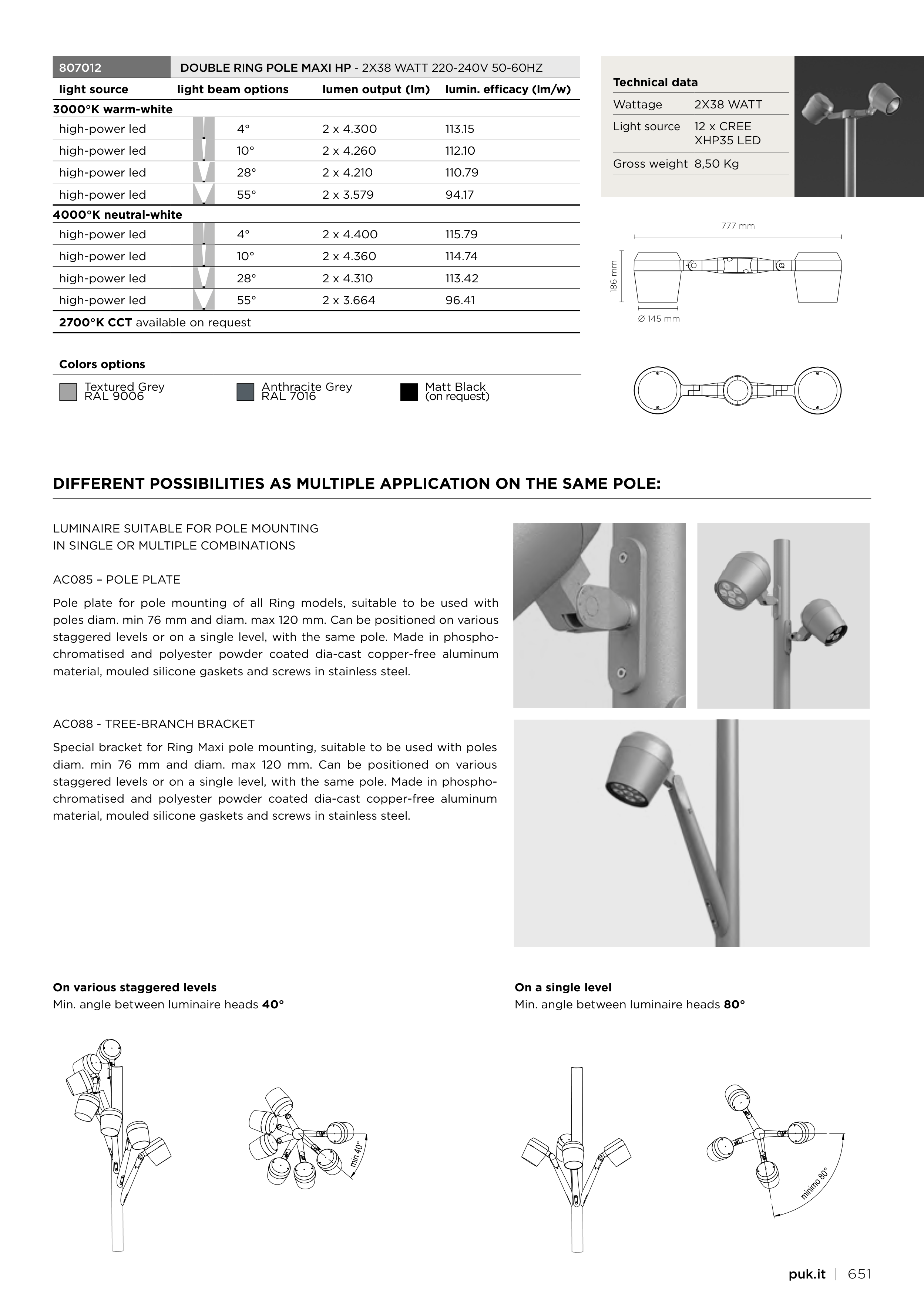

puk.it | 651
186 mm
777 mm
Ø 145 mm
Technical data
Wattage
2X38 WATT
Light source
12 x CREE
XHP35 LED
Gross weight 8,50 Kg
807012
DOUBLE RING POLE MAXI HP - 2X38 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
high-power led
4°
2 x 4.300
113.15
high-power led
10°
2 x 4.260
112.10
high-power led
28°
2 x 4.210
110.79
high-power led
55°
2 x 3.579
94.17
4000°K neutral-white
high-power led
4°
2 x 4.400
115.79
high-power led
10°
2 x 4.360
114.74
high-power led
28°
2 x 4.310
113.42
high-power led
55°
2 x 3.664
96.41
2700°K CCT available on request
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
DIFFERENT POSSIBILITIES AS MULTIPLE APPLICATION ON THE SAME POLE:
AC088 - TREE-BRANCH BRACKET
Special bracket for Ring Maxi pole mounting, suitable to be used with poles
diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
LUMINAIRE SUITABLE FOR POLE MOUNTING
IN SINGLE OR MULTIPLE COMBINATIONS
AC085 – POLE PLATE
Pole plate for pole mounting of all Ring models, suitable to be used with
poles diam. min 76 mm and diam. max 120 mm. Can be positioned on various
staggered levels or on a single level, with the same pole. Made in phospho-
chromatised and polyester powder coated dia-cast copper-free aluminum
material, mouled silicone gaskets and screws in stainless steel.
On various staggered levels
Min. angle between luminaire heads 40°
On a single level
Min. angle between luminaire heads 80°
min 40°
min 40°
minimo 80°
minimo 80°
