NEW AESTHETIC POLE ATTACHMENT
AVAILABLE ON REQUEST
AC085 – POLE PLATE
Pole plate for pole mounting of all Ring
models, suitable to be used with poles diam.
min 76 mm and diam. max 120 mm. Can be
positioned on various staggered levels or on
a single level, with the same pole. Made in
phospho-chromatised and polyester powder
coated
dia-cast
copper-free
aluminum
material, mouled silicone gaskets and screws
in stainless steel.
Floodlight for outdoor installation on a pole diam. 60 mm or 76 mm,
with 355° swivel pole attachment and allowing horizontal adjustment of +90° / -40°.
Phospho-chromatised and polyester powder coated die-cast copper-free aluminium
base and head, tempered safety glass, moulded silicone gaskets and o-rings,
with screws in stainless steel. Swivel pole joint with graduated scale and mechanical
aiming lock. Built-in LED driver, with 1 x CREE XHP35 LED. IP66 rating.

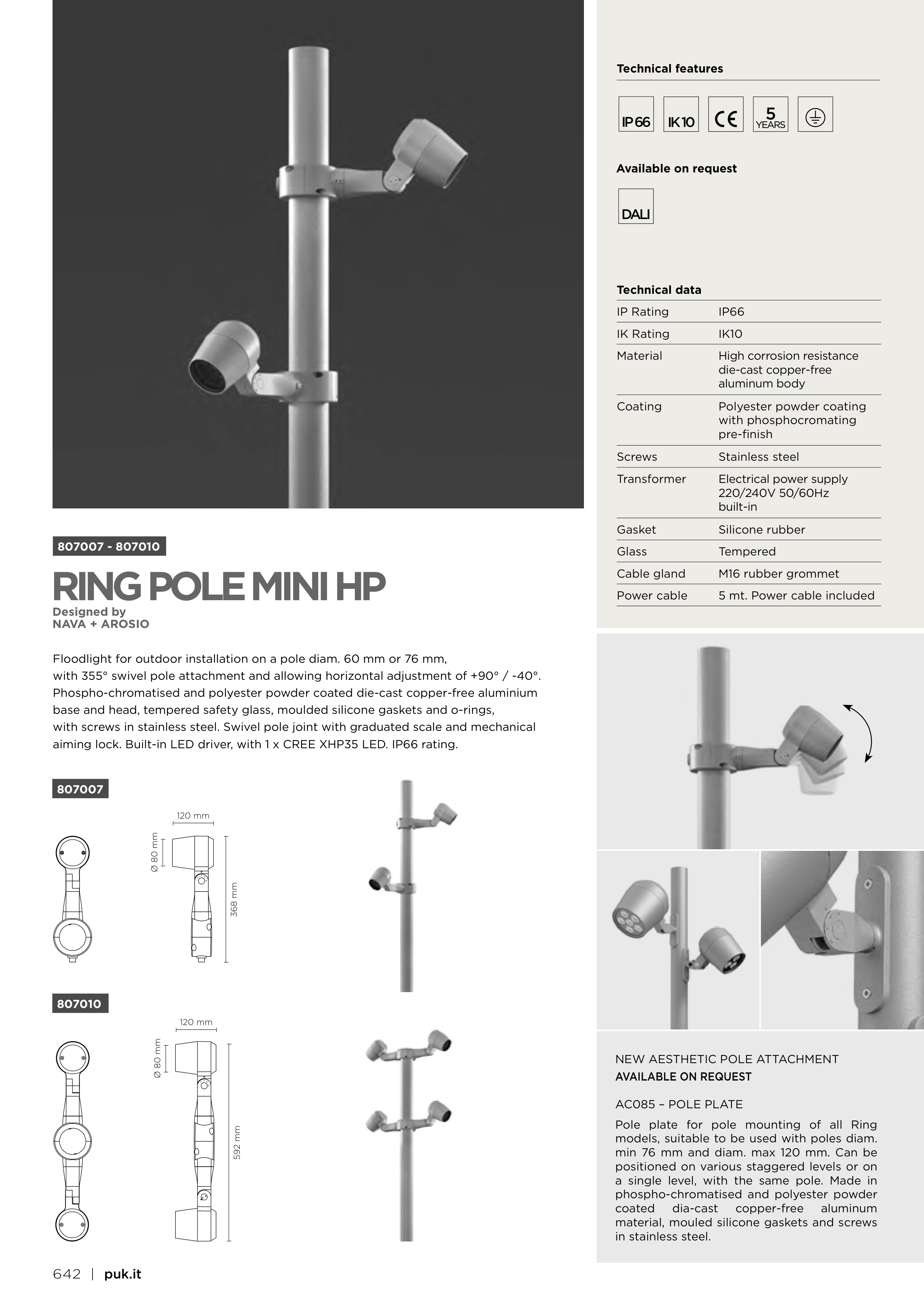

RING POLE MINI HP
Technical data
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
5 mt. Power cable included
Technical features
5
807007 - 807010
807007
807010
120 mm
368 mm
Ø 80 mm
120 mm
592 mm
Ø 80 mm
Designed by
NAVA + AROSIO
DALI
Available on request
