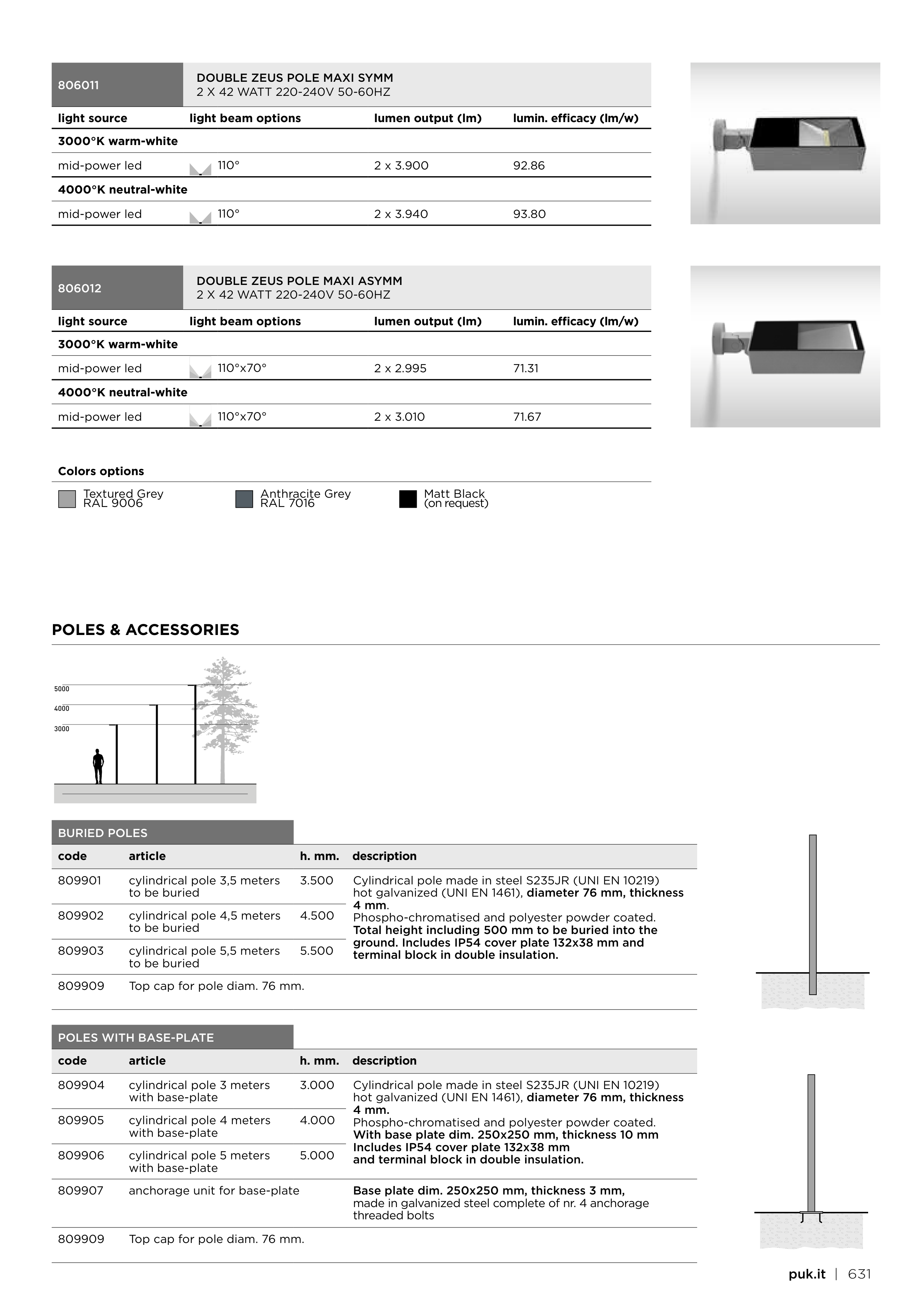

puk.it | 631
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
BURIED POLES
code
article
h. mm.
description
809901
cylindrical pole 3,5 meters
to be buried
3.500
Cylindrical pole made in steel S235JR (UNI EN 10219)
hot galvanized (UNI EN 1461), diameter 76 mm, thickness
4 mm.
Phospho-chromatised and polyester powder coated.
Total height including 500 mm to be buried into the
ground. Includes IP54 cover plate 132x38 mm and
terminal block in double insulation.
809902
cylindrical pole 4,5 meters
to be buried
4.500
809903
cylindrical pole 5,5 meters
to be buried
5.500
809909
Top cap for pole diam. 76 mm.
POLES WITH BASE-PLATE
code
article
h. mm.
description
809904
cylindrical pole 3 meters
with base-plate
3.000
Cylindrical pole made in steel S235JR (UNI EN 10219)
hot galvanized (UNI EN 1461), diameter 76 mm, thickness
4 mm.
Phospho-chromatised and polyester powder coated.
With base plate dim. 250x250 mm, thickness 10 mm
Includes IP54 cover plate 132x38 mm
and terminal block in double insulation.
809905
cylindrical pole 4 meters
with base-plate
4.000
809906
cylindrical pole 5 meters
with base-plate
5.000
809907
anchorage unit for base-plate
Base plate dim. 250x250 mm, thickness 3 mm,
made in galvanized steel complete of nr. 4 anchorage
threaded bolts
809909
Top cap for pole diam. 76 mm.
3000
4000
5000
806011
DOUBLE ZEUS POLE MAXI SYMM
2 X 42 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
mid-power led
110°
2 x 3.900
92.86
4000°K neutral-white
mid-power led
110°
2 x 3.940
93.80
POLES & ACCESSORIES
806012
DOUBLE ZEUS POLE MAXI ASYMM
2 X 42 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
mid-power led
110°x70°
2 x 2.995
71.31
4000°K neutral-white
mid-power led
110°x70°
2 x 3.010
71.67
