628 | puk.it

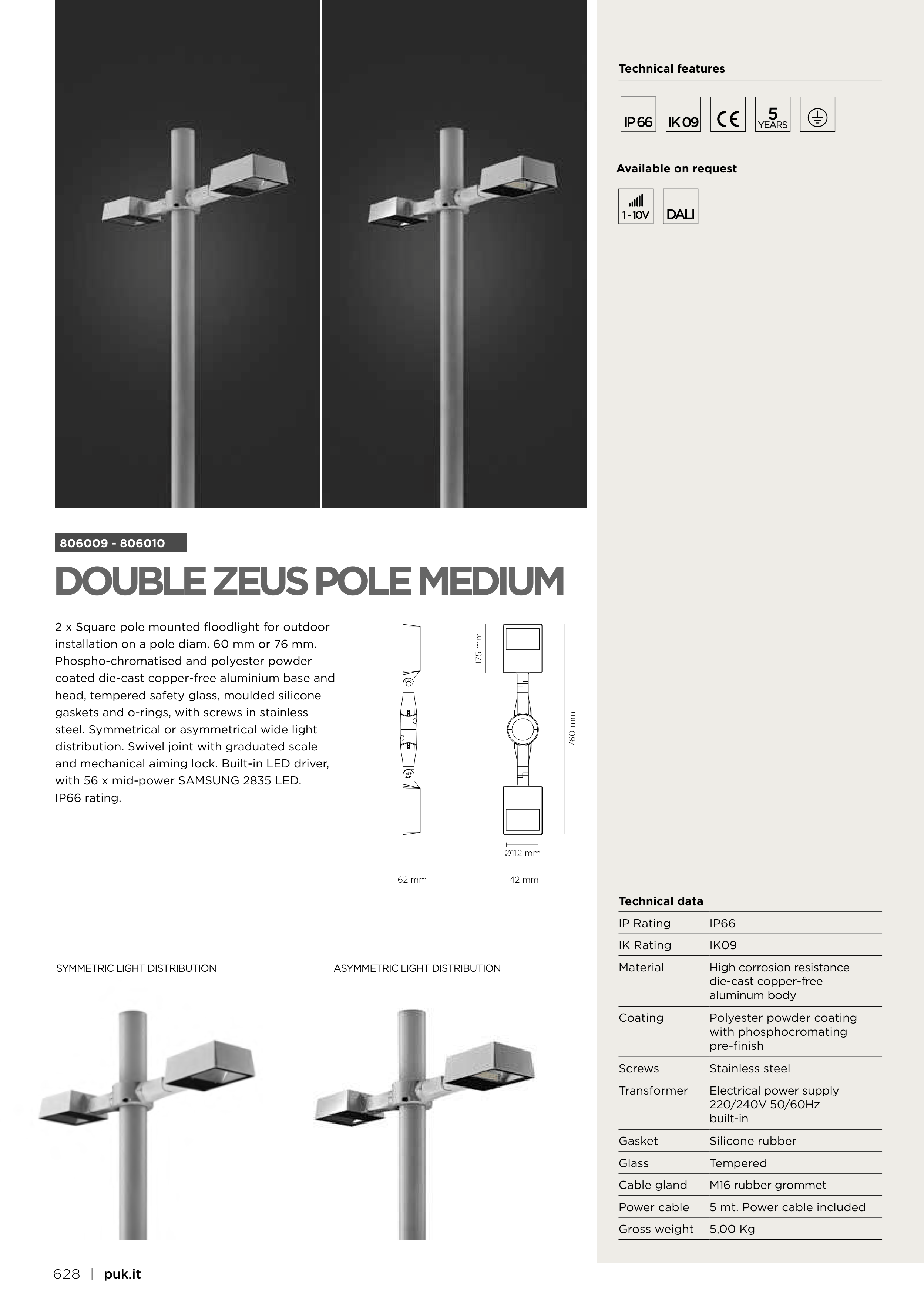

2 x Square pole mounted floodlight for outdoor
installation on a pole diam. 60 mm or 76 mm.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone
gaskets and o-rings, with screws in stainless
steel. Symmetrical or asymmetrical wide light
distribution. Swivel joint with graduated scale
and mechanical aiming lock. Built-in LED driver,
with 56 x mid-power SAMSUNG 2835 LED.
IP66 rating.
DOUBLE ZEUS POLE MEDIUM
806009 - 806010
Technical features
Technical data
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
5 mt. Power cable included
Gross weight
5,00 Kg
5
SYMMETRIC LIGHT DISTRIBUTION
ASYMMETRIC LIGHT DISTRIBUTION
142 mm
760 mm
62 mm
Ø112 mm
175 mm
DALI
1 - 10V
Available on request
