626 | puk.it

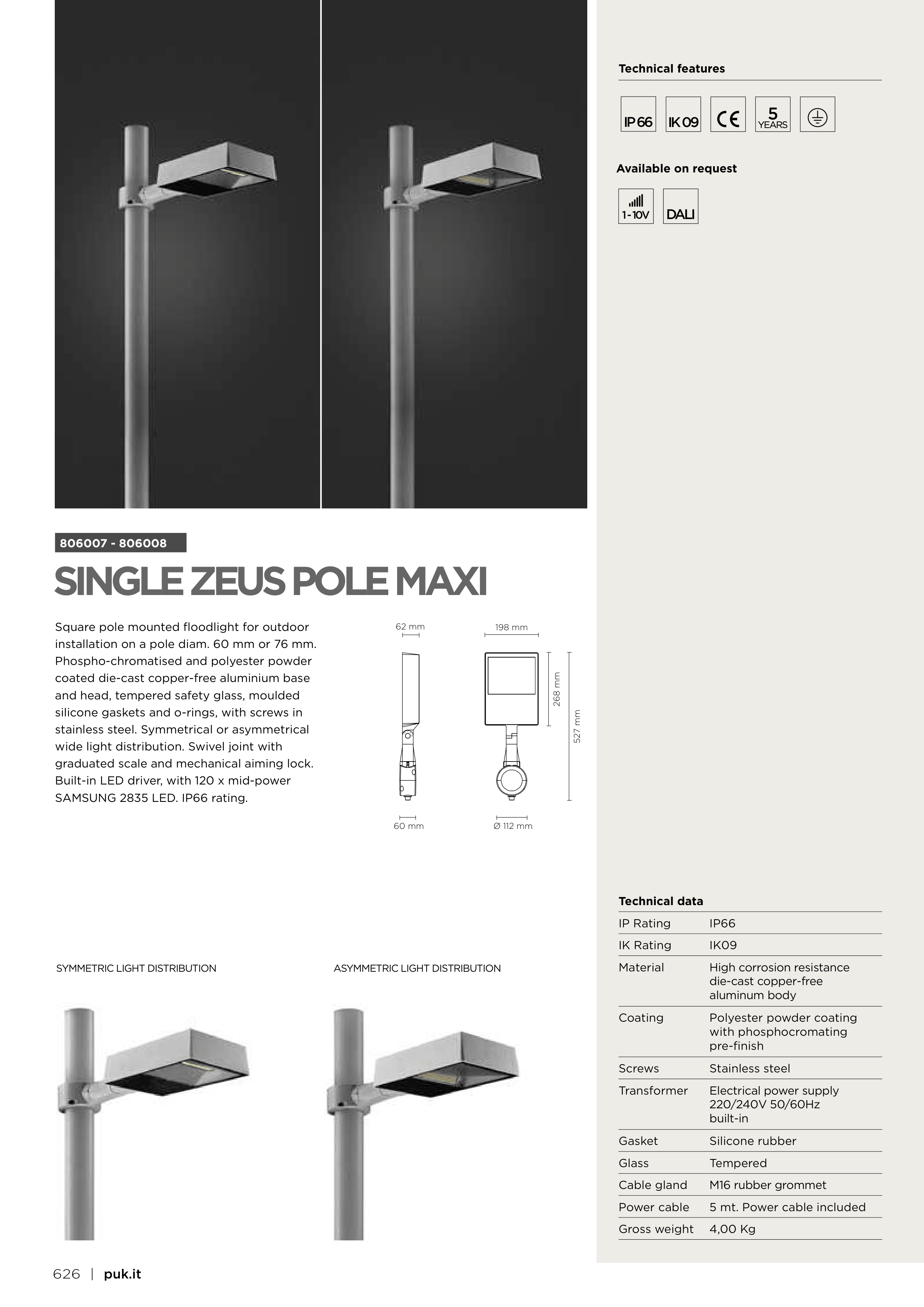

Square pole mounted floodlight for outdoor
installation on a pole diam. 60 mm or 76 mm.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded
silicone gaskets and o-rings, with screws in
stainless steel. Symmetrical or asymmetrical
wide light distribution. Swivel joint with
graduated scale and mechanical aiming lock.
Built-in LED driver, with 120 x mid-power
SAMSUNG 2835 LED. IP66 rating.
SINGLE ZEUS POLE MAXI
806007 - 806008
Technical features
Technical data
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
5 mt. Power cable included
Gross weight
4,00 Kg
5
SYMMETRIC LIGHT DISTRIBUTION
ASYMMETRIC LIGHT DISTRIBUTION
198 mm
Ø 112 mm
527 mm
62 mm
268 mm
60 mm
DALI
1 - 10V
Available on request
