58 | puk.it
Square floodlight for outdoor installation on a
façade/wall. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium
body, tempered safety glass, moulded silicone
gasket and stainless steel screws.
Built-in LED driver, DMX driver integrated;
with 6 x CREE “XML” RGBW LED. IP65 rating.

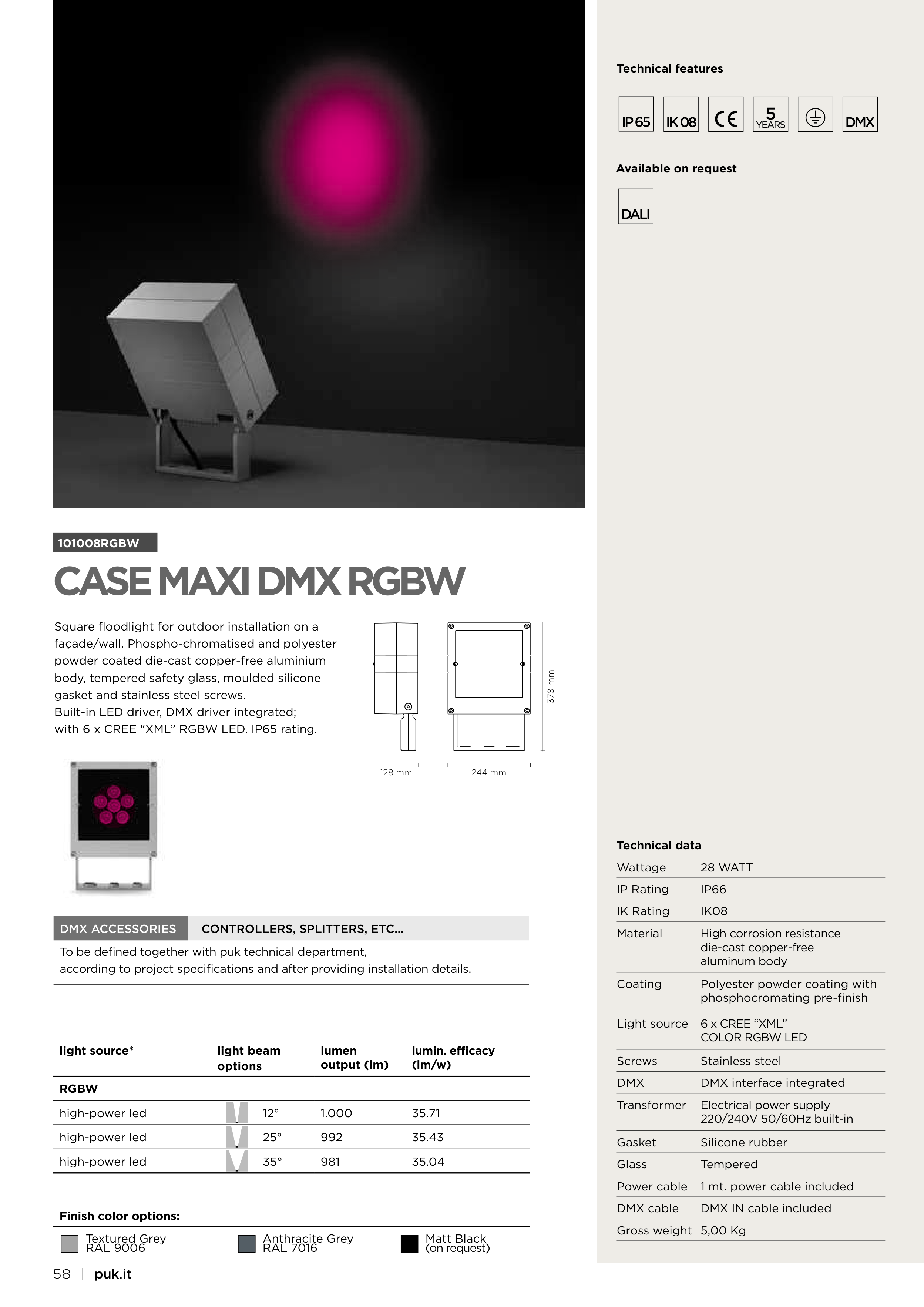

CASE MAXI DMX RGBW
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Finish color options:
Matt Black
(on request)
101008RGBW
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
RGBW
high-power led
12°
1.000
35.71
high-power led
25°
992
35.43
high-power led
35°
981
35.04
DMX ACCESSORIES
CONTROLLERS, SPLITTERS, ETC…
To be defined together with puk technical department,
according to project specifications and after providing installation details.
Technical data
Wattage
28 WATT
IP Rating
IP66
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
6 x CREE “XML”
COLOR RGBW LED
Screws
Stainless steel
DMX
DMX interface integrated
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
DMX cable
DMX IN cable included
Gross weight 5,00 Kg
Technical features
5
DMX
244 mm
128 mm
378 mm
DALI
Available on request
