Technical data
Wattage
42 WATT
IP Rating
IP66
IK Rating
IK09
Material
Phospho-chromatised and
polyester powder coated
extruded copper-free
aluminium
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x COB CREE “CXB 2540” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
5,00 Kg
Technical features
Surface mounted luminaire for outdoor ceiling installation.
Phospho-chromatised and polyester powder coated
extruded copper-free aluminium body, tempered safety
glass, moulded silicone gaskets, with screws in stainless
steel. Built-in LED driver, with 1 COB CREE “CXB 2540”
LED. IP66 rating.

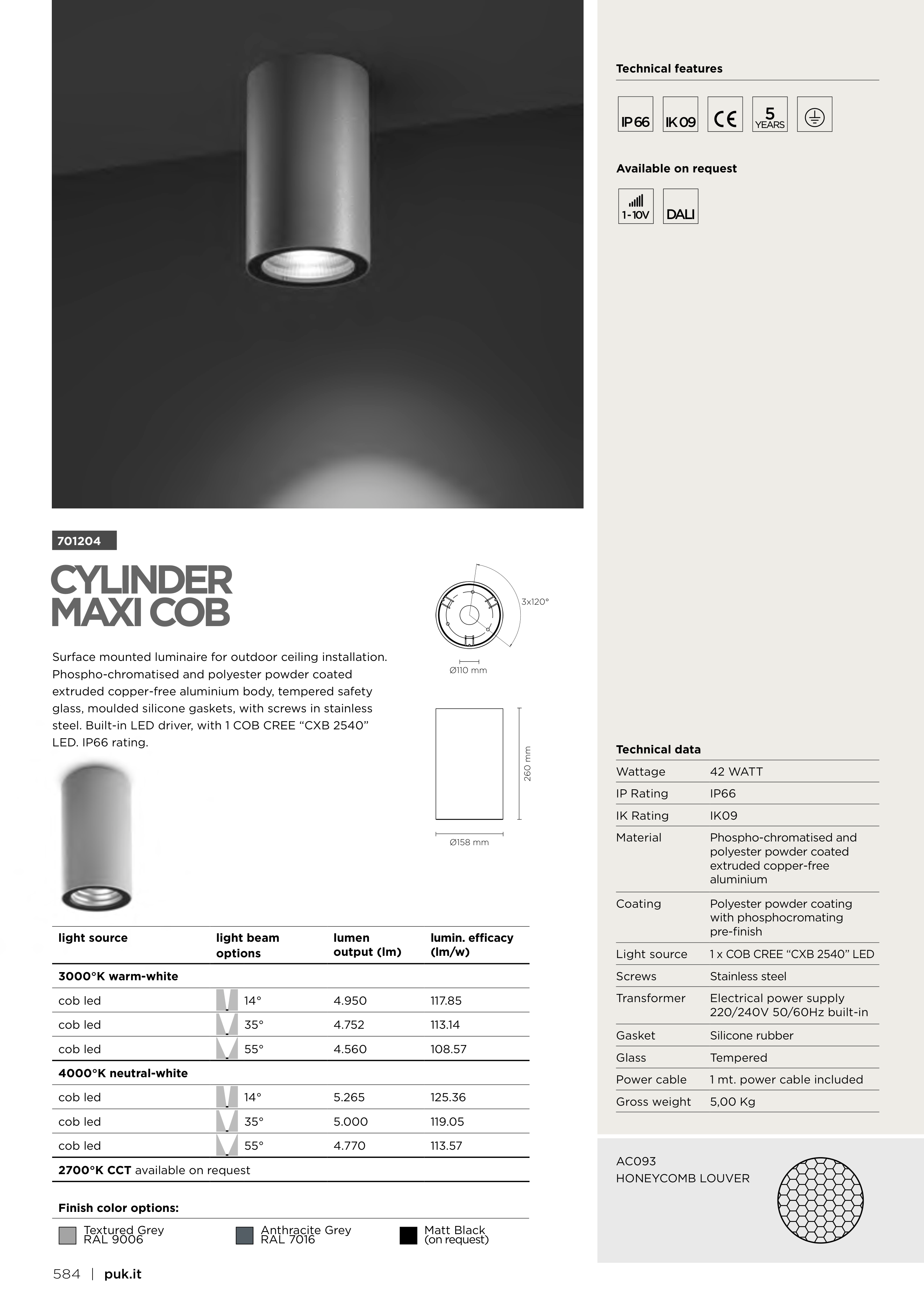

701204
CYLINDER
MAXI COB
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
14°
4.950
117.85
cob led
35°
4.752
113.14
cob led
55°
4.560
108.57
4000°K neutral-white
cob led
14°
5.265
125.36
cob led
35°
5.000
119.05
cob led
55°
4.770
113.57
2700°K CCT available on request
AC093
HONEYCOMB LOUVER
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
5
Ø158 mm
260 mm
3x120°
Ø110 mm
DALI
1 - 10V
Available on request
