576 | puk.it
Technical data
Wattage
38 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
6 x CREE “XHP35” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
4,50 Kg
Technical features
Surface mounted luminaire for outdoor ceiling
installation. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded silicone
gaskets, with screws in stainless steel. Built-in LED
driver, with 6 x CREE “XHP35” LED. IP66 rating.

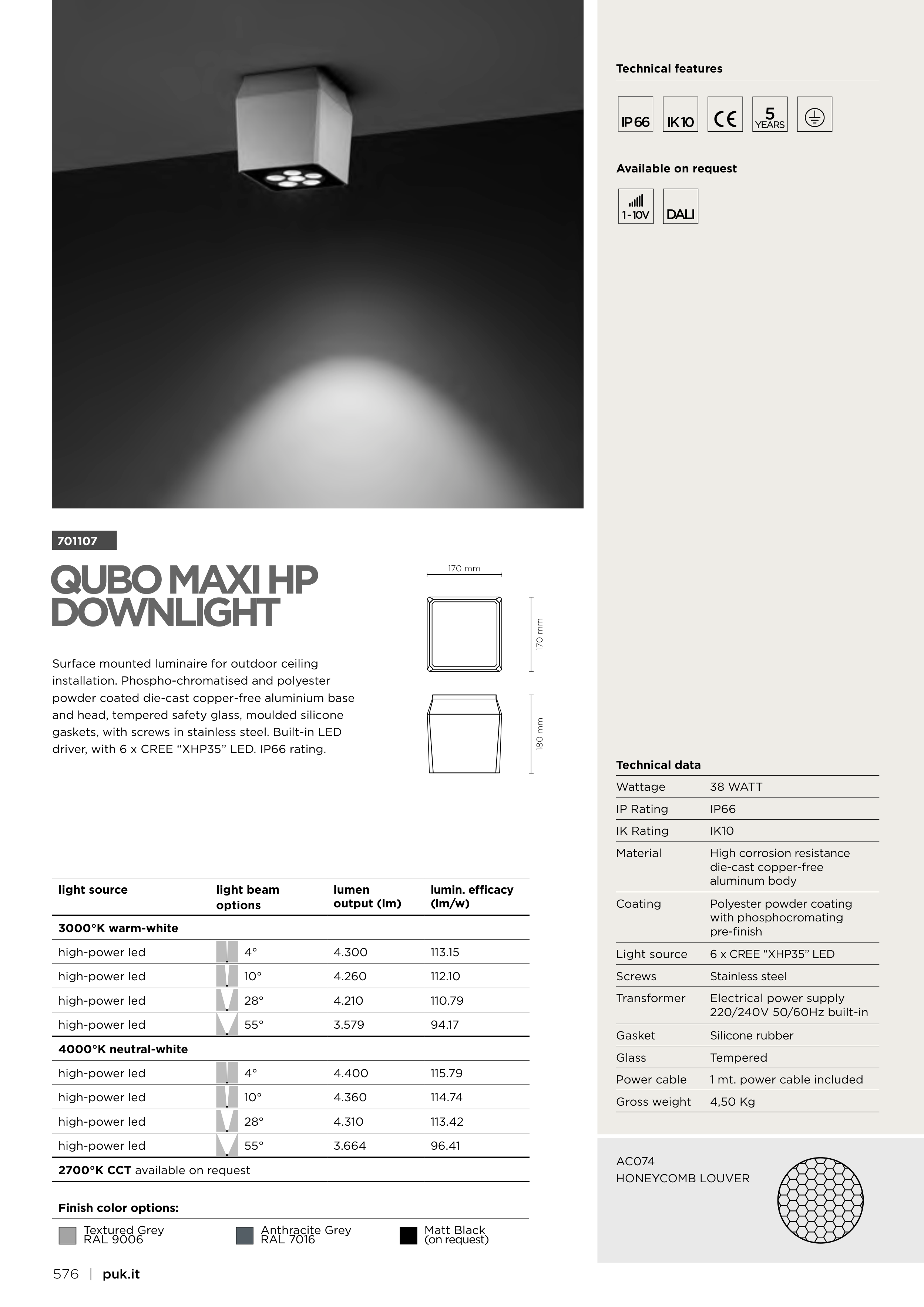

701107
QUBO MAXI HP
DOWNLIGHT
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
4.300
113.15
high-power led
10°
4.260
112.10
high-power led
28°
4.210
110.79
high-power led
55°
3.579
94.17
4000°K neutral-white
high-power led
4°
4.400
115.79
high-power led
10°
4.360
114.74
high-power led
28°
4.310
113.42
high-power led
55°
3.664
96.41
2700°K CCT available on request
AC074
HONEYCOMB LOUVER
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
5
170 mm
180 mm
170 mm
DALI
1 - 10V
Available on request
