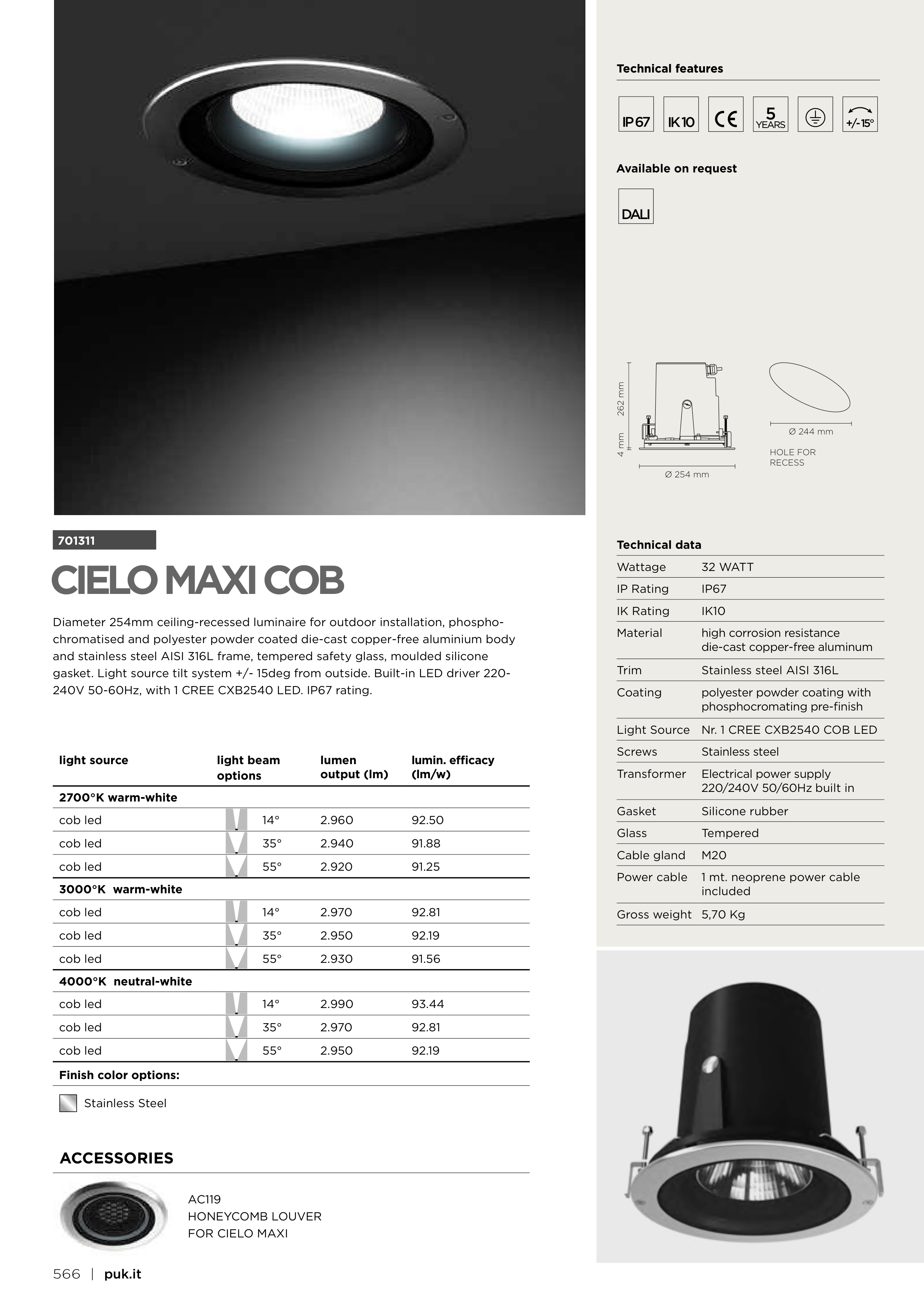

CIELO MAXI COB
701311
Diameter 254mm ceiling-recessed luminaire for outdoor installation, phospho-
chromatised and polyester powder coated die-cast copper-free aluminium body
and stainless steel AISI 316L frame, tempered safety glass, moulded silicone
gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver 220-
240V 50-60Hz, with 1 CREE CXB2540 LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
cob led
14°
2.960
92.50
cob led
35°
2.940
91.88
cob led
55°
2.920
91.25
3000°K warm-white
cob led
14°
2.970
92.81
cob led
35°
2.950
92.19
cob led
55°
2.930
91.56
4000°K neutral-white
cob led
14°
2.990
93.44
cob led
35°
2.970
92.81
cob led
55°
2.950
92.19
Technical features
Technical data
Wattage
32 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB2540 COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
5,70 Kg
Technical features
5
+/- 15°
AC119
HONEYCOMB LOUVER
FOR CIELO MAXI
ACCESSORIES
DALI
Available on request
Stainless Steel
Finish color options:
Ø 244 mm
Ø 254 mm
4 mm
262 mm
HOLE FOR
RECESS
